Model NO.
PM3006FSN V8
Quantity:
Product Overview

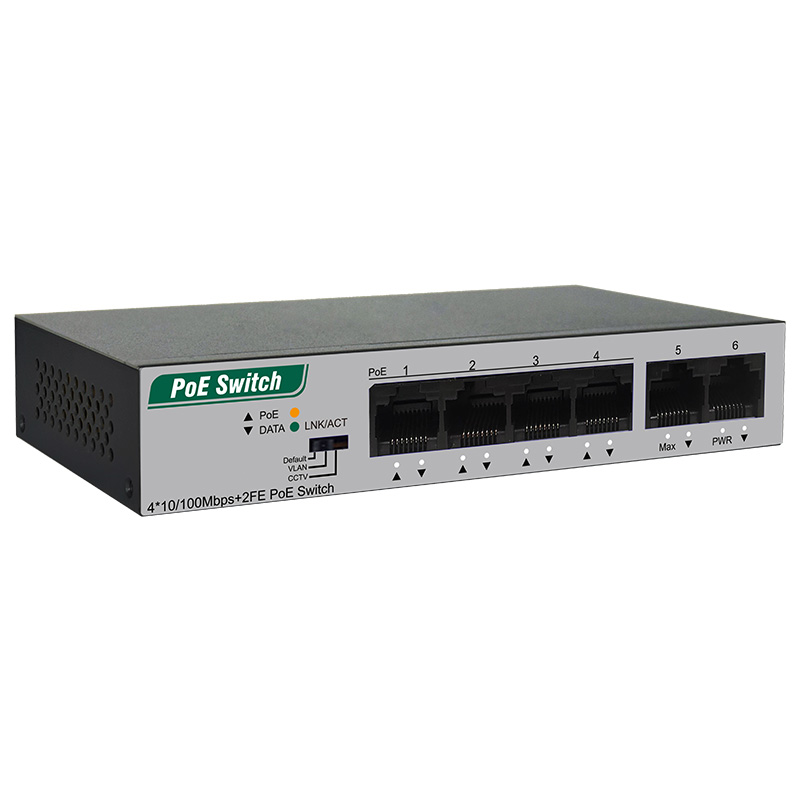

PM3006FSN V8 is Unipoe independent research Ethernet Unmanaged PoE switch, with 6*100Mbps adaptive RJ45 Ports. Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. Ports 1-4 have PoE power supply function, support IEEE802.3af/at standard, can be used as Ethernet power supply equipment, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable, using store and forward technology, combined with dynamic Memory allocation ensures that bandwidth is allocated to each port effectively.

PM3006FSN V8 supports VLAN or CCTV function, CCTV function Allows users to choose to turn on or off the CCTV function according to different application environments. The VLAN function can improve network security and resist network storms, is easy to manage and maintain, and meet the networking access requirements of enterprises, communities, hotels, office networks and campus networks



Features
  •  Complies with IEEE802.3af/at Standard, compatible with IEEE802.3af by electrical equipment (PD);
  •  Supports PoE Power up to 32W for each PoE port
  •  Auto detect power device; will not burned non-standard PoE device or normal PoE switch.
  •  Supports port power supply prioritization, guarantee the continuous power supply of key nodes
  •  One key CCTV mode, Remote power and Data feeding up to 250m;
  •  Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  •  Line-speed forwarding, intelligent identification
  •  Supports storage – and- forward for Data exchange;
  •  Internal power supply with small case.
  •  Support PD Alive function(the switch port is disconnected will automatically connected);
  •  Power supply, PoE module and switch PCBA Three in one.

Product Specifications
Hardware Specification
ModelPM3006FSN V8
PoE standard IEEE802.3af/at
Interface6*10/100Mbps RJ45 port
key functionVLAN&CCTV
PoE port1-4 Port
PoE Total60W40W (Optional)
Power supply65W45W (Optional)
Input PowerAC:200-240V~ 50/60Hz 1.5A MaxAC:100-240V~ 50/60Hz 1.5A Max (Optional)
RJ45 PoE power supplyMode A  Anode1 / 2 Cathode 3 / 6
PoE output-portMax 32W
IndicatorPWR(Green),  LNK/ACT(Green),  PoE(Orange)
Network media10BASE-T:    UTP category 3,4,5 cable(≤100m)
100BASE-TX:  UTP category 5, 5e cable(≤100m)
MAC Address Table1K,Automatic study, automatic updates
Jumbo frame1536Bytes
Packet buffer448K bit
Transfer Modestore-and-forward
Packet forwarding rate0.89Mpps
Bandwidth1.2Gbps
Device Dimension140*76 *27.7mm
Machine weight<1kg
Input VoltageDC:54.0V/1.15A
Operating Temperature0°C ~ +40 °C
Storage Temperature-40 °C ~ +70 °C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionCommon mode ±6KV, differential mode ±4KV
MTBF>50000 hour
Electrostatic standardContact ±6KV, Air ±8KV



Ordering information
Modelproduct information
PM3006FSN V84*10/100Mbps+2FE Ethernet PoE Switch
