Product Overview

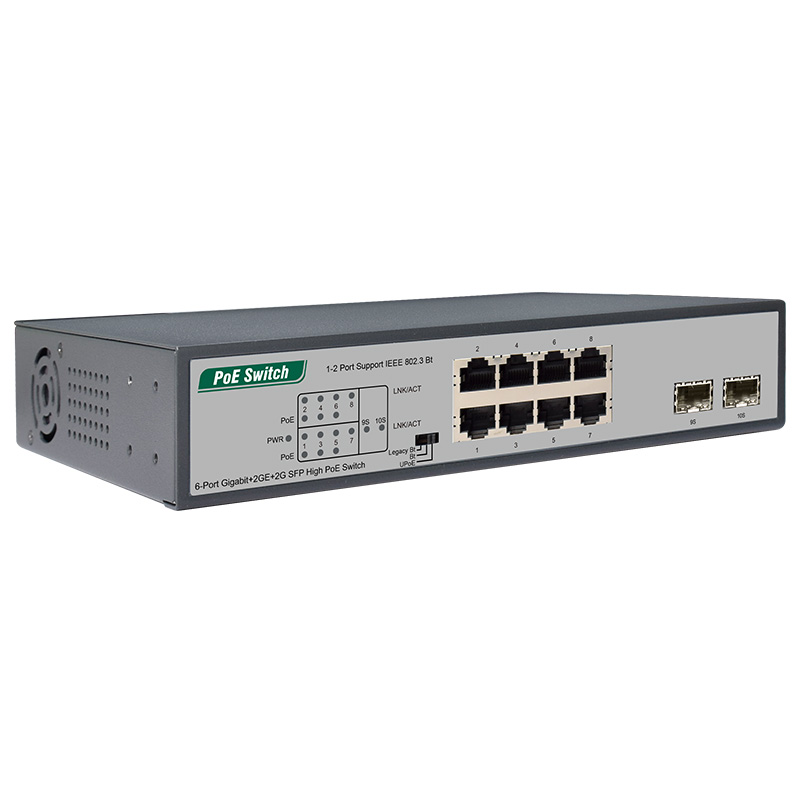

High Power PoE Switch PM9010GSF V1 is 8-Port 10/100/1000 Mbps auto-negotiation RJ45 Port and 2-port gigabit SFP Slots.port1-6 is PSE port, This conforms to IEEE802.3af/at/bt standard. and each RJ45 port supports MDI/MDIX automatic flip and wire speed forwarding functions. Among them, port1-2 support IEEE802.3bt standard output(90W.Max). This switch has Legacy Bt, bt, UPoE three levels can be toggle switch.high-power power supply, which mainly solves the problems of high deployment cost, long construction period, unstable power supply, difficult operation and maintenance management, low safety factor caused by the power supply system that needs to be deployed separately for high-power terminal power supply.It can be widely used in the new and reconstruction scenes of weak current to meet the power supply demand of high-power terminal in monitoring, access control, information release, parking lot, DDC and other systems.
Product Features
- Support IEEE802.3 bt/at standard, compatible with IEEE802.3 af by electrical equipment (PD);
- Single port output power up to 90W；
- Automatic detection of PD equipment;
- Iron case , No fan；
- PoE, main board and power supply are all in one；
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch；
- Panel lights to monitor working state and help fault analysis;
- Support port power supply prioritization, guarantee the continuous power supply of key nodes；
- Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Operating temperature: 0℃~40℃；
Product Specifications
Hardware Specification
Model | PM9010GSF V1 |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3i, IEEE 802.3x, IEEE 802.3af , IEEE 802.3at , IEEE 802.3bt |
Interface | 6*10/100/1000Mbps RJ45 PoE Port (Auto Negotiation/Auto MDI/MDIX) 2x10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX) 2x100/1000Mbps SFP slots |
PoE Standard | IEEE802.3af/at/bt |
PoE Port | 1-6 Port |
Key function | Legacy Bt/Bt/UPoE |
Power supply | 190W |
PoE total power | 180W |

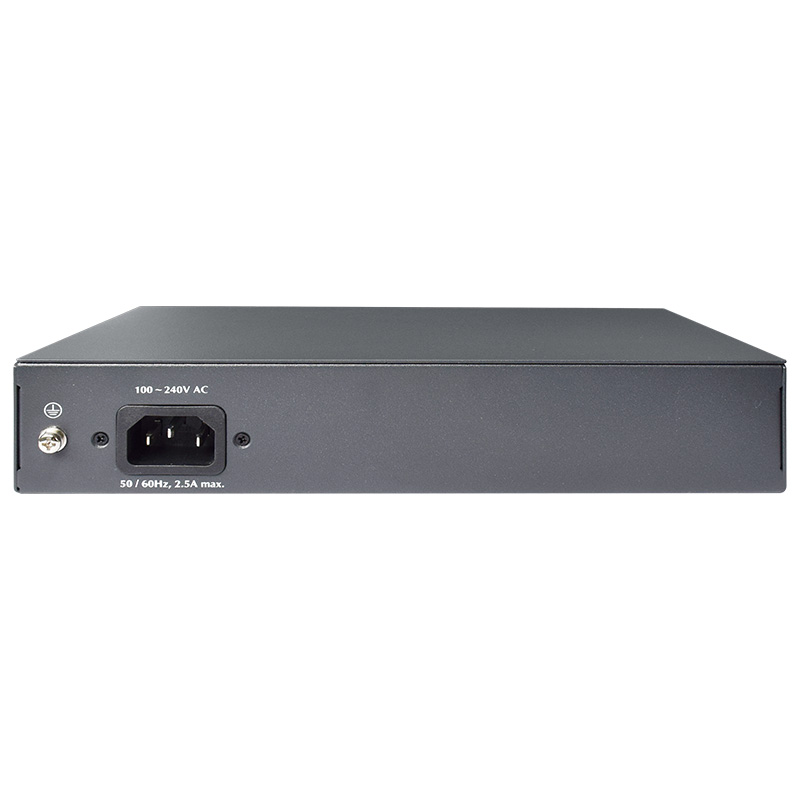

Input Voltage | AC 100-240V 50/60Hz |
PoE output-port | Port1-2 Max 90W；Port3-6 Max 32W |
Transfer Mode | Store-and-forward |
Switching Capacity | 20G |
MAC Address Table | 4K, Auto-learning, Auto-aging |
jumbo frame | 9216 Byte |
Packet buffer | 1.5M bit |
Packet Forward Speed | 13.39 Mpps |
Operating Temperature | 0℃~40℃ |
Storage Temperature | -40℃~70℃ |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Dimensions(L*W*H) | 220*150*44mm |
Fan Quantity | 1*Fan |
Machine weight | <1kg |
LED Indicator | PWR(Orange), LNK/ACT (Green), PoE(Orange) |
Network media | 10BASE-T: UTP category 3, 4, 5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-T: UTP category 5e, 5 cable(≤100m) |
Surge Protection | Differential mode ±4KV Common mode ±6KV |
EEE | IEEE 802.3az |
MTBF | >50000 hours |
Electrostatic standard | Contact ±6KV, air±8KV |
Ordering information
Model | Product information |
PM9010GSF V1 | 6-Port Gigabit+2GE+2G SFP High PoE Switch (Support 802.3 af/at/bt standard) |
