The PM3010FSNR V2 has 8*10/100Mbps adaptive RJ45 ports and 2*10/100/1000Mbps RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. Ports 1-8 have PoE power supply function, support IEEE 802.3af/at standard, supports up to 800m long-distance transmission (used with long-distance equipment), and can be used as Power over Ethernet device, which can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable. Uses store-and-forward technology, combined with dynamic memory allocation, to ensure that bandwidth is efficiently allocated to each port.
The PM3010FSNR V2 provides one-click VLAN and CCTV functions. Users can enable or disable the CCTV functions according to different application environments to improve network security and suppress network storms. The PM3010FSNR V2 is easy to manage and maintain and meets the networking and access requirements of enterprises, communities, hotels, office networks, and campus networks.
Features
Support IEEE802.3at/af standard;
Single port output power up to 30W;
100Mbps data transmission and PoE power supply distance up to 300m(Typical);
10Mbps data transmission and PoE power supply distance up to 800m;
Automatic detection and identification of standard PoE powered devices, intelligent power supply, will not burn non-standard PoE powered devices or ordinary devices;
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
Panel indicators monitor operating status and help with fault analysis;
Wire-speed forwarding, intelligent recognition;
Data exchange using store-and-forward method;
Support PD-ALIVE function;
Support CCTV and VLAN toggle switch online switching;
Vmin is the minimum voltage value of 8 ports under rated load.
The power value is the measured value directly read from the electronic load meter connected to the electronic load meter through the fixture adapter plate.
The speed is the test result matched with our PM3001FPR-W V2.
If 2 PM3010FSNR V2 ports are connected: less than or equal to 460m, the port rate can reach 100Mbps; if more than 460m but less than 800m, the port rate can reach 10Mbps.
Ordering Information
Model
Product Information
PM3010FSNR V2
8FE(PoE)+2GE Long-range PoE Switch (Used with long-range Equipment )
The PM3010FSNR V2 has 8*10/100Mbps adaptive RJ45 ports and 2*10/100/1000Mbps RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. Ports 1-8 have PoE power supply function, support IEEE 802.3af/at standard, supports up to 800m long-distance transmission (used with long-distance equipment), and can be used as Power over Ethernet device, which can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable. Uses store-and-forward technology, combined with dynamic memory allocation, to ensure that bandwidth is efficiently allocated to each port.
The PM3010FSNR V2 provides one-click VLAN and CCTV functions. Users can enable or disable the CCTV functions according to different application environments to improve network security and suppress network storms. The PM3010FSNR V2 is easy to manage and maintain and meets the networking and access requirements of enterprises, communities, hotels, office networks, and campus networks.

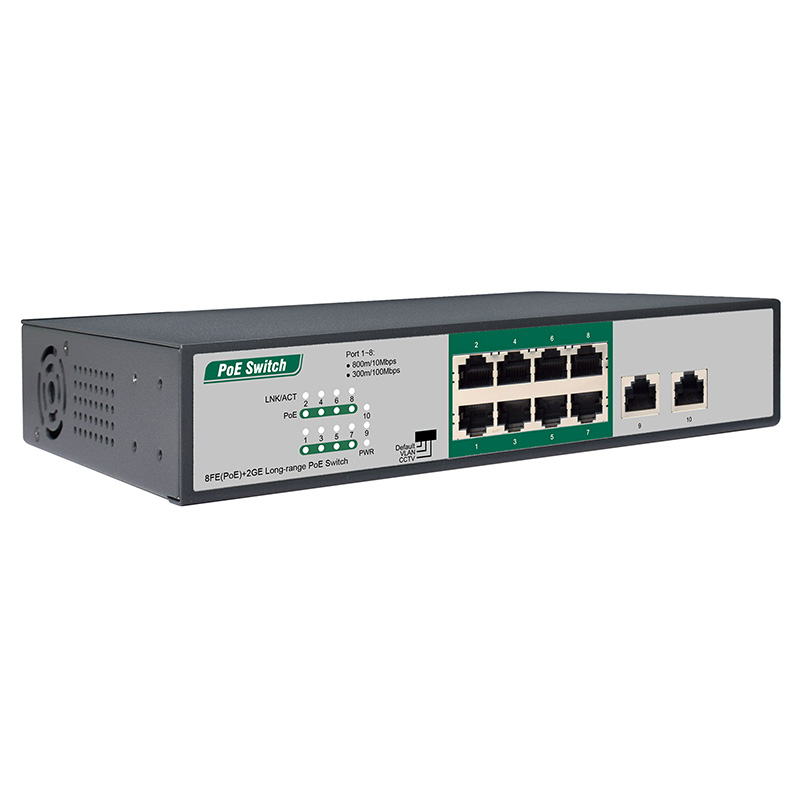

8FE(PoE)+2GE Long-range PoE Switch
PM3010FSNR V2
The PM3010FSNR V2 has 8*10/100Mbps adaptive RJ45 ports and 2*10/100/1000Mbps RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. Ports 1-8 have PoE power supply function, support IEEE 802.3af/at standard, supports up to 800m long-distance transmission (used with long-distance equipment), and can be used as Power over Ethernet device, which can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable. Uses store-and-forward technology, combined with dynamic memory allocation, to ensure that bandwidth is efficiently allocated to each port.
The PM3010FSNR V2 provides one-click VLAN and CCTV functions. Users can enable or disable the CCTV functions according to different application environments to improve network security and suppress network storms. The PM3010FSNR V2 is easy to manage and maintain and meets the networking and access requirements of enterprises, communities, hotels, office networks, and campus networks.
