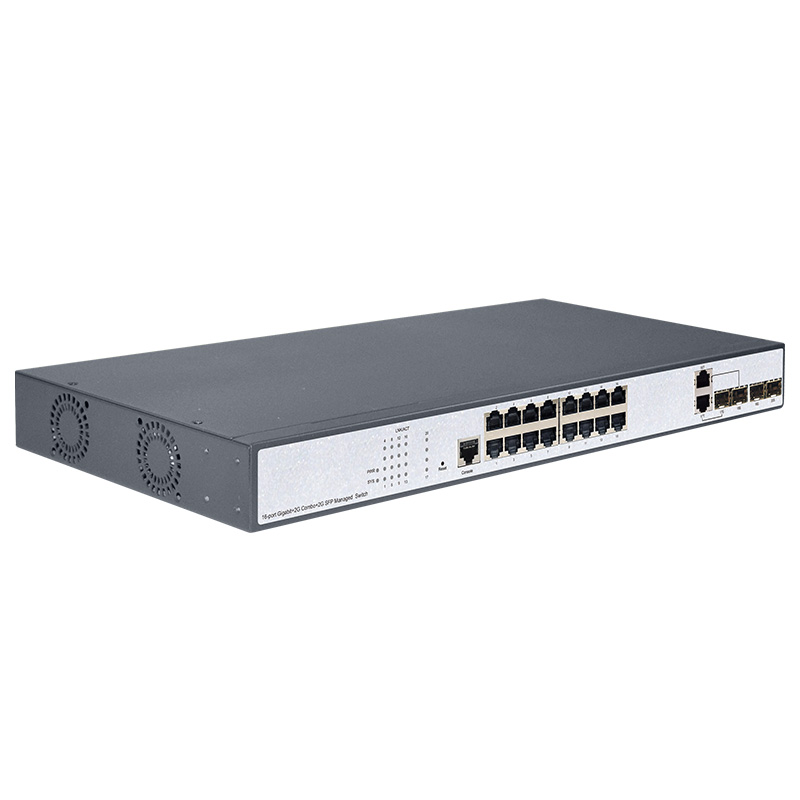

16-Port Gigabit+2G Combo+2G SFP Managed Switch

Model NO.: PM122GM V1

Quantity:

Product Description
Basic Information

Product Overview

The PM122GM V1 is Gigabit Uplink managed switch it have 16*10/100/1000MbpsRJ45 port and 2G Combo With 2*1000 Mbps SFP Slots , Using store-and-forward technology, combined with dynamic memory allocation, to ensure the effective bandwidth allocated to each port, support static routing capabilities, to provide complete security policy, improve the QoS strategy, easy to maintenance management, satisfy the business enterprise, village, hotel, office network and campus network of the network and access requirements.

Product Features

Support RJ45 Auto-MDI/MDIX;
Auto detect power device;
The power supply supports AC and DC output;
Panel lights to monitor working state and help fault analysis;
Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
Double AC redundancy power input;

Product Specifications

Hardware Specifications

Model	PM122GM V1
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad
Interface	1610/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX) 2Gigabit Combo 2*Gigabit SFP Slots 1 Console Port
Indicator	PWR, LNK/ACT, SYS
Network media	10BASE-T: UTP category 3, 4, 5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-TX: UTP category 5e, 5 cable(≤100m) 1000BASE-X: MMF, SMF
MAC Address Table	8K, Auto-learning, Auto-aging
Transfer Mode	Store-and-forward
Packet Forward Speed	29.76Mpps
Packet buffer	4.1M bit
Switching Capacity	40Gbps
Dimensions(LWH)	44020744mm
Fan Quantity	Fanless
Greenenergysaving	IEEE 802.3az

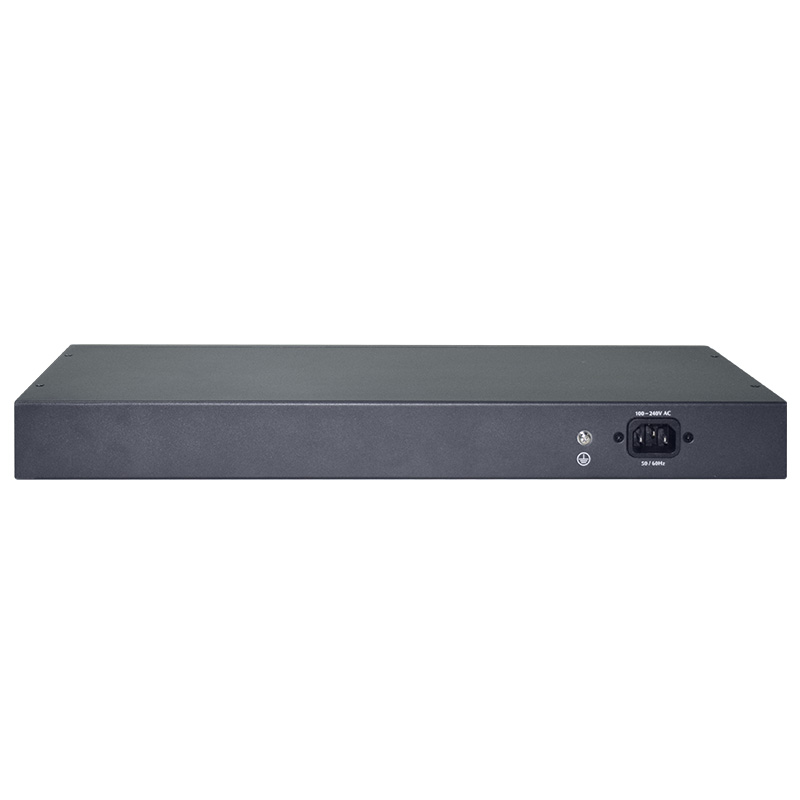

Input Power Supply	100~240V AC, 50/60Hz
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Surge Protection	Different mode±4KV, common mode±6KV
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
MTBF	>50000 hours
Electrostatic standard	Contact 6KV, air 8KV

Software Specifications

L2 Switch Features	Link Aggregation	GE Port Aggregaiton
		Static Aggregation
		Dynamic Aggragation
	Port Features	IEEE 802.3x flow control
		Interface counters
		Storm control
	mac-address table management	Static mac-address management
		Dynamic mac-address management
		Filtering mac-address
	VLAN	Port-based VLAN
	Mirror	Port Mirroring
	IEEE802.1w RSTP	STP
	IEEE802.1w RSTP	RSTP
		MSTP
	G.8032	Major ring
	G.8032	Sub ring
Multicast Features	IGMP snooping	IGMP V1, V2, V3
Multicast Features	IGMP snooping	IGMP snooping
ACL and QoS	ACL	IP Standard ACL
		MAC extend ACL
		IP extend ACL
	QoS	QoS Class, Remarking
		Support SP, WRR queue scheduling
		Ingress Port-based Rate-limit
		Egress Port-based Rate-limit
Management Features	SNMP	Supporting version(SNMPV2C)
	Web management	Web management
	Web management	Support HTTP V1.1
	Firmware Upgrade	Firmware Upgrade
	Syslog/Debug	Syslog/Debug
Application Protocol Features	DHCP Snooping	Dhcp snooping trust port
	Telnet	Telnet Server
	TFTP	TFTP Client
Security Features	User management	support password protection
