The PoE Injector PM9501TIN V1 fully complies with IEEE 802.3af/at/bt standard, and can work with all IEEE 802.3af /at /bt PoE compliant PD (Powered Devices) or PoE Receiver Adapters or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
This Injector has Legacy bt, bt, UPoE three levels can be toggle switch.high-power power supply, which mainly solves the problems of high deployment cost, long construction period, unstable power supply, difficult operation and maintenance management, low safety factor caused by the power supply system that needs to be deployed separately for high-power terminal power supply.It can be widely used in the new and reconstruction scenes of weak current to meet the power supply demand of high-power terminal in monitoring, access control, information release, parking lot, DDC and other systems.
- Complies with IEEE802.3af/at/bt Standard;
- Use 4 pairs of power supply, and output power more;
- Auto detect power device;
- Support PoE power up to 95W ;
- Remote power and Data feeding up to 100m;
- Gigabit Internet port;
- built-in Power, Plug-and-play, requires no configuration;
- Intelligent protection and power supply;
- Working temperature: 0 ℃ to 40 ℃;
- Small iron case design;
- Up to 4 installation methods;
- This switch has Legacy bt, bt, UPoE three levels can be toggle switch;
Data in: 1x10/100/1000/10000Mbps RJ45 Port
PoE Out: 1x10/100/1000/10000Mbps RJ45 Port
PSE Power on RJ-45
PoE Power Output
54V DC, 95W Max
Input Power Supply
AC 100-240V 50/60Hz
10%~90% RH non-condensing
5%~90% RH non-condensing
172 *100*41 mm
PWR(Green) , UPoE(Green), bt(Green), Legacy bt (Orange), PoE Usage(90%, 60%, 30%)(Green)
10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m)
1000BASE-T: UTP category 5e,6 cable(≤100m)
10000BASE-T: UTP category 6,6e cable(≤100m)
Ethernet: Difference Mode: ±6KV, Common mode: ±6KV
Power: Difference Mode: ±4KV, Common mode: ±6KV
Contact 6KV,air 8KV

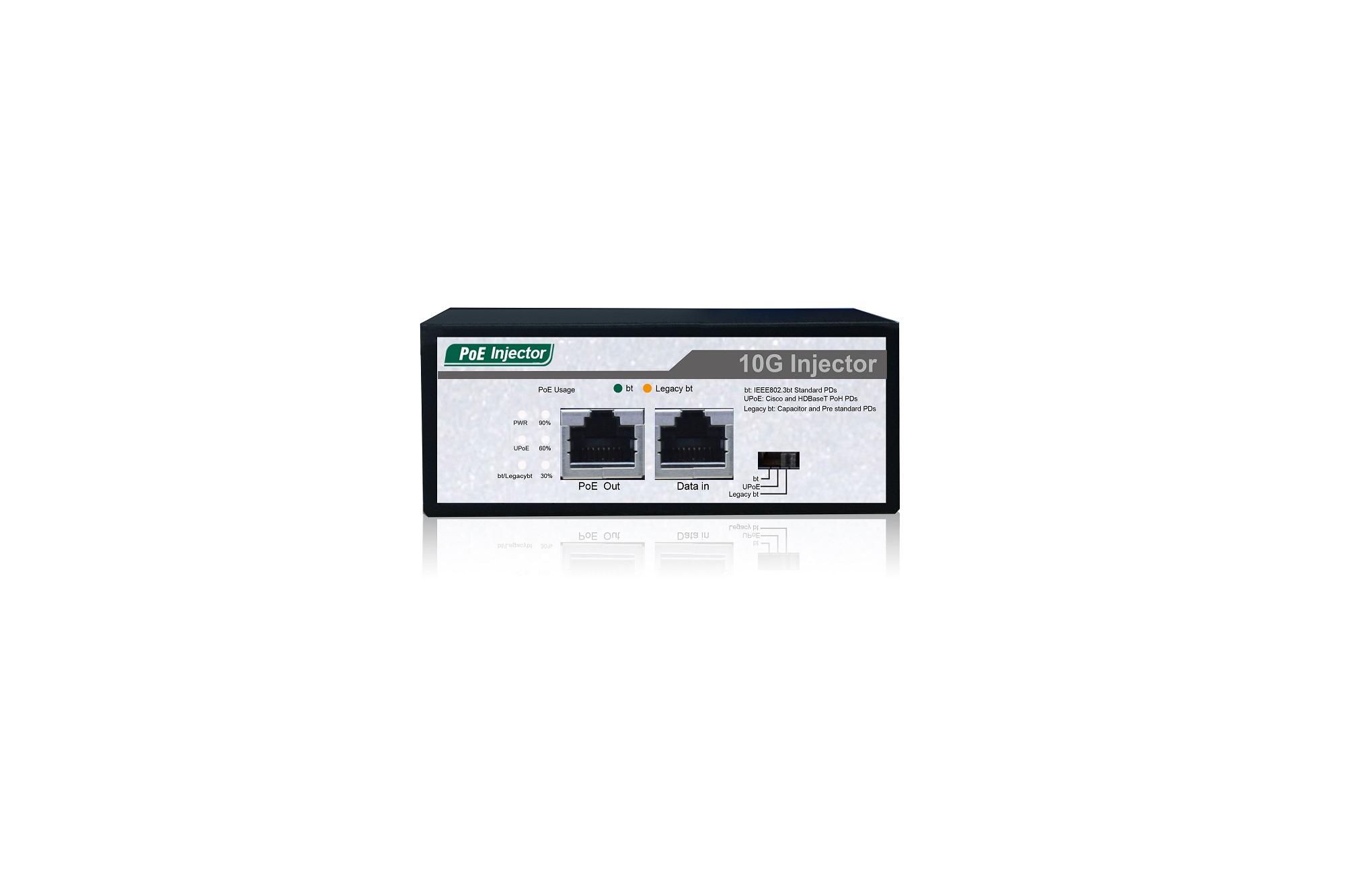

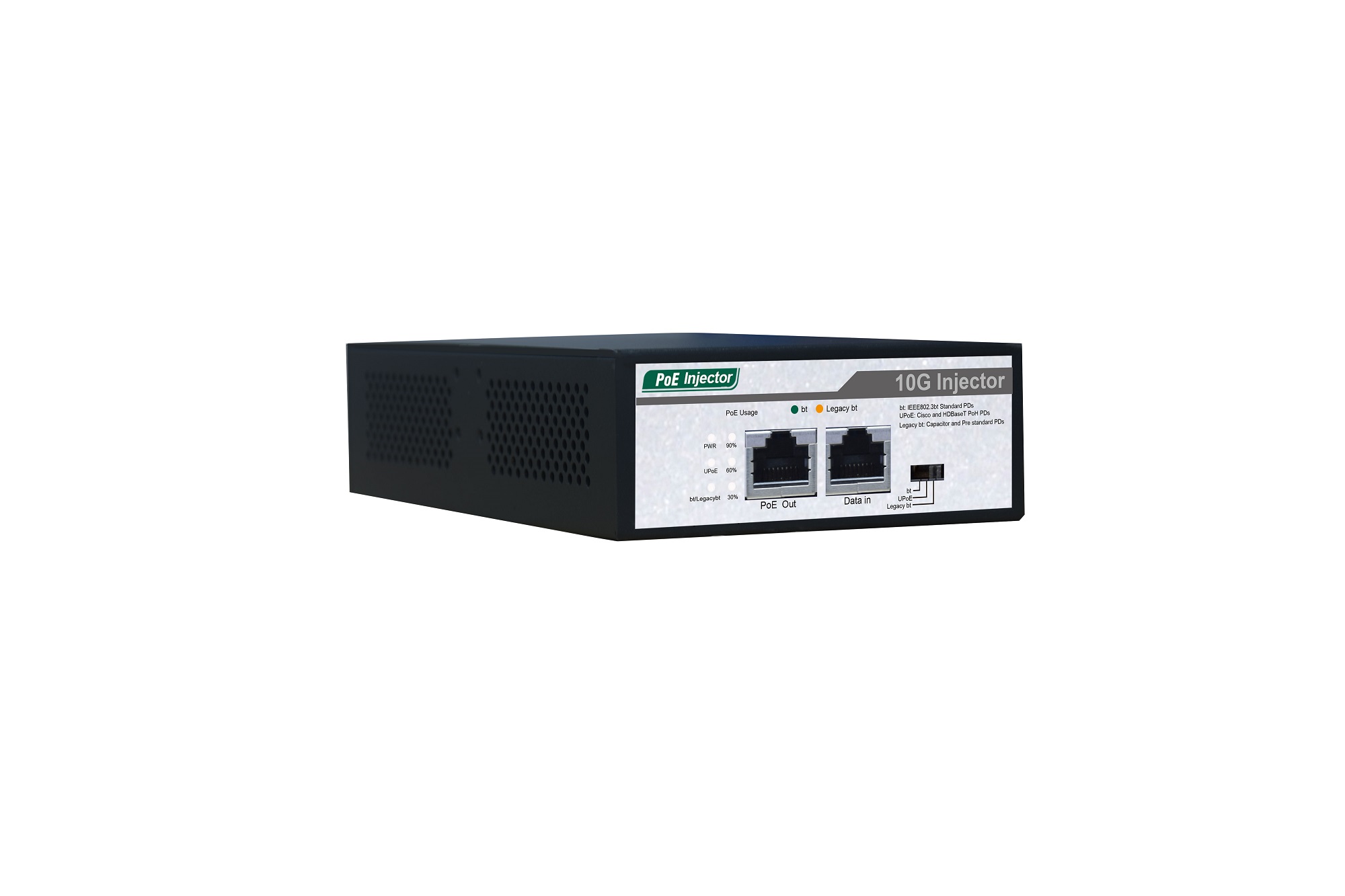

The front panel:
"PoE out"for the PSE output port, the maximum output power of 95W,"Date in"as the data link port.
Intelligent display of PoE power supply
When using the PoE power supply to connect the PD equipment, you should wait patiently for about 10S.
When toggle the DIP switch to bt mode for power supply. the"bt/ Legacy bt"light will be green , When toggle the DIP switch to Legacy bt mode for power supply, the"bt/ Legacy bt"light will be Orange, When toggle the DIP switch to UPoE mode for power supply, the"UPoE"light will be green.
Through the panel on"PoE Usage"green lights, the user can understand the real-time status of the PoE output PM9501TIN V1, when the output power reaches 30%-50%, 30% green LED lights, when the output power reaches 60%-80%,"30% to 60%"green LED lights. When the output power is up to 95%, PoE Usage the indicating lamp will light green.
The machine already comes with lightning protection mechanism. You can also ground the machine through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
95W 10G PoE Injector
