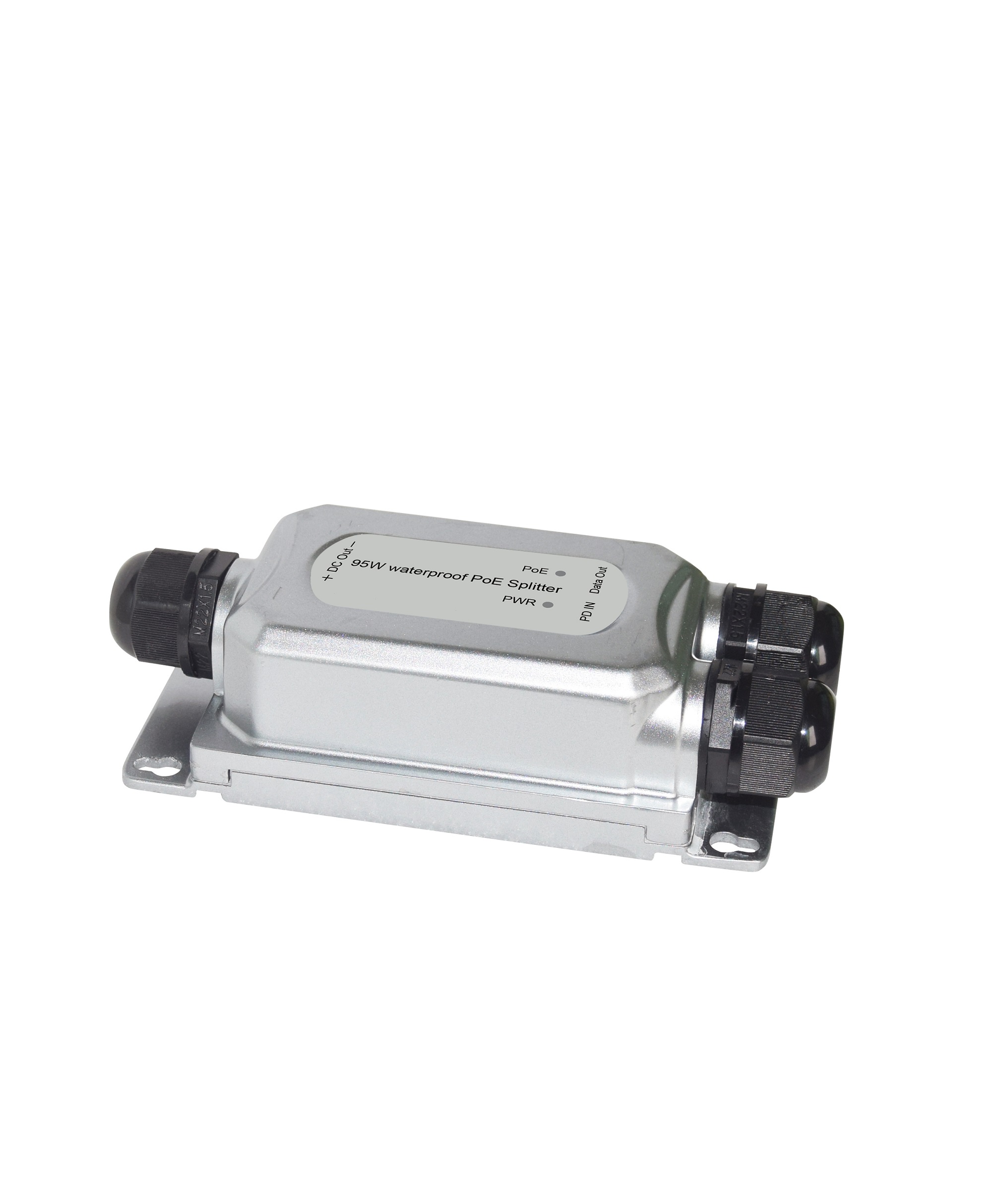

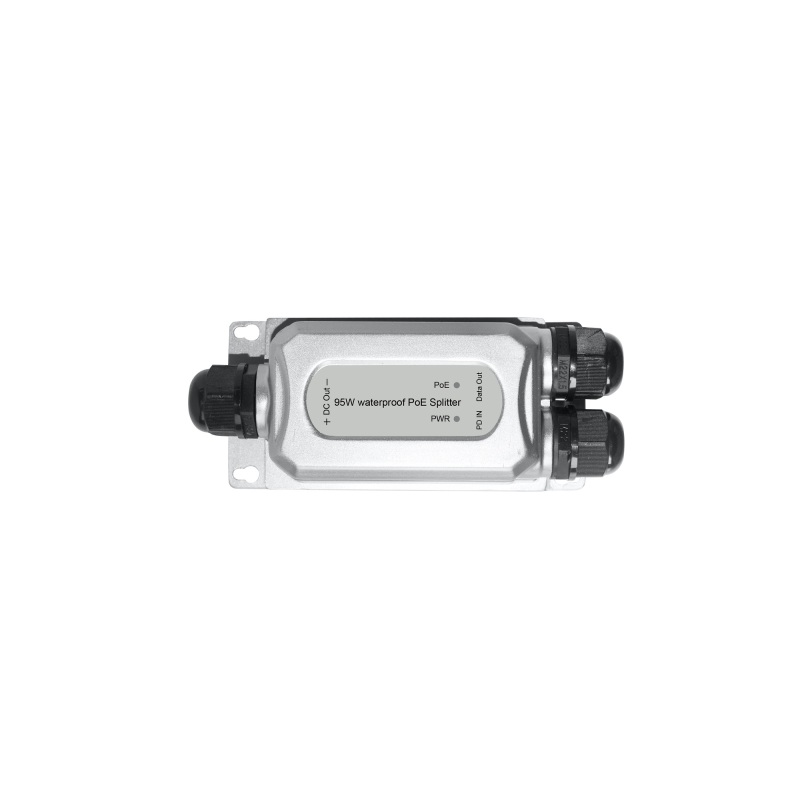

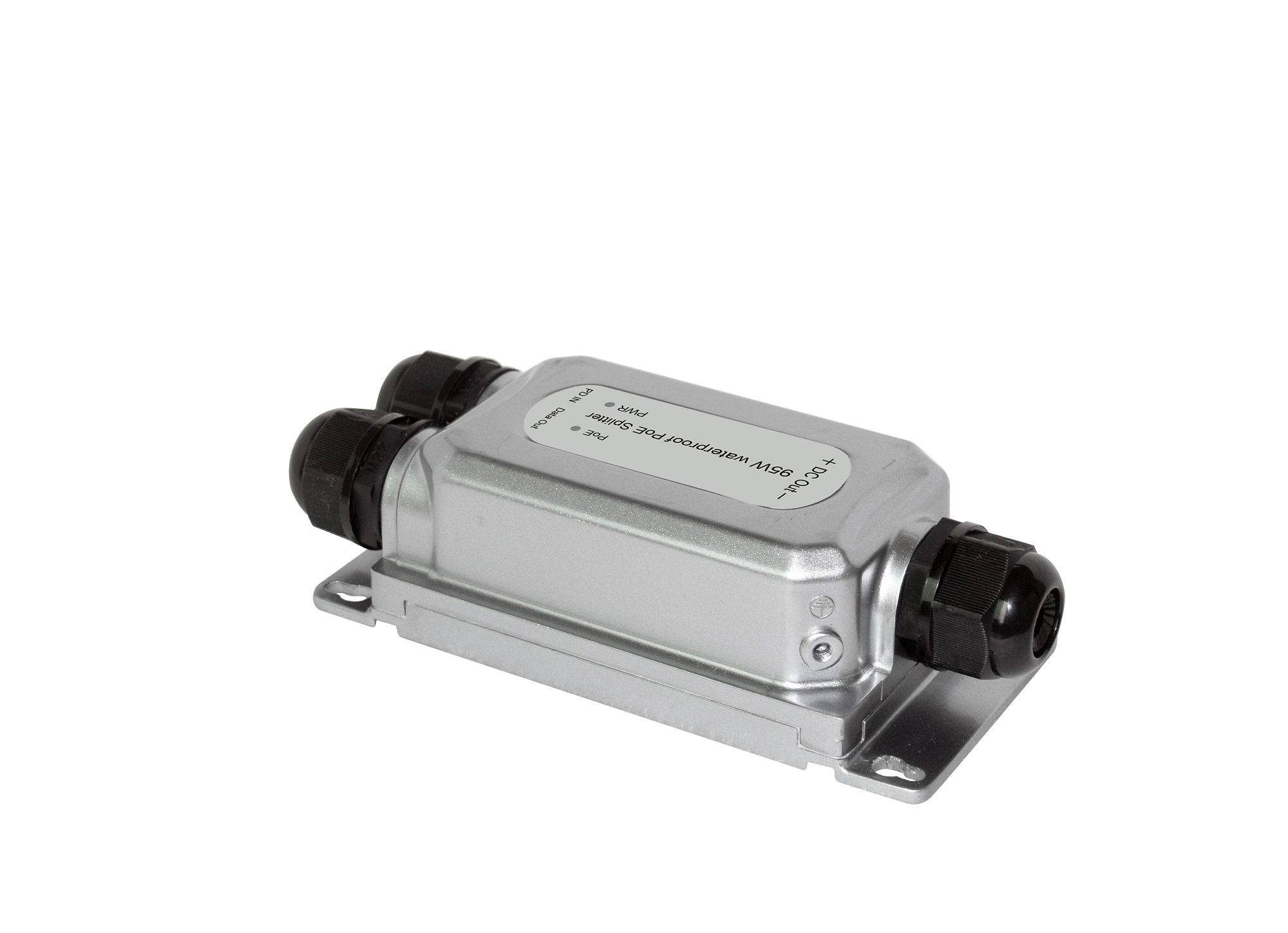

Product Overview
The PM9501GSP-W V1 PoE Splitters will work with any Power Sourcing Equipment (PSE) that also supports the 802.3at/bt standards.PoE (Power over Ethernet) technology allows the existing Ethernet infrastructure to transmit electrical power, along with data, to remote IP endpoints over the Ethernet cables, which can greatly save the cost of the external power cables. Your network can benefit from PoE technology for it will ensure the normal working status of your network while keep the existing Ethernet infrastructure secure.
Product Features
- 2* 10/100/1000Mbps RJ45 Port；
- 1 DC power output interface；
- Support IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at , IEEE802.3bt Standards；
- PD voltage input range 44~56V, power 95W；
- Data and power carried over the same cable；
- Support Plug-and-play for the devices without any configuration；
Product Specifications
Model | PM9501GSP-W V1 |
interface | 1 x 10/100/1000T RJ45 with 802.3at/bt PD IN 1 x 10/100/1000T RJ45 Data out 1 x 2-pin DC out |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x,IEEE802.3af, IEEE802.3at , IEEE802.3bt |
Network Media(Cable) | 10BASE-T: UTP category 3,4, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m) |
LED | PWR(Green), PoE (Green) |
Dimensions (L*W*H) | 150*73*44mm |
RJ45 PoE | 1/2 and 3/6, 4/5 and 7/8 |
PoE input Budget | 95W |
Output Power | 60W DC : 12V/5A full load |
Operating Temperature | -40°C ~ 75 °C |
Storage Temperature | -40 °C ~ 80 °C |
Operating Humidity | 10% ~ 90% RH non-condensing |
Storage Humidity | 5% ~ 90% RH non-condensing |
Surge Protection | Differential mode ±4KV ,Common mode ±6KV |
MTBF | >50000 hour |
Electrostatic standard | Contact 6KV,air 8KV |
Ordering information
Model | product information |
PM9501GSP-W V1 | 95W High-power Waterproof PoE Splitter（Support 802.3af/at/bt Standard） |
