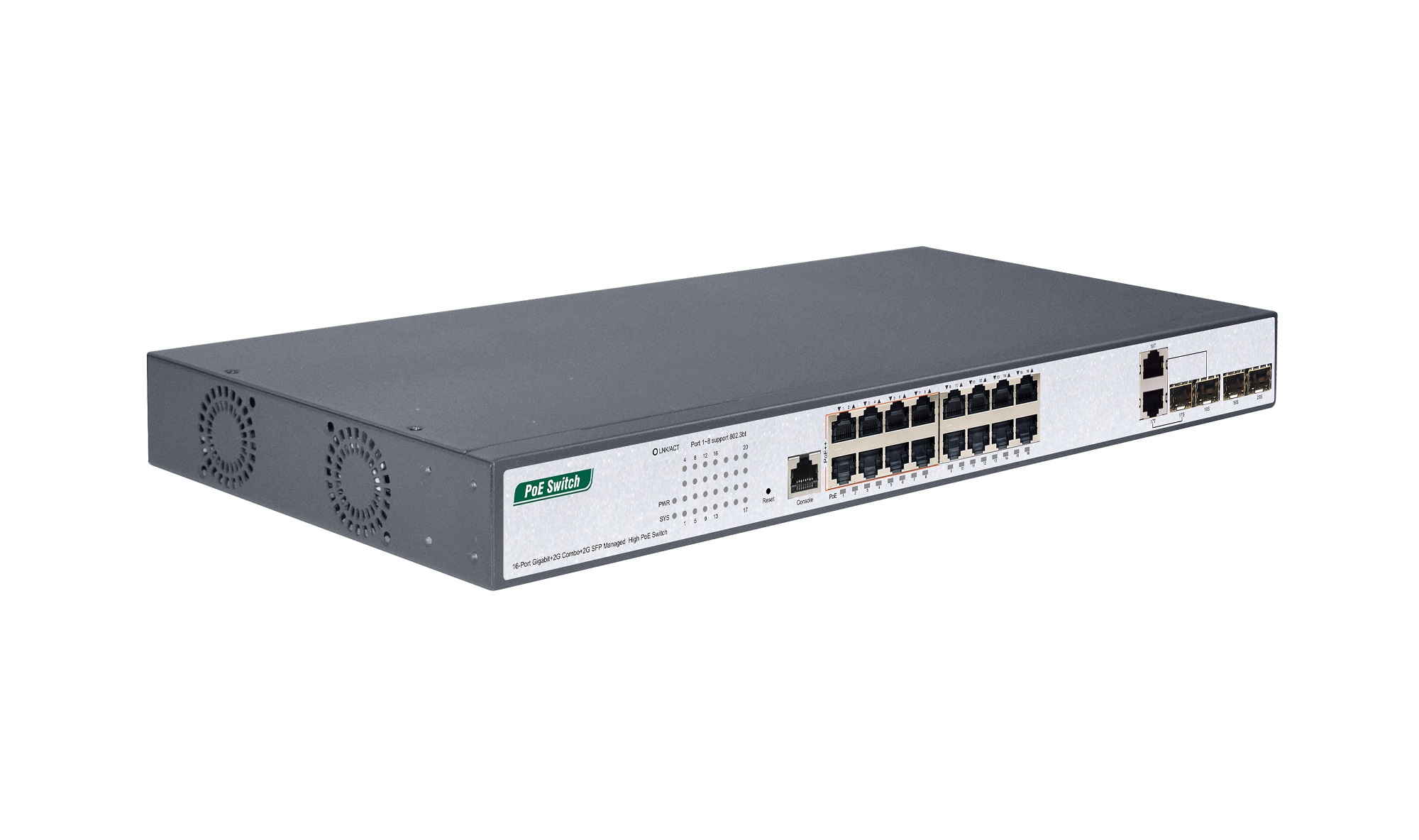

16-Port Gigabit+2G Combo+2G SFP+1Console Managed High PoE Switch(16-Port PoE, Port1-8 Support 802.3af/at/bt Standard, Port9-16 Support 802.3af/at Standard)

16-Port Gigabit+2G Combo+2G SFP+1Console Managed High PoE Switch(16-Port PoE, Port1-8 Support 802.3af/at/bt Standard, Port9-16 Support 802.3af/at Standard)

Model NO.: PM6022GSM V1

Quantity:

Product Overview

The PM6022GSM V1 provides 16*10/100/1000Mbps RJ45 ports, 2G Combo ports and 2G SFP Ports,port1-16 is PSE Port, this conforms to IEEE802.3af/at/bt standard. And each RJ45 port supports MDI/MDIX automatic flip and wire speed forwarding functions. Among them, port1-8 support IEEE802.3bt standard output. Powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2 SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the PoE Switch is an ideal choice for small and medium business networking.

Product Features

Product Specifications

Hardware Specification

Model	PM6022GSM V1
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad IEEE802.3af, IEEE802.3at, IEEE802.3bt
Interface	1610/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX) 210/100/1000Mbps Combo ports 2* 100/1000Mbps SFP Slots 1 Console Port
Indicator	PWR, LNK/ACT, PoE, SYS
Network media	10BASE-T: UTP category 3,4,5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-T: UTP category 5e, 5 cable(≤100m) 1000BASE-X: MMF, SMF
MAC Address Table	8K, Auto-learning, Auto-aging
jumbo frame	9216Bytes
Transfer Mode	Store-and-forward
Packet Forward Speed	29.76Mpps
Switching Capacity	40Gbps
Packet buffer	4.1M
Dimensions(LWH)	44020744mm
Fan Quantity	2
PoE Port	Port1~16(Port1-8support IEEE802.3bt)
PoE Power on RJ45	Port1-8 Support 4Pairs power lines: 1/2 (-),3/6 (+) and 4/5 (+)/7/8 (-) Port9-16 Support 2Pairs power lines: 1/2 (-), 3/6 (+)
PoE Power Output	Voltage: 55V DC Power: Port1-8:90W(MAX), Port9-16: 32W (MAX)
PoE Power Budget	370W
Power supply	390W
Input Power Supply	100~240V AC, 50/60Hz
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Protection	Common mode ±6KV Differential mode ±4KV;
MTBF	>50000 hour
Electrostatic standard	Contact 6KV, Air 8KV
Green energy saving	Support IEEE 802.3az

Software Specification

spanning Tree	IEEE 802.1D -Spanning Tree
	IEEE 802.1w -Rapid SpanningTree
	IEEE 802.1s -Multiple Spanning Tree
	BPDU Guard
	STP Root Guard
	Loop Detection
VLAN	Management VLAN
	Private VLAN
	Voice VLAN
	Surveillance-VLAN
	Q-in-Q (Double Tag)
	802.1v Protocol VLAN
	MAC-Based VLAN
Port	IEEE 802.3ad witch LACP(Dynamic)
	Static Trunk
	EEE
	Jumbo Frame
	Error-Disable
IGMP Snooping	IGMP Snooping v1/v2/v3
	MLD Snooping v1/v2
	MVR
L3	Static Route
	Static ARP
	DHCP Server
QoS Features	Hardware Queues
	Class Of Service	Port Based
		802.1p
		CoS
		DSCP
		IP Precedence
		TCP/UDP (IPv4/IPv6)
	Rate Limiting	Ingress
		Egress
	Priority Queue Scheduling	WRR
		Strict Priority
		DSCP & CS
	IPv4 QoS (QCEs)
	IPv6 QoS (QCEs)
Security	Port Security
	Port Isolation
	IEEE802.1x AAA
	ACLs	L2+/L3/L4
		IPv6 Support
		Management Access List
	Management ACL/Management ACE
	IP Source Guard (IP-MAC-Port-VALN Binding)
	IP Source Guard (IP-MAC-Port Binding)
	Dynamic ARP Inspection
	Storm Control
	RADIUS/TACACS+
	RADIUS Authentication (RFC2138)
	DDoS Prevention
	HTTPs and SSL (Secured Web)
	SSH v1.5/v2.0 (Secured Telnet Session)
	DHCP Snooping
	DHCP Relay
Management	SNMP (v1, v2c, v3)
	RMON ( 1,2,3 & 9 groups)
	Software Upgrade
	Configuration Export/Import
	DHCP	Client
		Option 82
		Option 66
		Option 67
	Event/Error Log	Syslog
	Management Access Filtering	Console
		SNMP
		HTTP/HTTPS
		Telnet
	Port Mirroring
	LLDP (IEEE802.1AB)
	LLDP-MED
	UDLD
	DNS Client
	Traceroute
	Ping
	Cable Test
	DDMI
	NTP/ SNTP (RFC2030)
IPv6 Support	Dual IPv6/IPv4 stack
	IPv6 Web/SSL
	IPv6 SNTP (Simple Network Time Protocol)
	IPv6 Telnet / SSH
	IPv6 Ping/Traceroute
	IPv6 TFTP
	IPv6 RADIUS/TACACS+
	IPv6 SNMP
PoE Management	Port Config
	Alive Checking for PD
	PoE Delay
	PoE Schedule
ONVIF	ONVIF Deteciton
	ONVIF Server(NLM)

Ordering information

Model	product information
PM6022GSM V1	16-Port Gigabit+2G Combo+2G SFP+1Console Managed high PoE switch(16-Port PoE, Port1-8 Support 802.3af/at/bt Standard, Port9-16 Support 802.3af/at Standard)
