48GE(PoE)+6*10G SFP+ Managed PoE Switch
48GE(PoE)+6*10G SFP+ Managed PoE Switch
48GE(PoE)+6*10G SFP+ Managed PoE Switch
48GE(PoE)+6*10G SFP+ Managed PoE Switch
48GE(PoE)+6*10G SFP+ Managed PoE Switch
48GE(PoE)+6*10G SFP+ Managed PoE Switch
48GE(PoE)+6*10G SFP+ Managed PoE Switch

48GE(PoE)+6*10G SFP+ Managed PoE Switch

Model NO.
PM3054GTM V1
Minimum order quantity:
1
Quantity:
Product Overview

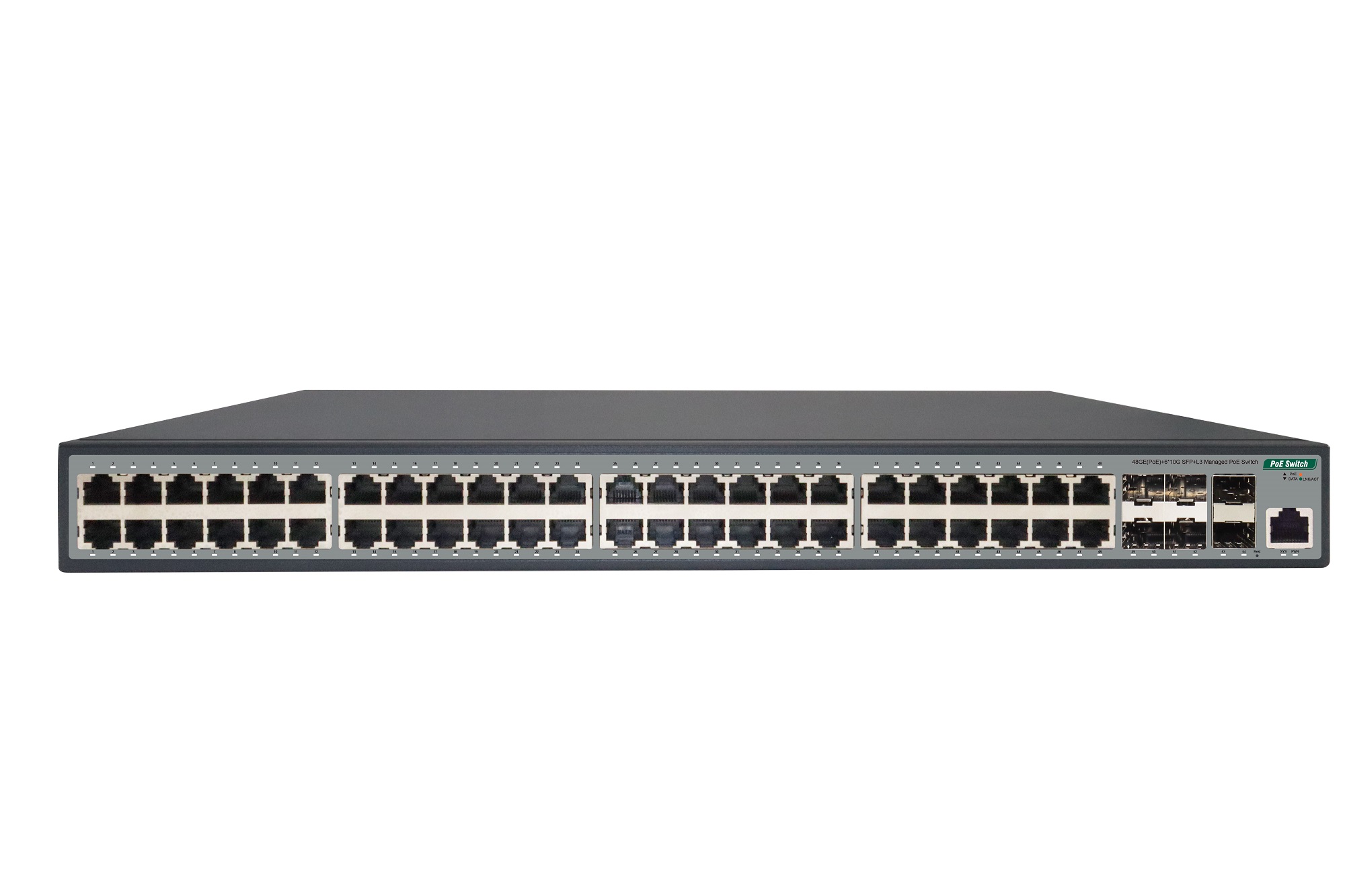

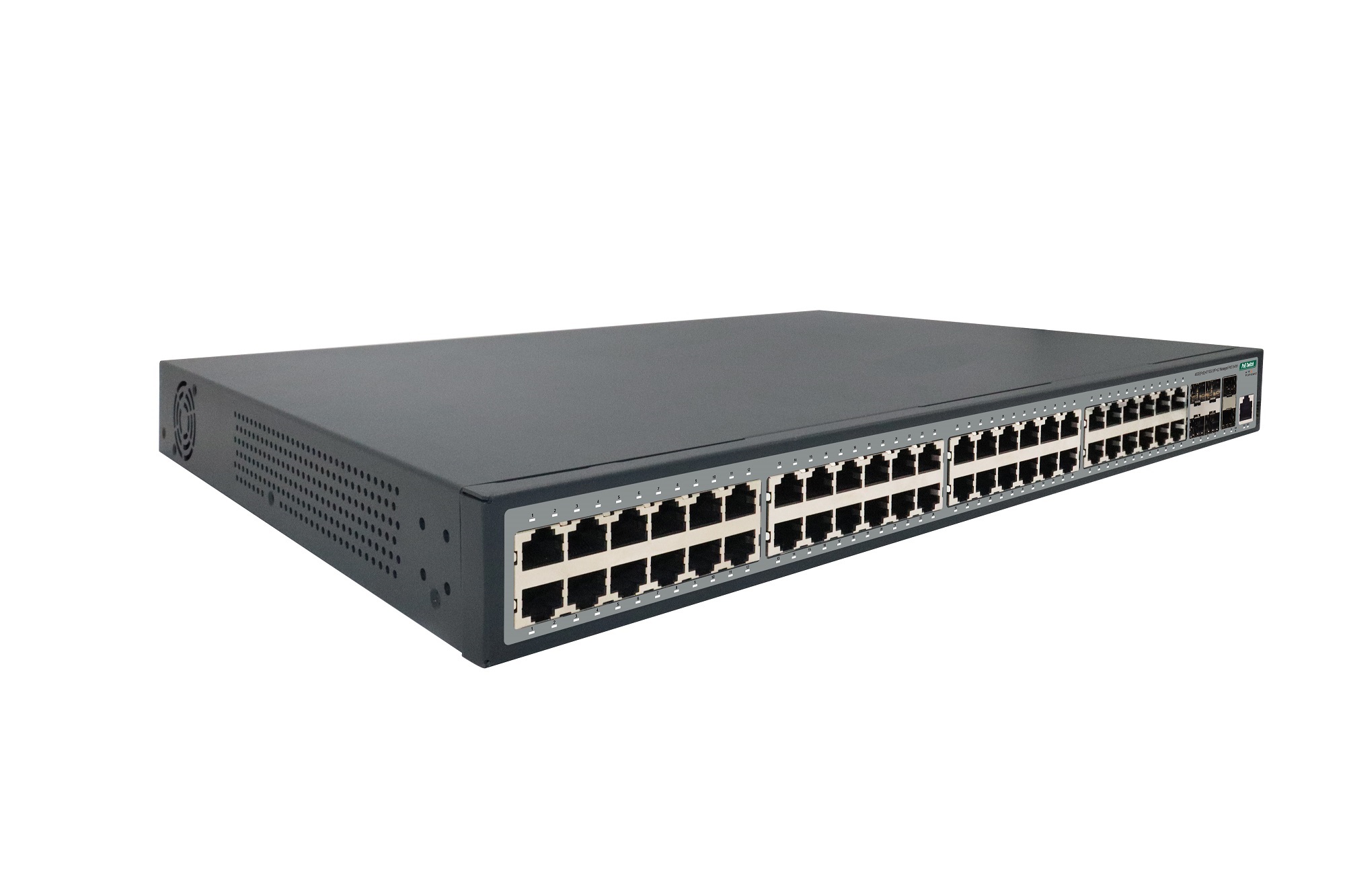

The PM3054GTM V1 is a 10Gbps layer-3 Managed PoE Switch independently developed by UNIPOE. It provides 48*10/100/1000Mbps RJ45 ports, 6 *10Gbps SFP+ optical module expansion slots, and one Console port. 1-48 RJ45 ports support PoE power supply, each port up to 30W, supports static routing, provides complete security policies, complete QoS policies, and rich VLAN functions, and is easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels, office networks, and campus networks.



Product Features
  • Support IEEE 802.3at standard, compatible with IEEE 802.3af electrical equipment (PD);
  • Single port output power up to 30W;
  • Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices;
  • Port power supply priority is supported to ensure continuous power supply for key nodes on the network;
  • Automatic detection power supply device;
  • RJ45 supports automatic port flip (Auto MDI/MDIX);
  • Monitor the working status of the panel lamp and assist in fault analysis;
  • IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control;
  • High-reliability design, supporting traditional STP/RSTP layer 3 link protection technology; Supports manual aggregation and dynamic aggregation, which effectively increases link bandwidth, improves link reliability and implements load balancing and link backup;
  • Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH;
  • Support WEB management, simple and efficient, convenient for installation and debugging of engineering and maintenance personnel;
  • Supports file upload and download management through TFTP.



Product Specification
Hardware Specification
ModelPM3054GTM V1
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, EEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3bz, IEEE802.3ae,   IEEE802.3af, IEEE802.3at
Interface48*100/1000/1000Mbps RJ45 Ports
6* 10Gbps SFP+ Slots
1 Console Port
IndicatorPWR, LNK/ACT, SYS, PoE
Network Media100BASE-TX: UTP category 5, 5e cable(≤100m)
1000BASE-TX UTP category 5e, 5 cable(≤100m)
2.5GBASE-TX UTP category 5e, 5 cable(≤100m)
1000BASE-X: MMF, SMF
10GBASE-X: MMF, SMF
MAC Address Table32K, Auto-learning, Auto-aging
Jumbo Frame12KBytes
Packet Buffer 16Mbit
Transfer ModeStore-and-forward
Packet Forward Speed160.71Mpps
Switching Capacity216Gbps
Dimensions(L*W*H)440*320*44mm
PoE PortPort1~48
PoE Power On RJ45Mode A 1/2(+), 3/6(-)
PoE Power Output30W(MAX)
PoE Power Budget500W/110VAC600W/220VAC
Power Supply800W

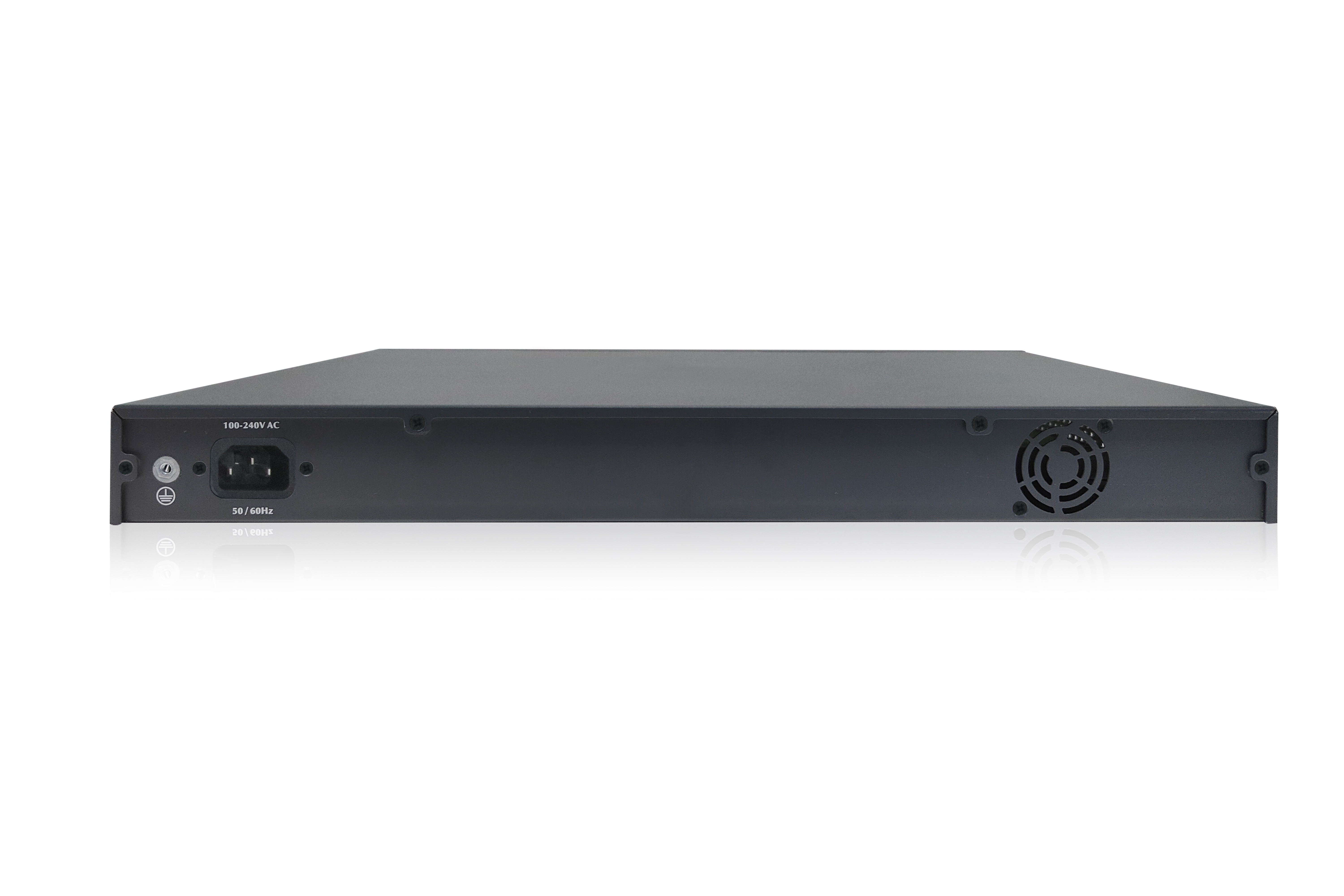

Input Power Supply100~240V AC, 50/60Hz
Fan4
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~ 70 °C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionCommon mode ±4KV, Differential mode ±2KV
MTBF>100000 hour
Electrostatic StandardContact ±6KV, Air ±8KV



Software Specification
MAC Address TableMAC Address Size
MAC Aging Time
MAC Filter
MAC Notification
Basic ManagementConsole/Telnet/SSH
Http/Https, SSL/TLS
FTP/TFTP
Syslog
SNMP(v1/v2c/v3), SNMP Trap
SNTP/NTP
CPU protect
Software/Hardware watchdog
Firmware Upgrade/Backup
Ping/Traceroute
Port ConfigBandwidth Control
Flow Control
EEE
MTU
CFM (802.1ag)
EFM OAM (802.3ah)
DDM
Storm Control
Port Isolation
Port Security
Virtual Cable Test
ULDP/Cisco UDLD
DiscoveryLLDP (802.1ab)
L2 FeaturesLLDP-MED

(Link Aggregation)
Static
LACP (802.3ad)
Load Balance(src-mac/dst-mac/src-ip/dst-ip)
Max groups and ports per group

VLAN

VLAN (802.1Q 4K)
Access/Trunk/Hybrid
Private VLAN
VLAN Filter
MAC-based VLAN
Protocol-based VLAN
IP Subnet-based VLAN
Voice VLAN
GVRP/GMRP
QinQ/Selective-QinQ/Flexible QinQ
VLAN Translation/N:1 VLAN Translation
Guest VLAN
Network Loop DetectionLoopback Detection
ERPS
Spanning TreeSTP/RSTP/MSTP
MSTP Support 64 instance
BPDU Guard/Root Guard/BPDU Tunnel
ARPStatic ARP
ARP Scanning Prevention
ARP Spoofing Prevention
ARP Guard
Gratuitous ARP
Dynamic ARP Inspection
ARP Quantity Control
ICMPAnti ICMP Attack
ICMP Rate Limit
ICMP Unreachable Drop
IP ForwardStatic Route
Route Aggregation
Control MulticastDCSCM
IPv4 Related FunctionMulticast VALNMulticast VALN
IGMPIGMP SNOOPING V1/V2/V3
Fast Leave
IGMP Proxy
DHCPDHCP Server
DHCP Client/BOOTP
DHCP Relay
DHCP Snooping
DHCP Option 82/43/60/61/67
DHCPv6DHCPv6 Server
 DHCPv6 Relay
DHCPv6 Snooping
IPv6 SAVI
Security RA
IPv6 Unicast RoutingStatic Route
IPv6 Multicast RoutingMLD v1/V2 Snooping
IPv6 FeaturesSNMP over IPv6 Support
IPv6 Related FunctionHTTP over IPv6 Support
SSH over IPv6 Support
DNS over IPv6 Support
IPv6 ping/traceroute Support
IPv6 Telnet Support
IPv6 Radius+ Support
IPv6 Tacacs+ Support
IPv6 SNTP/NTP Support
IPv6 FTP/TFTP Support
IPv6 IPSec Support
IPv6 ACL
BasicTrust COS/DSCP
Trust Port
SchedulingSP
WRR
WDRR
PolicyMap StreamBased on VLAN
Based on COS/DSCP
Aggregate PolicyMap
Ingress PolicyMap
QoS (Quality of Service)PolicingCAR Stream Shaping (leak algorithm)
Ingress Policing
RewriteCOS/802.1p Priority
IP Precedence
IPv4 DSCP/IPv6 DSCP
drop-precedence
internal-priority
Ingress/Egress Rewrite
QueuingDSCP to DSCP mapping
DSCP to DP mapping
DSCP to Queue mapping
COS to DP mapping
COS to Queue mapping
IP-ACLSIP/DIP
IP Protocol
IP Priority (DSCP, TOS, Precedence)
TCP, UDP src,dst Port
MAC-ACLSRC/DST MAC
ACLVLAN
COS
Tag/Untag
IP-MAC ACLMAC-ACL and IP-ACL
User-defined ACLBase on user defined profile
ACL FeaturesBased on time period ACL
ACL on VLAN
Based on ACL Stream
802.1xPort Based Authentication
Support EAPoR
MAC based Authentication
Guest VLAN
MABBased on Port Authentication
Based on MAC Authentication
MAC Address Count LimitBased on Port
Based on VLAN
IP Address Count LimitBased on Port
SecurityBased on VLAN
Access ManagementBased on source mac and IP address
Deny DoS AttackTCP Flag
TCP Flagment
IP Segment
ICMP
TACACS+Standard Support
RadiusStandard Support
Client, Support MD5
SSLOpenssl 1.1.0
MRPPCompatiable ERRP
Redundancy Related ULPPUplink Protection Protocol
FunctionSmart Link/Monitor Link
ULSMUplink State Monitor
MirrorSupport one to one, multi to one
Port based mirror, support ingress, egress, and both
MirrorCPU based mirror
Flow based mirror
RSPAN
PoEPoE ManagementON/OFF Config
Alive Checking for PD
7/24 On/Off Scheduling




Ordering Information
ModelProduct Information
PM3054GTM V1 48GE(PoE)+6*10G SFP+ Managed PoE Switch
