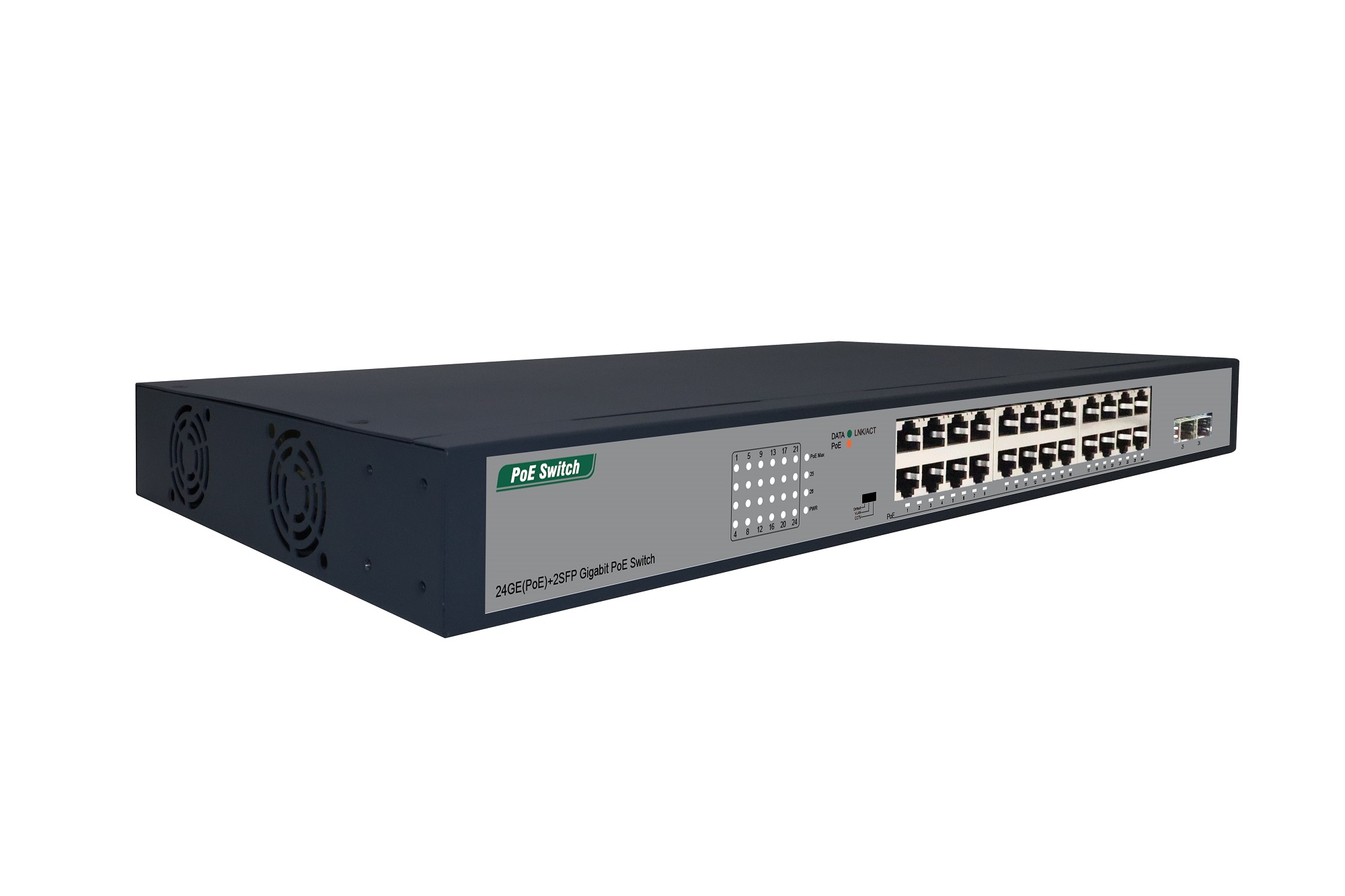

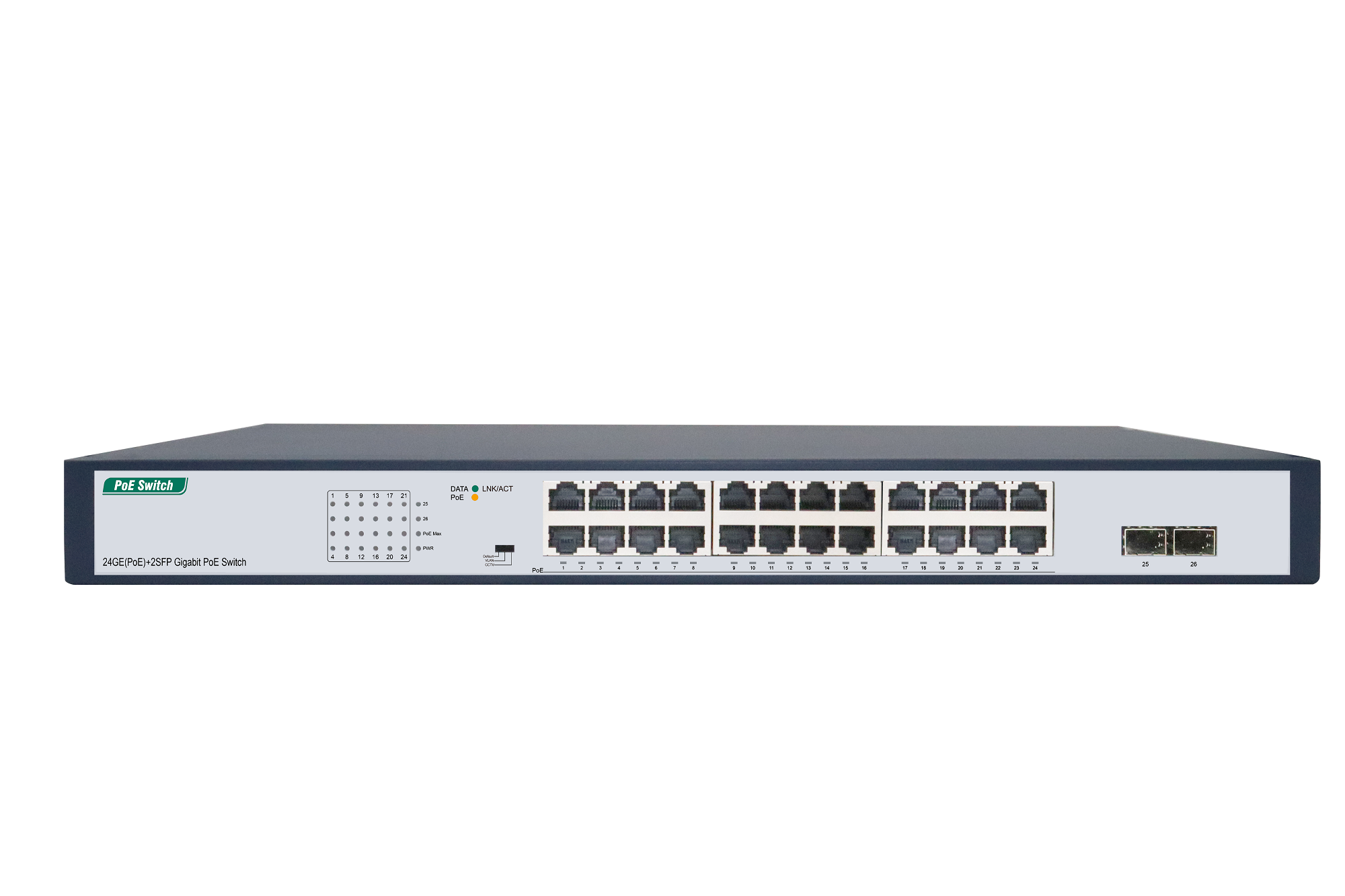

24GE(PoE)+2SFP Gigibit PoE Switch
24GE(PoE)+2SFP Gigibit PoE Switch
24GE(PoE)+2SFP Gigibit PoE Switch
24GE(PoE)+2SFP Gigibit PoE Switch
24GE(PoE)+2SFP Gigibit PoE Switch
24GE(PoE)+2SFP Gigibit PoE Switch
24GE(PoE)+2SFP Gigibit PoE Switch

24GE(PoE)+2SFP Gigibit PoE Switch

Model NO.
PM3026GSN V4

Product Overview
The PM3026GSN V4 has 24 gigabit adaptive RJ45 ports and 2 gigabit SFP optical fiber slots. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1 to 24 have the PoE power supply function and comply with IEEE802.3af/at standards. They can serve as Ethernet power supply devices, automatically detect and identify the devices that meet the standards, and supply power to them through network cables.

Product Features
  • IEEE802.3at standard compliant IEEE802.3AF electrical receiving device (PD);
  • Single port output power up to 30W;
  • Automatic detection and identification standard PoE power receiving devices, intelligent power supply, does not burn non-standard PoE power receiving devices or common devices;
  • Port power priority is supported to ensure continuous power supply for key nodes on the network;
  • Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control ;
  • Supports the energy-efficient function of IEEE802.3az;
  • Panel indicators monitor working status and assist in fault analysis;
  • PoE and Switch are designed in one.


Product Specifications
Hardware capabilities
ModelPM3026GSN V4
Port24x10/100/1000Mbps RJ45 Ports
2x1000Mbps SFP Slots
PoE StandardIEEE802.3af/at
PoE PortPort 1~24
PSE Power on RJ-45Mode A  1/2(+) , 3/6(-)
PoE Port Output30W Max
PoE Power Budget250W370W(Optional)
Power supply280W400W(Optional)
Key functionCCTV&VLAN
Forwarding ModeStorage-and-Forward
Switching Capacity52Gbps
MAC address table8K, Auto--learning, Auto-aging
Jumbo frames9216Byte
Packet Buffer4.1Mbit
Forwarding Rate38.69Mpps
Input Power SupplyAC 100-240V  50/60Hz
Operation Temperature0℃~40℃
Storage Temperature-40℃~70℃
Operation Humidity10%~90% RH  non-condensing
Storage Humidity5%~90% RH  non-condensing
Fan Qty2
LED IndicatorPWR, LNK/ACT, PoE
Network Media10BASE-T: UTP category 3, 4, 5 cable (≤100m)
100BASE-TX: UTP category 5 cable (≤100m)
1000BASE-T: UTP category 5e cable(≤100m)
Surge ProtectionCommon mode 4KV, differential mode 2KV
MTBF>50000 hours
Electrostatic standardContact 6KV, air 8KV
green energy savingSupport IEEE 802.3az

Ordering information
Modelproduct information
PM3026GSN V416-Port Gigabit+2G SFP PoE Switch
