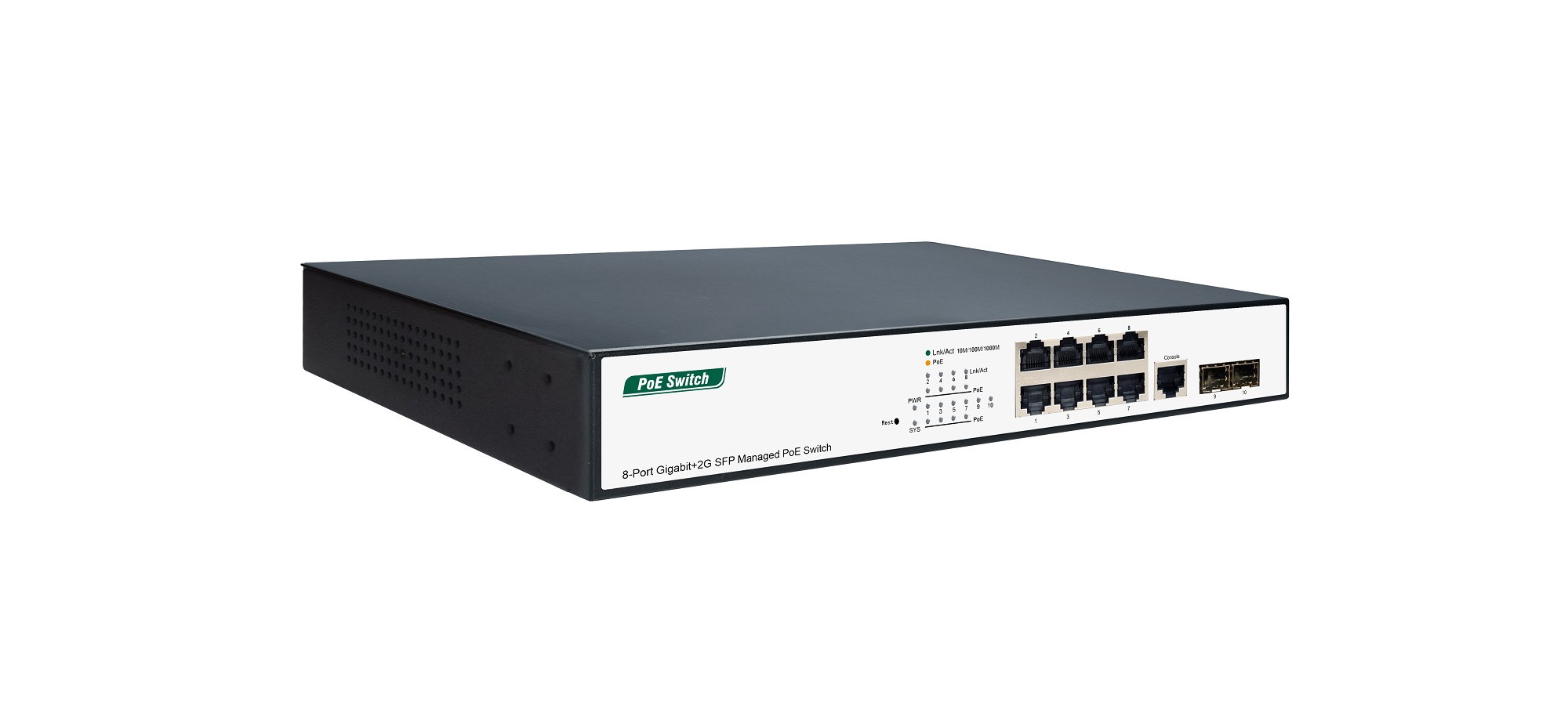

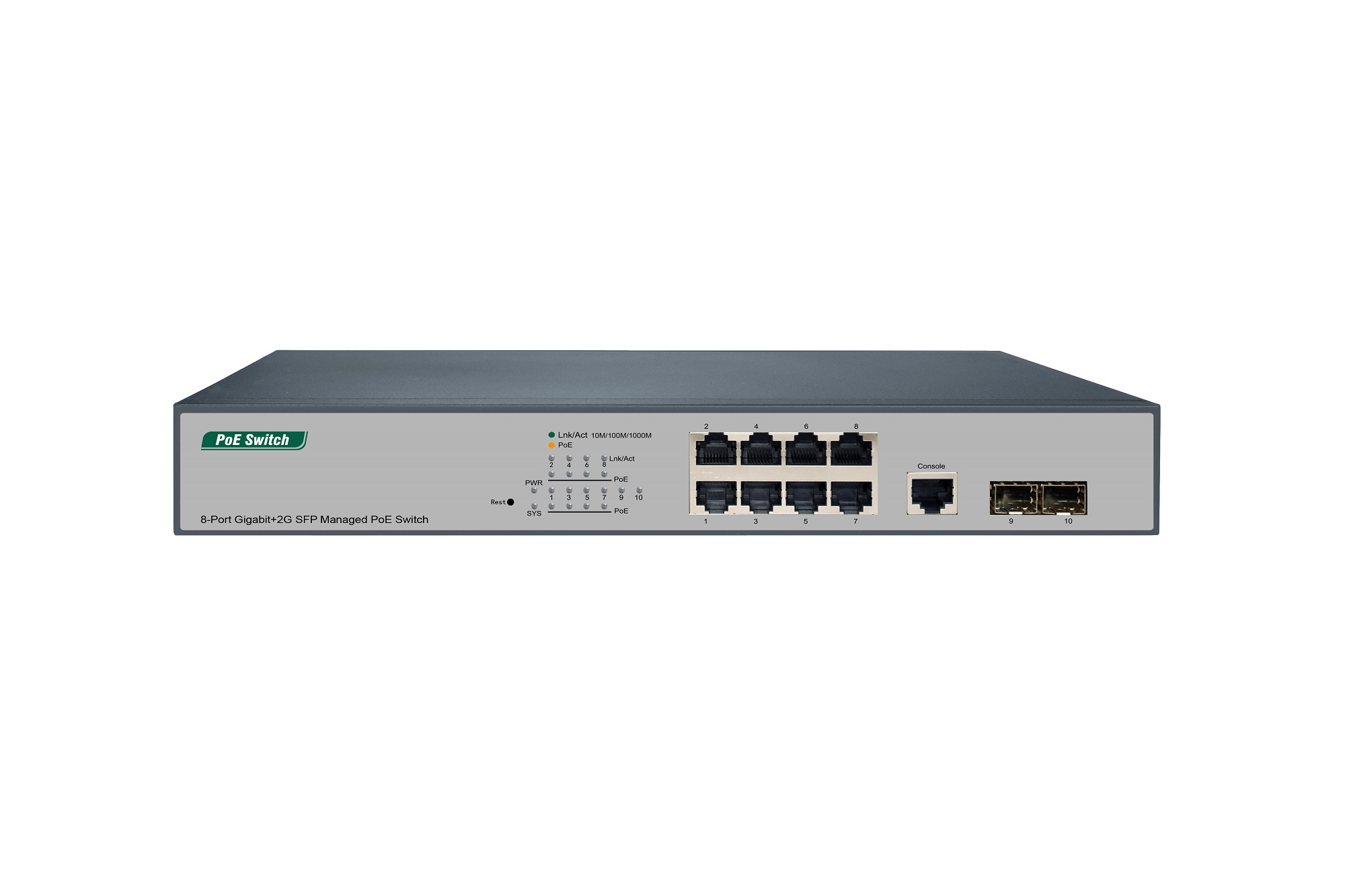

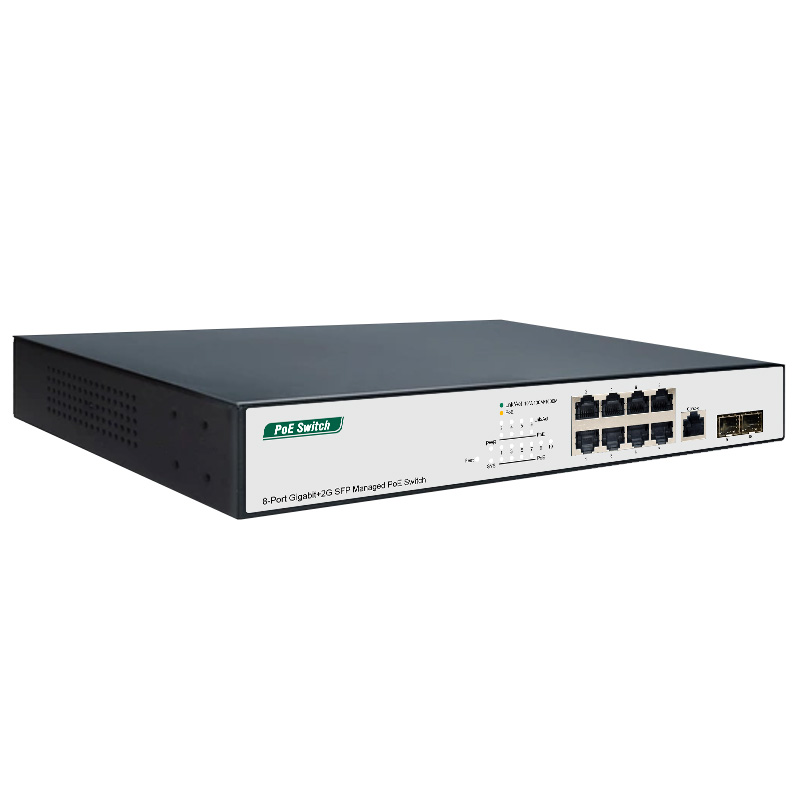

8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch
8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch
8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch
8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch
8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch
8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch
8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch

8-Port Gigabit+2G SFP Managed PoE Switch managed poe switch managed switch with poe managed switch poe poe managed switch poe switch

Model NO.
PM3010GSM V5
Quantity:
Product Overview
The PM3010GSM V5 provides 8*10/100/1000Mbps RJ45 ports that supports 802.3af/at Standard, with a total PoE power supply up to 140W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2*1000Mbps SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the PoE Switch is an ideal choice for small and medium business networking.



Product Features
  • ​​​​​​Complies with IEEE802.3af/at Standard;
  • Support RJ45 Auto-MDI/MDIX;
  • Supports PoE Power up to 30W for each PoE port;
  • Auto detect power device;
  • PoE, main board and power supply are all in one:
  • Remote power and Data feeding up to 100m;
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az);
  • Highly reliable design, supporting traditional STP/MSTP/RSTP Layer 2 link protection technology;
  • Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup;
  • Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
  • Support PD-ALIVE function.


Product Specification
Hardware Specification
ModelPM3010GSM V5
Interface8*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)
2*1000Mbps SFP Slots
1 Console Port
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at
Network Media10BASE-T: UTP category 3,4,5 cable(≤100m)
100BASE-TX: UTP category 5, 5e cable(≤100m)
1000BASE-T: UTP category 5e, 5 cable(≤100m)
1000BASE-X: MMF, SMF
IndicatorPWR, LNK/ACT, PoE, SYS
MAC Address Table8K, Auto-learning, Auto-updating
Jumbo Frame9216Bytes
Packet Buffer4.1Mbit
Transfer ModeStore-and-forward
Packet Forward Speed14.88Mpps
Switching Capacity20Gbps
PoE PortPort1~8
PoE Power On RJ451/2(+), 3/6(-)
PoE Power OutputVoltage: 55V Power: 30W(MAX)
PoE Power Budget140W140W Fanless(optional)
Power Supply150W150W Fanless(optional)
Input Power Supply100~240V AC, 50/60Hz
Fan Quantity1Fanless(optional)
Dimensions(L*W*H)280*180*44mm
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~ 70 °C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionCommon mode ±4KV  Differential mode ±2KV:
MTBF>50000 hour
Electrostatic StandardContact ±6KV, Air ±8KV
Green Energy SavingSupport IEEE (802.3az)

Software Specification
spanning TreeIEEE 802.1D -Spanning Tree
IEEE 802.1w -Rapid Spanning Tree
IEEE 802.1s -Multiple Spanning Tree
BPDU Guard
STP Root Guard
Loop Detection
VLANManagement VLAN
Private VLAN
Voice VLAN
Surveillance-VLAN
Q-in-Q (Double Tag)
802.1v Protocol VLAN
MAC-Based VLAN
PortIEEE 802.3ad witch LACP(Dynamic)
Static Trunk
EEE
Jumbo Frame
Error-Disable
IGMP SnoopingIGMP Snooping v1/v2/v3
MLD Snooping v1/v2
MVR
L3Static Route
Static ARP
DHCP Server
QoS FeaturesHardware Queues
Class Of ServicePort Based
802.1p
CoS
DSCP
IP Precedence
TCP/UDP (IPv4/IPv6)
Rate LimitingIngress
Egress
Priority Queue SchedulingWRR
Strict Priority
DSCP & CS
IPv4 QoS (QCEs)
IPv6 QoS (QCEs)
SecurityPort Security
Port Isolation
IEEE802.1x AAA
ACLsL2+/L3/L4
IPv6 Support
Management Access List
Management ACL/Management ACE
IP Source Guard (IP-MAC-Port-VALN Binding)
IP Source Guard (IP-MAC-Port Binding)
Dynamic ARP Inspection
Storm Control
RADIUS/TACACS+
RADIUS Authentication (RFC2138)
DDoS Prevention
HTTPs and SSL (Secured Web)
SSH v1.5/v2.0 (Secured Telnet Session)
DHCP Snooping
DHCP Relay
ManagementSNMP (v1, v2c, v3)
RMON (1,2,3 & 9 groups)
Software Upgrade
Configuration Export/Import
DHCPClient
Option 82
Option 66
Option 67
Event/Error LogSyslog
Management Access FilteringConsole
SNMP
HTTP/HTTPS
Telnet
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED
UDLD
DNS Client
Trace route
Ping
Cable Test
DDMI
NTP/ SNTP (RFC2030)
IPv6 SupportDual IPv6/IPv4 stack
IPv6 Web/SSL
IPv6 SNTP (Simple Network Time Protocol)
IPv6 Telnet / SSH
IPv6 Ping/Trace route
IPv6 TFTP
IPv6 RADIUS/TACACS+
IPv6 SNMP
PoE ManagementPort Config
Alive Checking for PD
PoE Delay
PoE Schedule
ONVIFONVIF Detection
ONVIF Server (NLM)



Ordering Information
ModelProduct Information
PM3010GSM V58-Port Gigabit+2G SFP Managed PoE Switch (8-Port PoE, Support 802.3af/at Standard)
