Model NO.
PM3010FSN V5
Quantity:

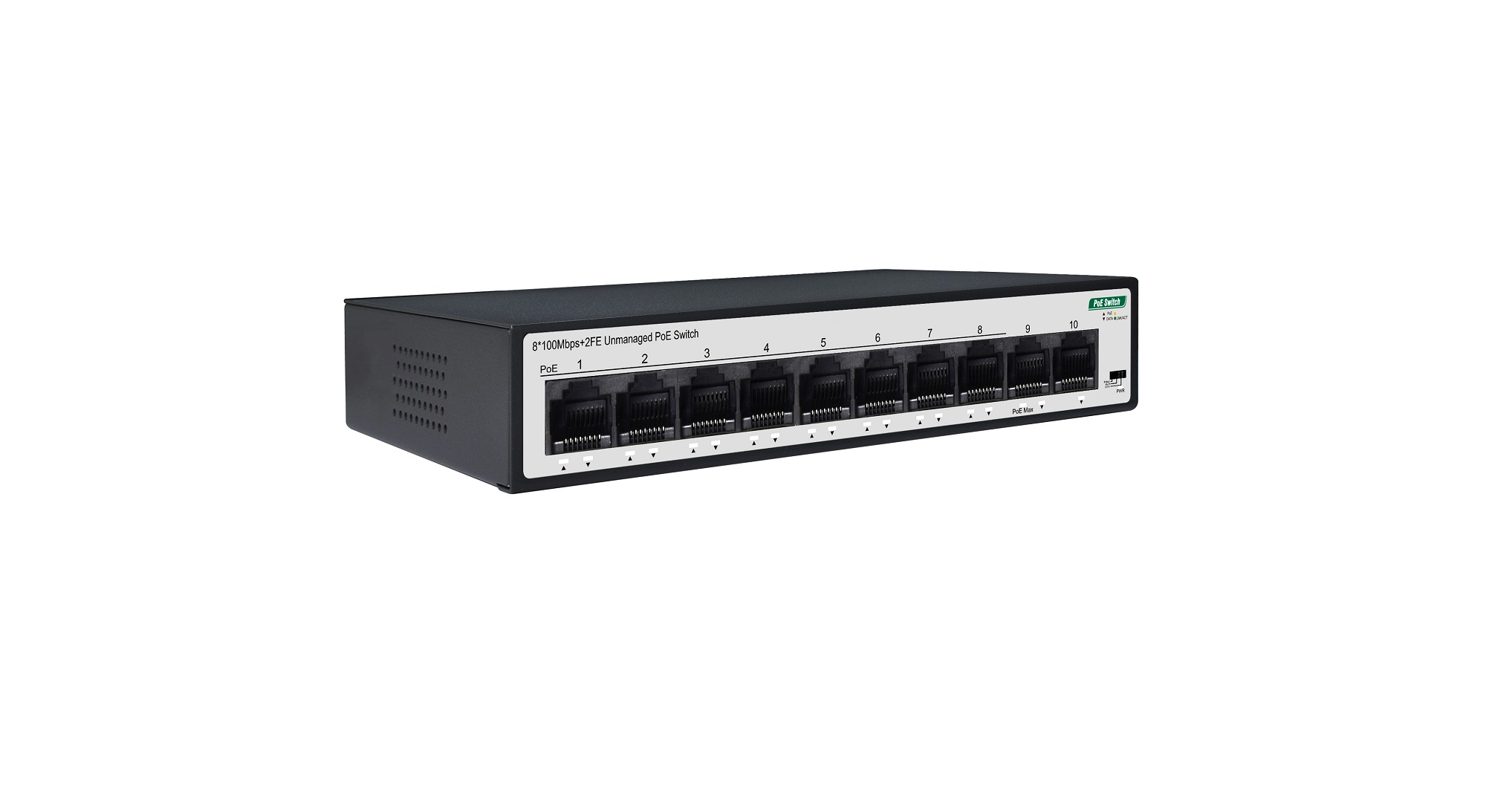

Product Overview
PM3010FSN V5 has 10*10/100Mbps adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX automatic rollover and wire-speed forwarding. Ports 1 to 8 have the PoE power supply function and support IEEE802.3af/at standards. They can be used as Ethernet power supply devices. They can automatically detect and identify electrical devices that meet the standards and supply power to them through network cables. Store-and-forward technology combined with dynamic memory allocation ensures efficient bandwidth allocation to each port.
PM3010FSN V5 has CCTV function 250 meters long distance transmission, users can choose to enable or disable CCTV function according to different application environment, easy management and maintenance, meet the networking and access requirements of enterprises, communities, hotels, office networks and campus networks.


Product Features
  • Supports IEEE 802.3at and is compatible with IEEE 802.3af powered devices (PD).
  • Single-port output power up to 32W;
  • Automatic detection of PD equipment;
  • Automatic detection and identification of standard PoE powered devices, intelligent power supply, do not burn non-standard PoE powered devices or common devices;
  • Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control.
  • Iron case, no fan;
  • Panel indicator to monitor working status and help fault analysis;
  • Perfect safety mechanism;
  • Intelligent recognition of line speed forwarding;
  • Data exchange adopts store-and-forward mode;
  • Operating temperature: 0°C ~ 40 °C;
  • Supports the PD-ALIVE function.
  • Support VLAN and CCTV modes
  • Main board, PoE (two-in-one);

Product Specifications
Hardware Specification

ModelPM3010FSN V5
Interface10*10/100Mbps RJ45 port
StandardIEEE802.3, IEEE802.3u ,IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
PoE standardIEEE802.3af/at
PoE port1~8 port
PoE output-portVoltage: 54V DC 32W Max
PoE total110W105W(可选)
Power supplyAC IN: 100-240V 50/60Hz  2A MAX
DC OUT : 54V/2.3A  120W
AC IN: 200-240V 50/60Hz  2.5A MAX
DC OUT : 54V/2A  108W(可选)
Key function CCTV&VLAN
RJ45 PoE power supplyMode A   1/2(+)   3/6(-)
Transfer Modestore-and-forward
Bandwidth2Gbps
MAC Address Table1K, Automatic study, automatic updates
jumbo frame1536Bytes
Packet buffer448K bit
Packet forwarding rate1.488Mpps
Fanfanless
Device Dimension168*86*32mm
Machine weight>1kg
IndicatorPWR(Green) LNK/ACT(Green) PoE(Orange) Max(Green)
Network media10BASE-T:   UTP category 3,4,5 cable (≤100m)
100BASE-TX: UTP category 5, 5e cable (≤100m)
green energy savingSupport IEEE(802.3az)
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~ 70 °C
Operating Humidity10% ~ 90% RH  non-condensing
Storage Humidity5% ~ 90% RH  non-condensing
Surge ProtectionCommon mode ±4KV, differential mode ±2KV
MTBF>50000 hour
Electrostatic standardContact 6KV, air 8KV


Ordering information
Modelproduct information
PM3010FSN V58FE(PoE)+2FE Fast Ethernet PoE Switch(8-port PoE, 802.3af/at standard)
