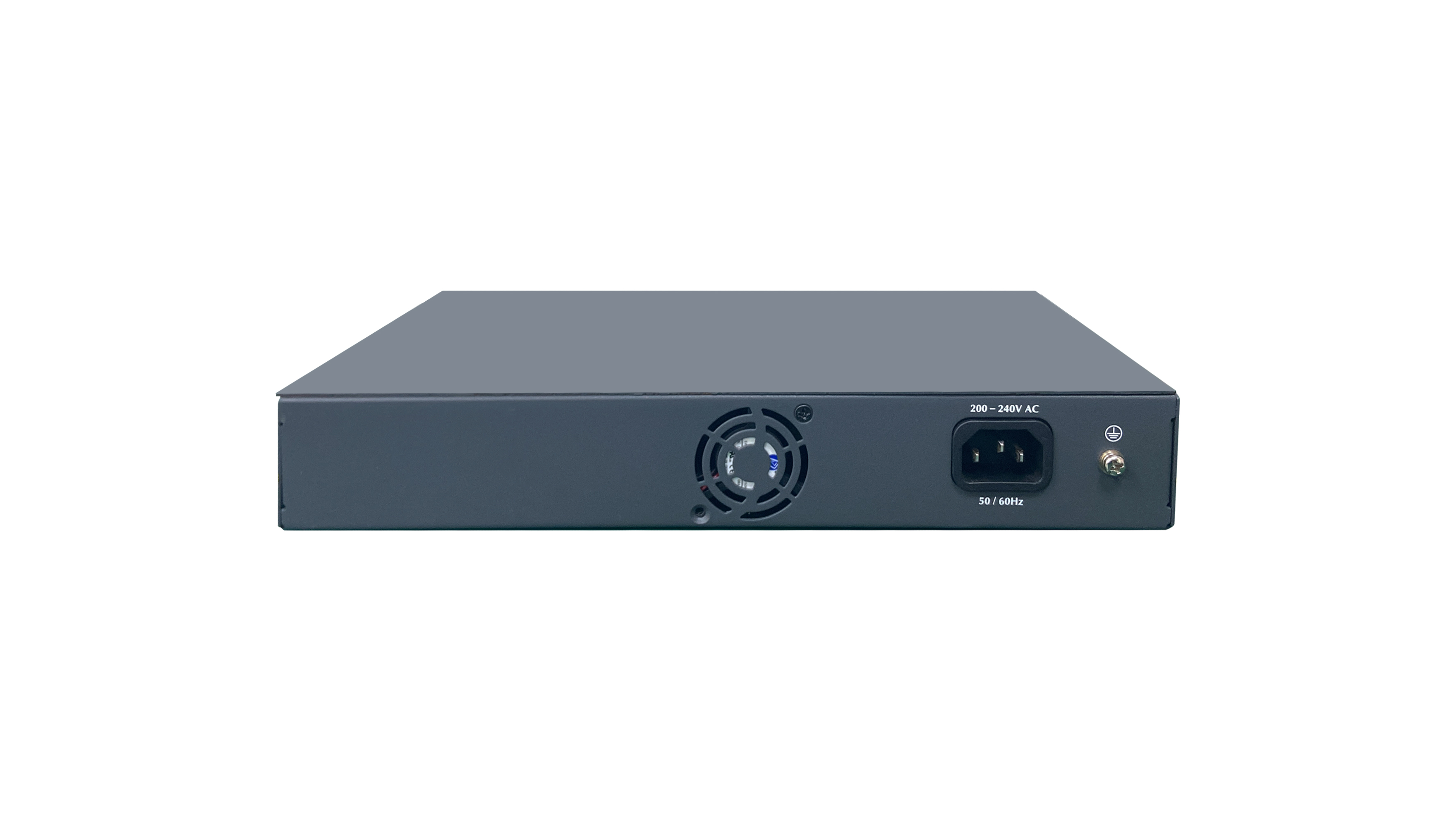

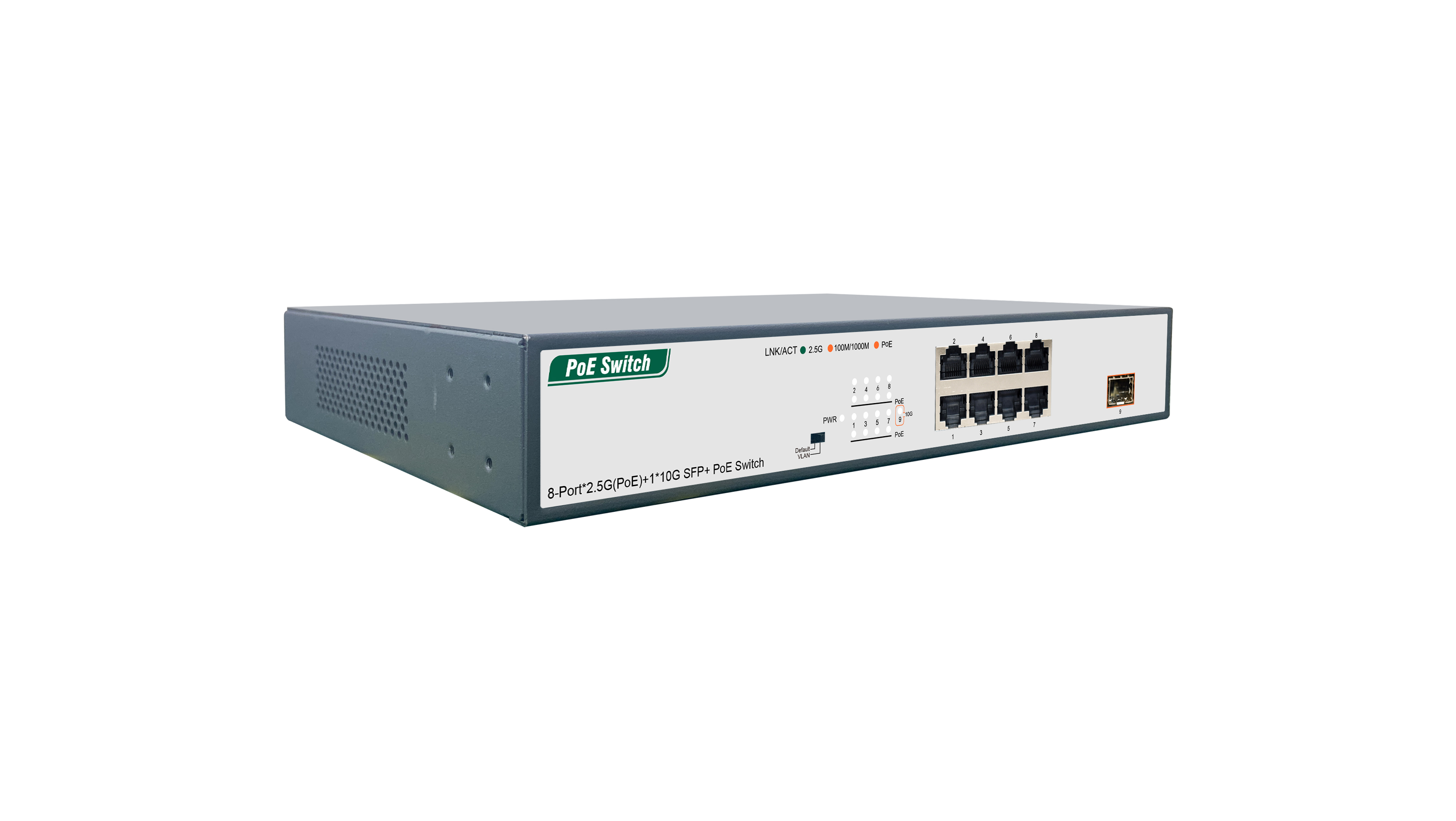

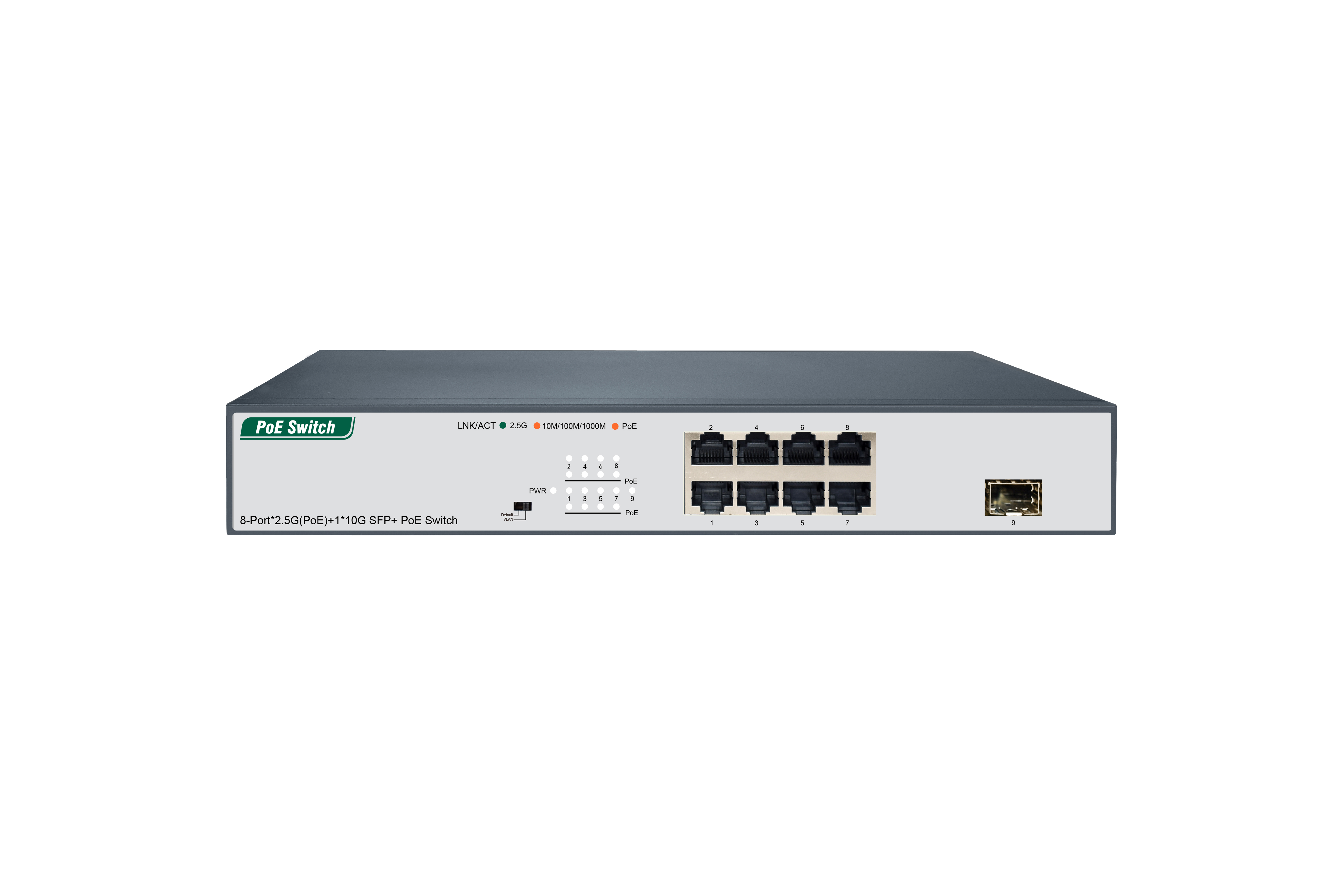

8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch
8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch
8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch
8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch
8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch
8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch
8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch

8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch

Model NO.
PM3009TSN V1
Quantity:
Product Overview
The PM3009TSN V1 provides 8*100/1000/2500Mbps adaptive RJ45 ports and 1*10Gbps SFP+fiber module expansion slot.Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions.Ports 1 to 8 of them have PoE power supply function and support IEEE802.3af/at standard, which can be used as Power over Ethernet device and can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable.The use of store-and-forward technology, combined with dynamic memory allocation to ensure effective bandwidth allocation to each port, is powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras, ideal for WIFI coverage, Internet cafes, server rooms, etc.

Product Features
• Support IEEE 802. 3af/at standard;
• Single port output power up to 30W;
• Automatic detection and identification of standard PoE-powered devices, intelligent power supply, will not burn non-standard PoE-powered devices or ordinary devices;
• Port power priority is supported to ensure continuous power supply for key nodes on the network;
• RJ45 supports port auto-flip (Auto MDI/MDIX);
• Panel light monitors working status and assists in fault analysis;
• Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
• Support Ethernet Energy Efficiency (EEE) function (IEEE802.3az);
• Support VLAN function;
• Motherboard, Power Supply, PoE (3 in 1).

Product Specifications
Hardware Specifications
ModelPM3009TSN V1
StandardIEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3az, IEEE802.3x, IEEE802.3bz, IEEE802.3ae, IEEE802.3af, IEEE802.3at
Interface8*100/1000/2500Mbps RJ45 Ports
1*10Gbps SFP+ Slot
IndicatorPWR, LNK/ACT, PoE
Network Media100BASE-TX: UTP category 5, 5e cable(≤100m)
1000BASE-TX UTP category 5e, 5 cable(≤100m)
2.5GBASE-TX UTP category 5e, 5 cable(≤100m)
1000BASE-X:MMF,SMF
10GBASE-X:MMF, SMF
10GBASE-SR: OM1/OM2/OM3 or above MMF (2m~300m)
10GBASE-LR: IEC's B1.1 and B1.3 SMF (2m~10000m)
MAC Address Table4K, Auto-learning, Auto-updating
Key Function VLAN
Jumbo Frame12KByte
Packet Buffer8.1Mbit
Transfer ModeStore-and-forward
Packet Forward Speed44.64Mpps
Switching Capacity60Gbps
Dimensions(L*W*H)280*180*44mm
PoE PortPort1~8
PoE Power On RJ451/2(+) 3/6(-)
PoE Power Output30W(MAX)
PoE Power Budget130W
Power Supply150W
Input Voltage100~240V AC, 50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40°C ~ 70 °C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Surge ProtectionCommon mode ±6KV, Differential mode ±4KV
MTBF>50000 hour
Electrostatic StandardContact ±6KV, Air ±8KV

Ordering Information
ModelProduct Information
PM3009TSN V1 8-Port*2.5G(PoE)+1*10G SFP+ PoE Switch
