Model NO.
PM3006FSN V3
Quantity:

Product Overview

PM3006FSN V3 is 6-port 10/100Mbps switch with 4 port PoE(Port1~4). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc. With store & forward technology and dynamic memory allocation, PM3006FSN V3 guarantee the bandwidth distribute each port effectively.


With Power supply, PoE module and switch PCBA Three in one, PM3006FSN V3 is easy to install and become smaller and more flexible. In addition, PM3006FSN V3 supports CCTV function which can improve the network environment and reduces network maintenance costs. It is easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.

Features​​​​​​

  • Complies with IEEE802.3af/at Standard;
  • Supports PoE Power up to 32W for each PoE port
  • Auto detect power device; will not burned non-standard PoE device or normal PoE switch.;
  • Supports port power supply prioritization, guarantee the continuous power supply of key nodes
  • One key CCTV mode, Remote power and Data feeding up to 250m;
  • Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Line-speed forwarding, intelligent identification
  • Supports storage – and- forward for Data exchange;
  • Internal power supply with small case.
  • Power supply, PoE module and switch PCBA Three in one.

Product Specifications

Model

PM3006FSN V3

PoE standard

IEEE802.3af/at

Interface

6*10/100Mbps RJ45 port

key function

CCTV

PoE port

1-4

PoE Total

60W

Power supply

65W

RJ45 PoE power supply

Mode A Anode1/2 Cathode3/6

PoE output-port

Max 32W

Indicator

PWR, LNK/ACT, PoE

Network media

10BASE-T: UTP category 3,4,5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

MAC Address Table

2K, Automatic study, automatic updates

jumbo frame

2048 Bytes

Packet buffer

768K bit

Transfer Mode

store-and-forward

Packet forwarding rate

0.89Mpps

Bandwidth

1.2Gbps

Fan

Fanless

Device Dimension

168*93*32mm

Machine weight

<1kg

Input Voltage

AC 100-240V 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

±4KV

Certification

CE, FCC Class A

MTBF

>50000 hour

Electrostatic standard

Contact 4KV,air 6KV

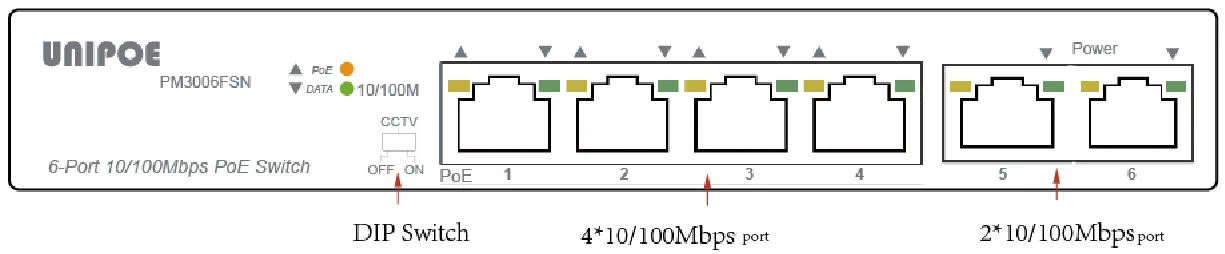

The front panel following figure:

The PM3006FSN V3 front panel lights to monitor working state and help fault analysis

The DIP Switch On the panel

CCTV mode, Power supply up to 250m

When DIP switch toggle to default, all ports can communicate with each other.

When DIP switch toggle to CCTV mode, 1-4 port can be isolated each other, but 1-4 port can connect to 5/ 6 port after open VLAN to stop broadcast storm to increase forwarding rate of frame. UP to 250m PoE distance allows you to expand you network via Ethernet cable to where there is no power line or outlet but where you want to fix device such as IP Cameras.
(Note: Please turn off the device before setting)

Ordering information

Model

Product information

PM3006FSN V3

4*10/100Mbps+2FE Uplink PoE Switch
