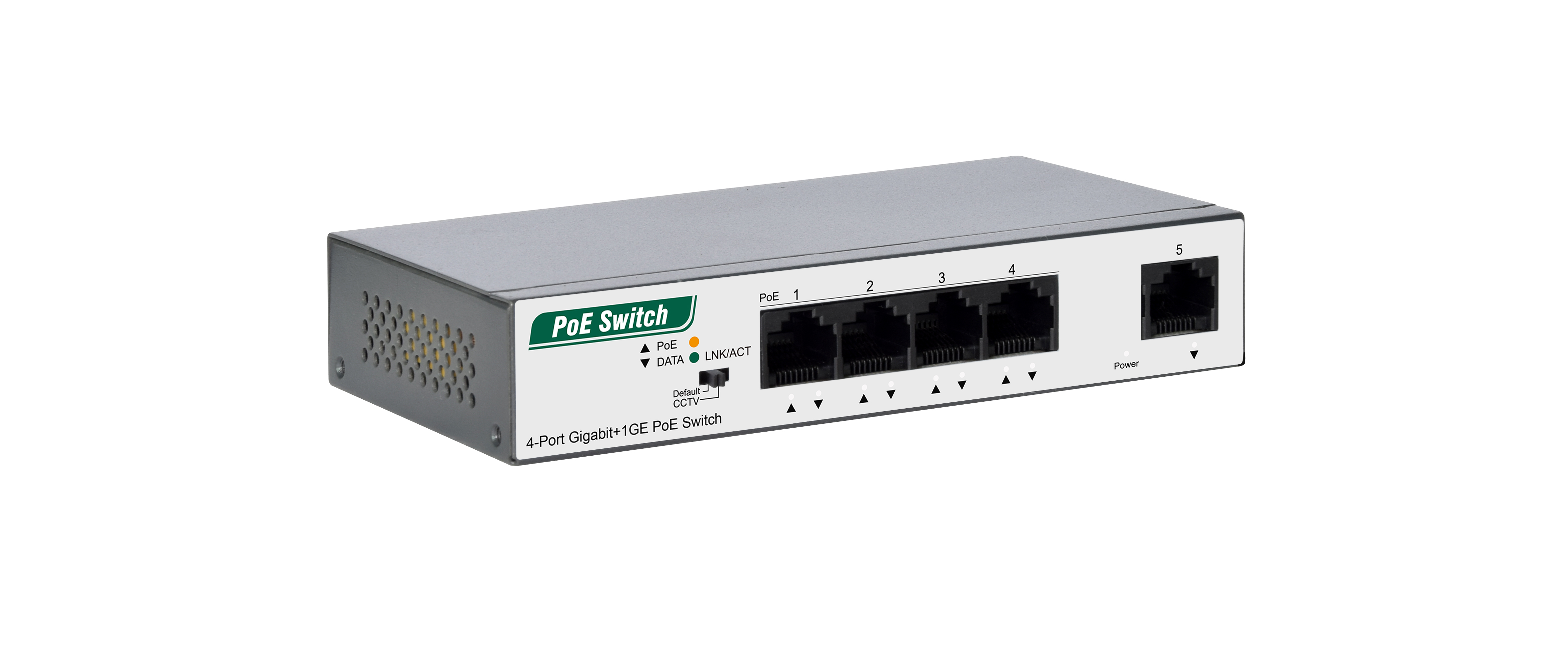

Product Overview
The PM3005GSN V2 is 5-Port 10/100/1000 Mbps auto-negotiation RJ45 Port. Port1-4 is PoE port support IEEE802.3af/at standard and each RJ45 port supports MDI/MDIX automatic flip and wire speed forwarding functions.
The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets, where you can install devices such as APs, IP cameras, or IP phones etc.
Easy to manage and maintain which can meet a lot of networking environment, such as Business building, Community, Hotel, Office etc.
Product Features
- Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD);
- Support CCTV Function;
- Automatic detection of PD equipment;
- Iron case;
- Poe, main board and power supply are all in one;
- Auto detect power device; will not burned non-standard PoE device or normal PoE switch；
- Panel lights to monitor working state and help fault analysis;
- Support port power supply prioritization, guarantee the continuous power supply of key nodes；
- Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
- Operating temperature: 0℃~40℃;
Product Specifications
Hardware Specification
Model | PM3005GSN V2 |
Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at |
Interface | 4*10/100/1000Mbps RJ45 PoE Port (Auto Negotiation/Auto MDI/MDIX)
1*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX) |
Network Media(Cable) | 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m) |
LED | Power 、PoE 、LNK/ACT |
Jumbo frame | 9K Byte |
MAC Address Table | 2K, Auto-learning, Auto-aging |
Packet buffer | 1M bit |
Forward rate | 7.44Mpps |
Transfer mode | Store-and-Forward |
Switching Capacity | 10G |
Dimensions (L*W*H) | 140*76.7*28mm |
Fan | Fanless |
Power Supply | 45W | 65W |
PoE power Budget | 40W | 60W |
PSE port | Port1~4 |

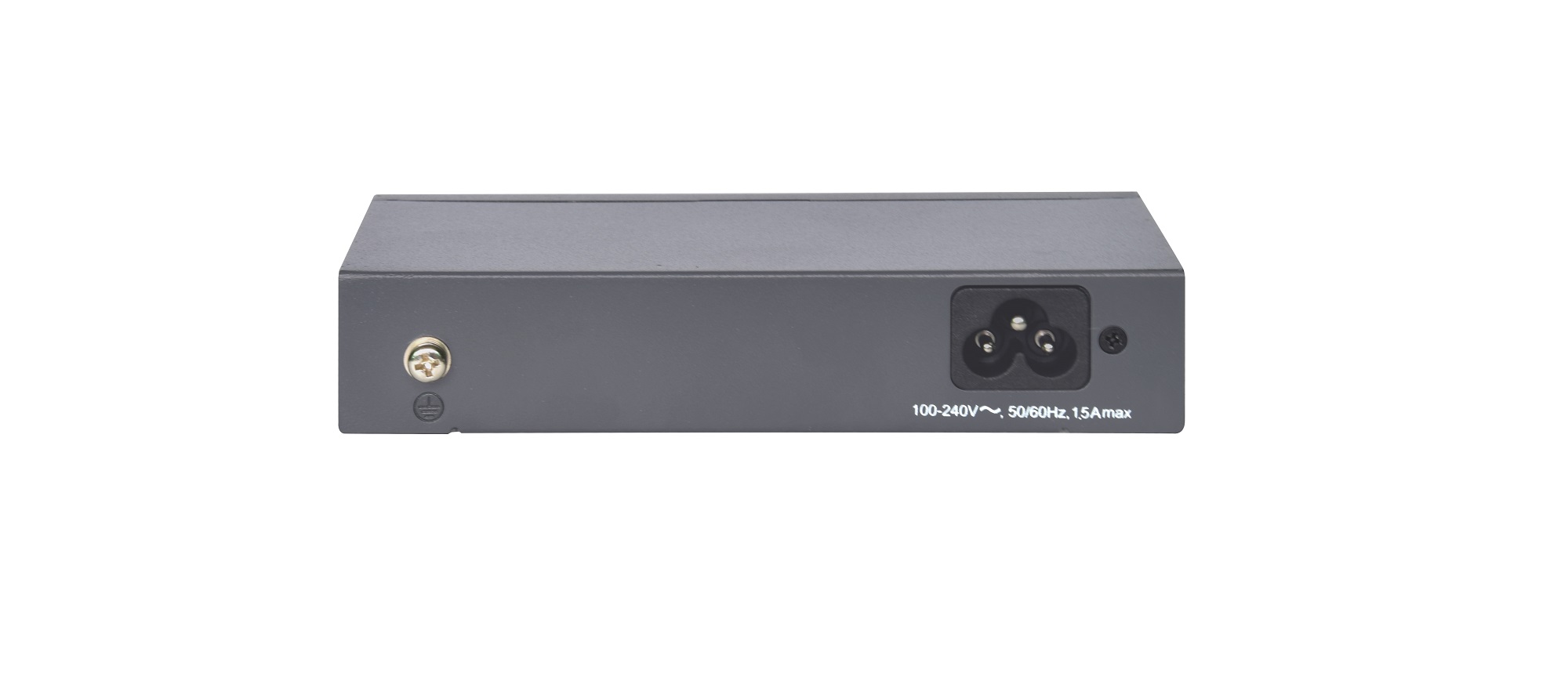

Input Voltage | 100-240V AC 50/60HZ |
PoE Power Output | 32Wmax |
PSE Power on RJ-45 | 2Pairs power lines 1/2(+),3/6(-) |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -40 °C ~ 70 °C |
Operating Humidity | 10% ~ 90% non-condensing |
Storage Humidity | 5% ~ 90% non-condensing |
Surge Protection | Difference Mode±2KV,Common mode±4KV |
MTBF | >50000 hour |
Electrostatic standard | Contact 6KV,air 8KV |
Ordering information
Model | Product information |
PM3005GSN V2 | 4-Port Gigabit+1GE PoE Switch(1-4 support IEEE802.3af/at standard) |
