48GE+6*10G SFP+ L3 Managed Switch

Model NO.: PM154GTM V1
Minimum order quantity:: 1

Quantity:

Product Description
Basic Information

Product Overview

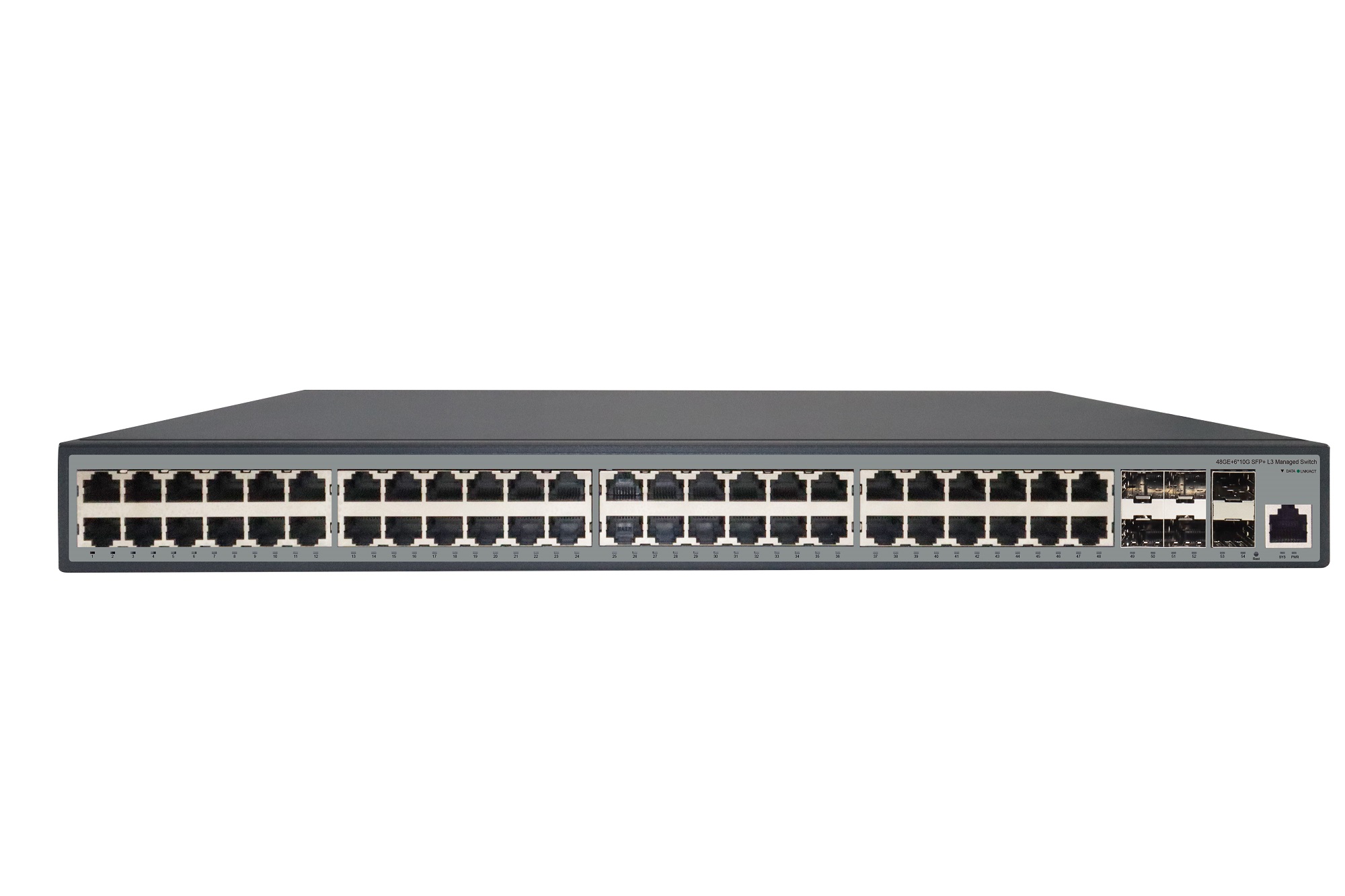

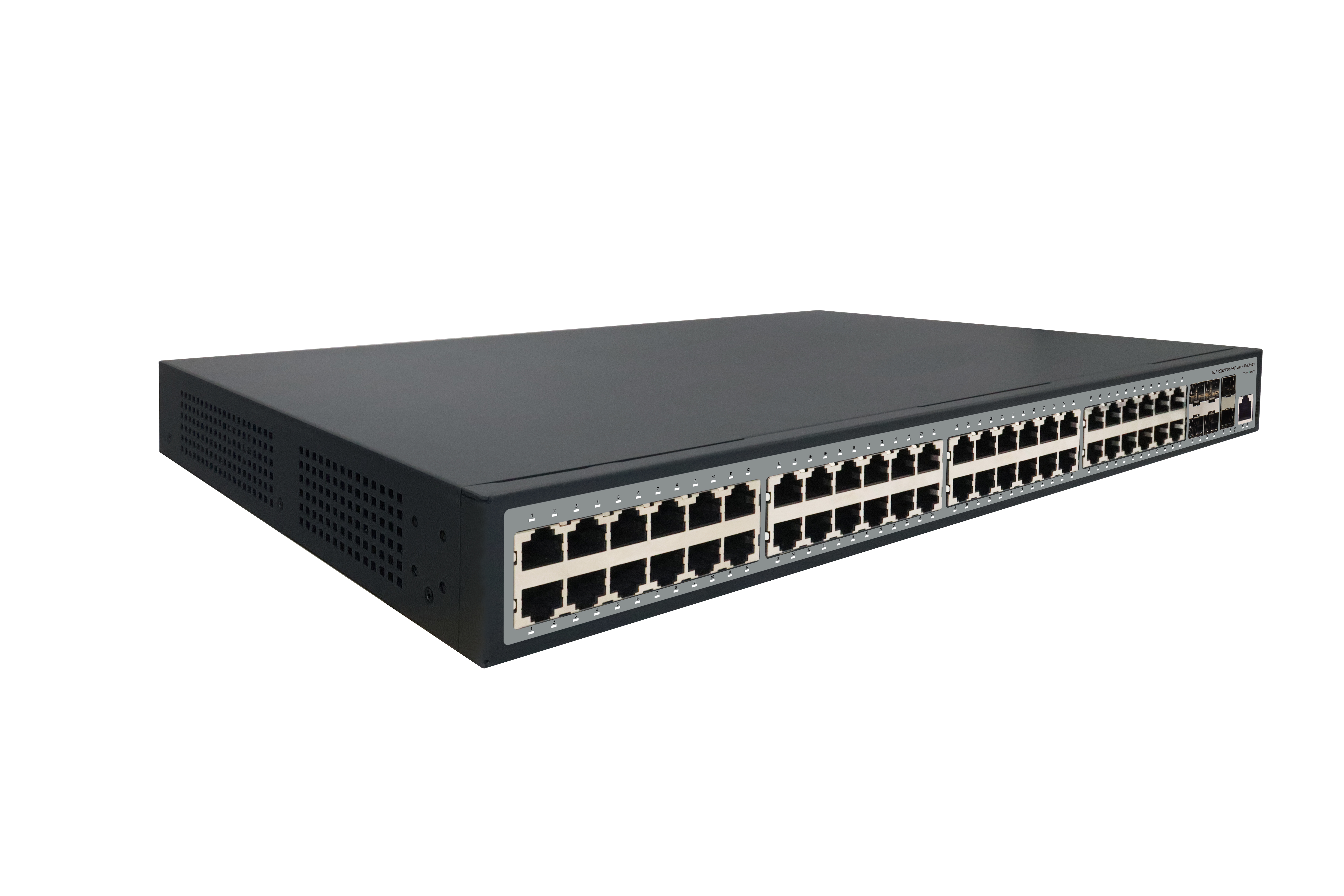

The PM154GTM V1 is a 10Gbps L3 Managed Switch independently developed by UNIPOE. It has 48*10/100/1000Mbps RJ45 ports, 6*10Gbps SFP+ optical module expansion slots, and 1 Console port. Supports static routing, provides complete security policies, QoS policies, and diversified VLAN functions, and is easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels, office networks, and campus networks.

Product Features

Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x standards.
RJ45 Supports automatic port flip (Auto MDI/MDIX);
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control;
Panel indicators monitor working status and assist in fault analysis;
Perfect security mechanism;
High reliability design, supporting traditional STP/RST layer 3 link protection technology; Supports manual aggregation and dynamic aggregation, which increases link bandwidth, improves link reliability, and implements load balancing and link backup;
Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH;
Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel;
Supports file upload and download management through TFTP.

Product Specification
Hardware Specificaiton

Model	PM154GTM V1
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad
Interface	4810/100/1000Mbps RJ45 Ports 610Gbps SFP+ Slots 1 Console Port
Indicator	PWR, LNK/ACT, SYS
Network Media	10BASE-T: UTP category 3,4,5 cable(≤100m) 100BASE-TX: UTP category 5, 5e cable(≤100m) 1000BASE-T: UTP category 5e, 5 cable(≤100m) 100BASE-FX:MMF,SMF 10000BASE-X: MMF, SMF
MAC Address Table	32K, Auto-learning, Auto-aging
Jumbo Frame	12KByte
Packet Buffer	16Mbit
Transfer Mode	Store-and-forward
Packet Forward Speed	160.71Mpps
Switching Capacity	216Gbps
Dimensions(LWH)	44026044mm
Power Supply	60W

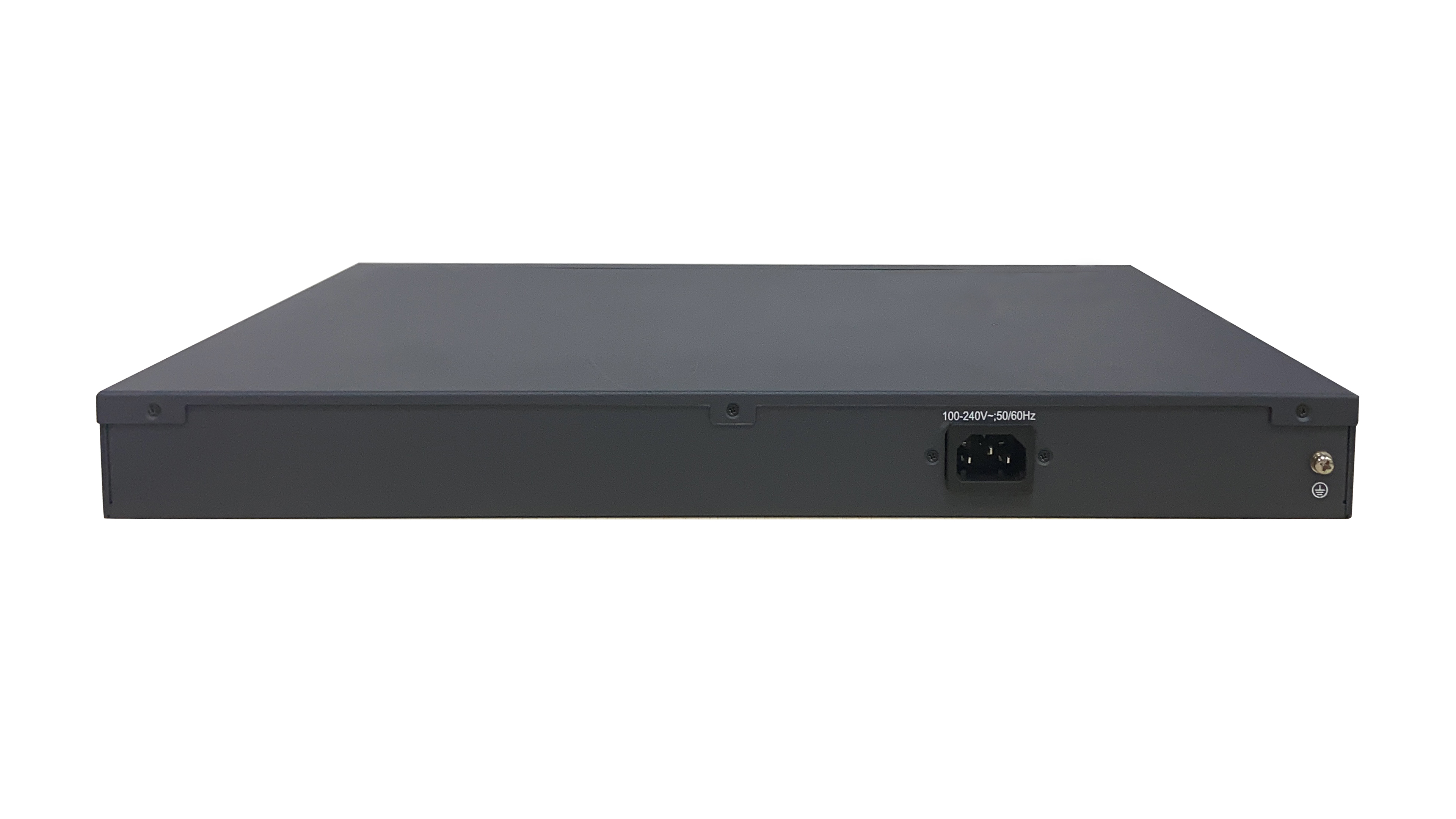

Input Power Supply	IN:100~240V AC, 50/60Hz
Operating Temperature	0°C ~ 40 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Surge Protection	Common mode ±2KV Differential mode ±1KV；
Certification	CE, FCC ClassA
MTBF	>50000 hour
Electrostatic Standard	Contact ±6KV, Air ±8KV

Software Specificaiton

	MAC Address Table	MAC Address Size
		MAC Aging Time
		MAC Filter
		MAC Notification
	Basic Management	Console/Telnet/SSH
		Http/Https, SSL/TLS
		FTP/TFTP
		Syslog
		SNMP(v1/v2c/v3), SNMP Trap
		SNTP/NTP
		CPU protect
		Software/Hardware watchdog
		Firmware Upgrade/Backup
		Ping/Traceroute
	Port Config	Bandwidth Control
		Flow Control
		EEE
		MTU
		CFM(802.1ag)
		EFM OAM(802.3ah)
		DDM
		Storm Control
		Port Isolation
		Port Security
		Virtual Cable Test
		ULDP/Cisco UDLD
	Discovery	LLDP(802.1ab)
L2 Features	Discovery	LLDP-MED
	(Link Aggregation)	Static
		LACP(802.3ad)
		Load Balance(src-mac/dst-mac/src-ip/dst-ip)
		Max groups and ports per group
	VLAN	VLAN(802.1Q 4K)
		Access/Trunk/Hybrid
		Private VLAN
		VLAN Filter
		MAC-based VLAN
		Protocol-based VLAN
		IP Subnet-based VLAN
		Voice VLAN
		GVRP/GMRP
		QinQ/Selective-QinQ/Flexible QinQ
		VLAN Translation/N:1 VLAN Translation
		Guest VLAN
	Network Loop Detection	Loopback Detection
	Network Loop Detection	ERPS
	Spanning Tree	STP/RSTP/MSTP
		MSTP Support 64 instance
		BPDU Guard/Root Guard/BPDU Tunnel
	ARP	Static ARP
		ARP Scanning Prevention
		ARP Spoofing Prevention
		ARP Guard
		Gratuitous ARP
		Dynamic ARP Inspection
		ARP Quantity Control
	ICMP	Anti ICMP Attack
		ICMP Rate Limit
		ICMP Unreachable Drop
	IP Forward	Static Route
	IP Forward	Route Aggregation
	Control Multicast	DCSCM
IPv4 Related Function	Multicast VALN	Multicast VALN
	IGMP	IGMP SNOOPING V1/V2/V3
		Fast Leave
		IGMP Proxy
	DHCP	DHCP Server
		DHCP Client/BOOTP
		DHCP Relay
		DHCP Snooping
		DHCP Option 82/43/60/61/67
	DHCPv6	DHCPv6 Server
		DHCPv6 Relay
		DHCPv6 Snooping
		IPv6 SAVI
		Security RA
	IPv6 Unicast Routing	Static Route
	IPv6 Multicast Routing	MLD v1/V2 Snooping
	IPv6 Features	SNMP over IPv6 Support
IPv6 Related Function		HTTP over IPv6 Support
		SSH over IPv6 Support
		DNS over IPv6 Support
		IPv6 ping/traceroute Support
		IPv6 Telnet Support
		IPv6 Radius+ Support
		IPv6 Tacacs+ Support
		IPv6 SNTP/NTP Support
		IPv6 FTP/TFTP Support
		IPv6 IPSec Support
		IPv6 ACL
	Basic	Trust COS/DSCP
	Basic	Trust Port
	Scheduling	SP
		WRR
		WDRR
	PolicyMap Stream	Based on VLAN
		Based on COS/DSCP
		Aggregate PolicyMap
		Ingress PolicyMap
QoS(Quality Of Service)	Policing	CAR Stream Shaping(leak algorithm)
	Policing	Ingress Policing
	Rewrite	COS/802.1p Priority
		IP Precedence
		IPv4 DSCP/IPv6 DSCP
		drop-precedence
		internal-priority
		Ingress/Egress Rewrite
	Queuing	DSCP to DSCP mapping
		DSCP to DP mapping
		DSCP to Queue mapping
		COS to DP mapping
		COS to Queue mapping
	IP-ACL	SIP/DIP
		IP Protocol
		IP Priority(DSCP,TOS, Precedence)
		TCP,UDP src,dst Port
	MAC-ACL	SRC/DST MAC
ACL		VLAN
		COS
		Tag/Untag
	IP-MAC ACL	MAC-ACL and IP-ACL
	User-defined ACL	Base on user defined profile
	ACL Features	Based on time period ACL
		ACL on VLAN
		Based on ACL Stream
	802.1x	Port Based Authentication
		Support EAPoR
		MAC based Authentication
		Guest VLAN
	MAB	Based on Port Authentication
	MAB	Based on MAC Authentication
	MAC Address Count Limit	Based on Port
	MAC Address Count Limit	Based on VLAN
	IP Address Count Limit	Based on Port
Security	IP Address Count Limit	Based on VLAN
	Access Management	Based on source mac and IP address
	Deny DoS Attack	TCP Flag
		TCP Flagment
		IP Segment
		ICMP
	TACACS+	Standard Support
	Radius	Standard Support
	Radius	Client, Support MD5
	SSL	Openssl 1.1.0
	MRPP	Compatiable ERRP
Redundancy Related	ULPP	Uplink Protection Protocol
Function	ULPP	Smart Link/Monitor Link
	ULSM	Uplink State Monitor
	Mirror	Support one to one, multi to one
		Port based mirror, support ingress, egress, and both
Mirror		CPU based mirror
		Flow based mirror
		RSPAN
