Model NO.
PM118GMC V1
Quantity:
Product Overview

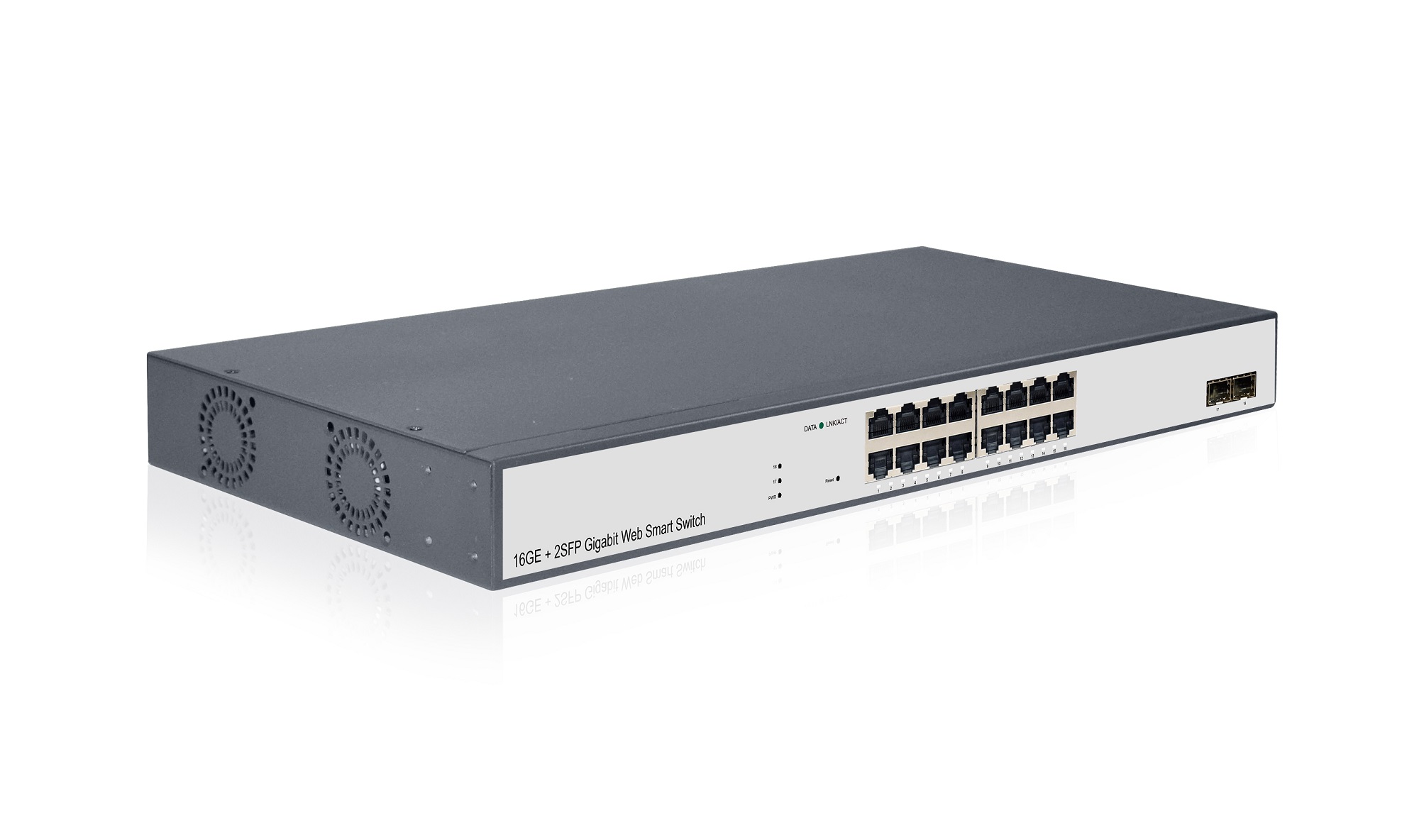

PM118GMC V1 is a self-developed Web Smart Switch with 16*10/100/1000Mbps RJ45 ports and 2*1000Mbps SFP optical module slots. Each RJ45 port supports MDI/MDIX automatic turn-over and wire-speed forwarding, which is easy to use and can flexibly expand home and office networks without limitation of power line layout, easy to manage and maintain, and can meet the requirements of different scenarios.

Product Features
  • Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
  • Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression;
  • Supports port traffic statistics, port monitoring, cable detection, and loopback protection
  • Panel indicators monitor working status and assist in fault analysis;
  • Intelligent identification of wire speed forwarding;
  • Data exchange adopts store-and-forward mode;
  • Operating temperature: 0°C ~ 40 °C.
Product Specifications

Hardware Specification
ModelPM118GMC V1
Interface16*10/100/1000Mbps RJ45 Ports
2*1000Mbps SFP Slots
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x,
IEEE 802.1q , IEEE 802.1p , IEEE 802.1d , IEEE 802.1w , IEEE 802.3ad
MAC Address Table8K, Auto-learning, Auto-aging
Jumbo Frame9216Byte
Packet Buffer4.1M bit
Transfer ModeStore-and-forward
Switching Capacity36Gbps
Packet Forward Speed26.79Mpps
Power12V/1.2A
Input VoltageAC 100-240V 50/60Hz
Operating Temperature0°C ~ 40 °C
Storage Temperature-40 °C ~70°C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
Dimensions(L*W*H)440*207*44mm
Fan QuantityFanless
Network Media10BASE-T: Cat 3, 4, and 5 Unshielded Twisted pair cables (≤100)
100BASE-TX: Cat 5 or later Unshielded Twisted Pair (≤100)
Surge ProtectionDifferential mode ±2KV, Common mode ±4KV
MTBF>50000 hour
Electrostatic StandardContact ±6KV, Air ±8KV


Software Specification
Function menuFunctional descriptionAdded


Basic
Login authentication and logout
Bilingual (Chinese-English Switching)
Port panel (dual color rate differentiator)1000 m green
100 m / 10 m orange yellow






System configuration

Equipment information
Device name
Device contact
Location of equipment
IP Address SettingStatic
DHCP Client
Support the DNS
Web configurationWeb Timeout Setting
User managementThe password must contain at least six letters and digits
The firmware updateLocal upgrade
Equipment managementEquipment to restart
Save Settings
factory data reset

Monitoring management
The port statistical
Cable testing
Ring network configurationrlpp






Switch Configuration

Port configuration
Status
Speed/Duplex/Flow Control
Port mirrorEntrance/exit /ALL
Port isolation
Static MAC
MAC filtering
MAC query
MAC listCategories display static/dynamic
VLAN configurationMember of the VLAN
VLAN configurationAccess, Trunk

QOS configuration
Port speed limit
The broadcast storm

Ordering Information
ModelProduct Information
PM118GMC V116GE +2SFP Web Smart Switch
