Model NO.
PM6010GSM V1
Quantity:

Product Overview

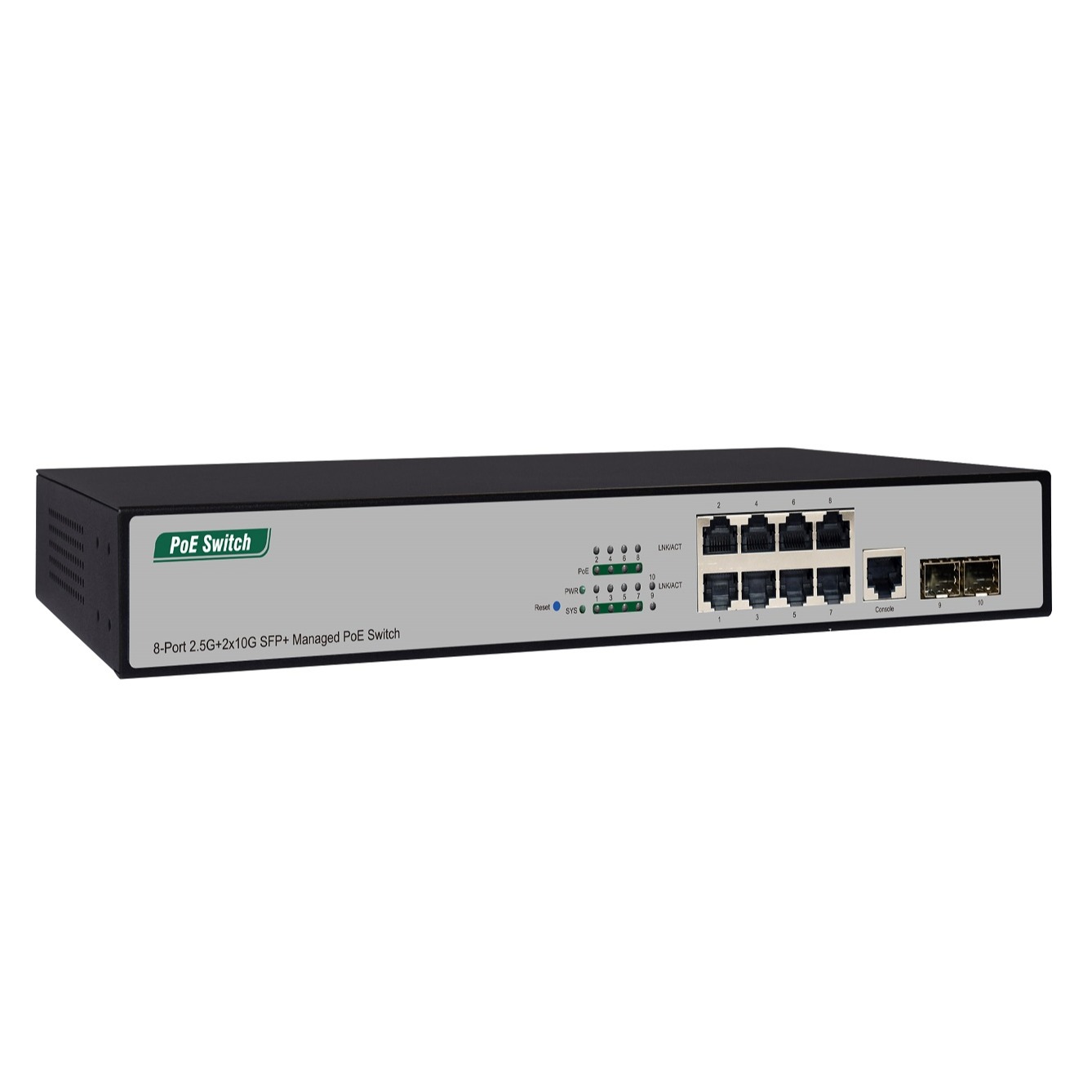

The PM6010GSM V1 is 8-Port 10/100/1000 Mbps auto-negotiation RJ45 Port and 2-port gigabit SFP Slots. port1-8 is PSE port, This conforms to IEEE802.3af/at/bt standard. and each RJ45 port supports MDI/MDIX automatic flip and wire speed forwarding functions. Among them, port1-4 support IEEE802.3bt standard output (60W.Max). Powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2 SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the PoE Switch is an ideal choice for small and medium business networking.

Product Features

  • Complies with IEEE802.3af/at/bt Standard;
  • Support RJ45 Auto-MDI/MDIX;
  • Supports IEEE802.3bt (at / af) standard, port 1-4 support 60W max, PoE total Budget 180W.
  • Auto detect power device;
  • PoE, main board and power supply are all in one;
  • Remote power and Data feeding up to 100m;
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
  • Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
  • Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
  • Support PD Alive function(the switch port is disconnected will automatically connected);


Product Specifications
Hardware Specification

Model

PM6010GSM V1

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad

IEEE802.3af, IEEE802.3at , IEEE 802.3bt

Interface

8*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)
2* 1000Mbps SFP Slots
1 Console Port

Indicator

PWR, LNK/ACT, PoE

Network media

10BASE-T: UTP category 3,4,5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

1000BASE-T: UTP category 5e, 5 cable(≤100m)
1000BASE-X: MMF, SMF

MAC Address Table

8K, Auto-learning, Auto-aging

jumbo frame

9216Bytes

Transfer Mode

Store-and-forward

Packet Forward Speed

14.88Mpps

Switching Capacity

20Gbps

Dimensions(L*W*H)

280*180*44mm

Fan Quantity

1

PoE Port

Port1~8

PoE Power on RJ45

Data Pairs 1/2(-),3/6(+)

Spare Pairs 4/5(-),7/8(+)

PoE Power Output

Voltage: 55V Power: Port1-4 Max 60W; Port5-8 Max 32W

PoE Power Budget

180W

Power supply

200W

Input Power Supply

110~240V AC, 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Common mode ±6KV Differential mode ±4KV;

Certification

CE, FCC ClassA

MTBF

>50000 hour

Electrostatic standard

Contact 6KV,air 8KV

green energy saving

Support IEEE(802.3az)

Software Specification

spanning  TreeIEEE  802.1D -Spanning Tree
IEEE  802.1w -Rapid SpanningTree
IEEE  802.1s -Multiple Spanning Tree
BPDU Guard
STP Root Guard
Loop Detection
VLANManagement VLAN
Private VLAN
Voice VLAN
Surveillance-VLAN
Q-in-Q (Double Tag)
802.1v Protocol VLAN
MAC-Based  VLAN
PortIEEE 802.3ad witch LACP(Dynamic)
Static Trunk
EEE
Jumbo Frame
Error-Disable
IGMP  SnoopingIGMP  Snooping v1/v2/v3
MLD Snooping v1/v2
MVR
L3Static Route
Static ARP
DHCP Server
QoS FeaturesHardware Queues
Class Of ServicePort Based
802.1p
CoS
DSCP
IP Precedence
TCP/UDP (IPv4/IPv6)
Rate LimitingIngress
Egress
Priority Queue SchedulingWRR
Strict Priority
DSCP & CS
IPv4 QoS (QCEs)
IPv6 QoS (QCEs)
SecurityPort Security
Port Isolation
IEEE802.1x AAA
ACLsL2+/L3/L4
IPv6 Support
Management Access List
Management ACL/Management ACE
IP Source Guard (IP-MAC-Port-VALN Binding)
IP Source Guard (IP-MAC-Port Binding)
Dynamic ARP Inspection
Storm Control
RADIUS/TACACS+
RADIUS Authentication (RFC2138)
DDoS Prevention
HTTPs and SSL (Secured Web)
SSH v1.5/v2.0 (Secured Telnet Session)
DHCP Snooping
DHCP Relay
ManagementSNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 groups)
Software Upgrade
Configuration Export/Import
DHCPClient
Option 82
Option 66
Option 67
Event/Error LogSyslog
Management Access FilteringConsole
SNMP
HTTP/HTTPS
Telnet
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED
UDLD
DNS Client
Traceroute
Ping
Cable Test
DDMI
NTP/ SNTP (RFC2030)
IPv6 SupportDual IPv6/IPv4 stack
IPv6 Web/SSL
IPv6 SNTP (Simple Network Time Protocol)
IPv6 Telnet / SSH
IPv6 Ping/Traceroute
IPv6 TFTP
IPv6 RADIUS/TACACS+
IPv6 SNMP
PoE ManagementPort Config
Alive Checking for PD
PoE Delay
PoE Schedule
ONVIFONVIF Deteciton
ONVIF Server(NLM)

Ordering information

Modelproduct information
PM6010GSML V18-Port Gigabit+2G SFP+1Console LCD Display Managed high PoE Switch(8-Port PoE,Port1-4 Support 802.3af/at/bt , Port5-8 Support 802.3af/at Standard)
