Model NO.
PM3012GSM V3
Quantity:
Product Overview

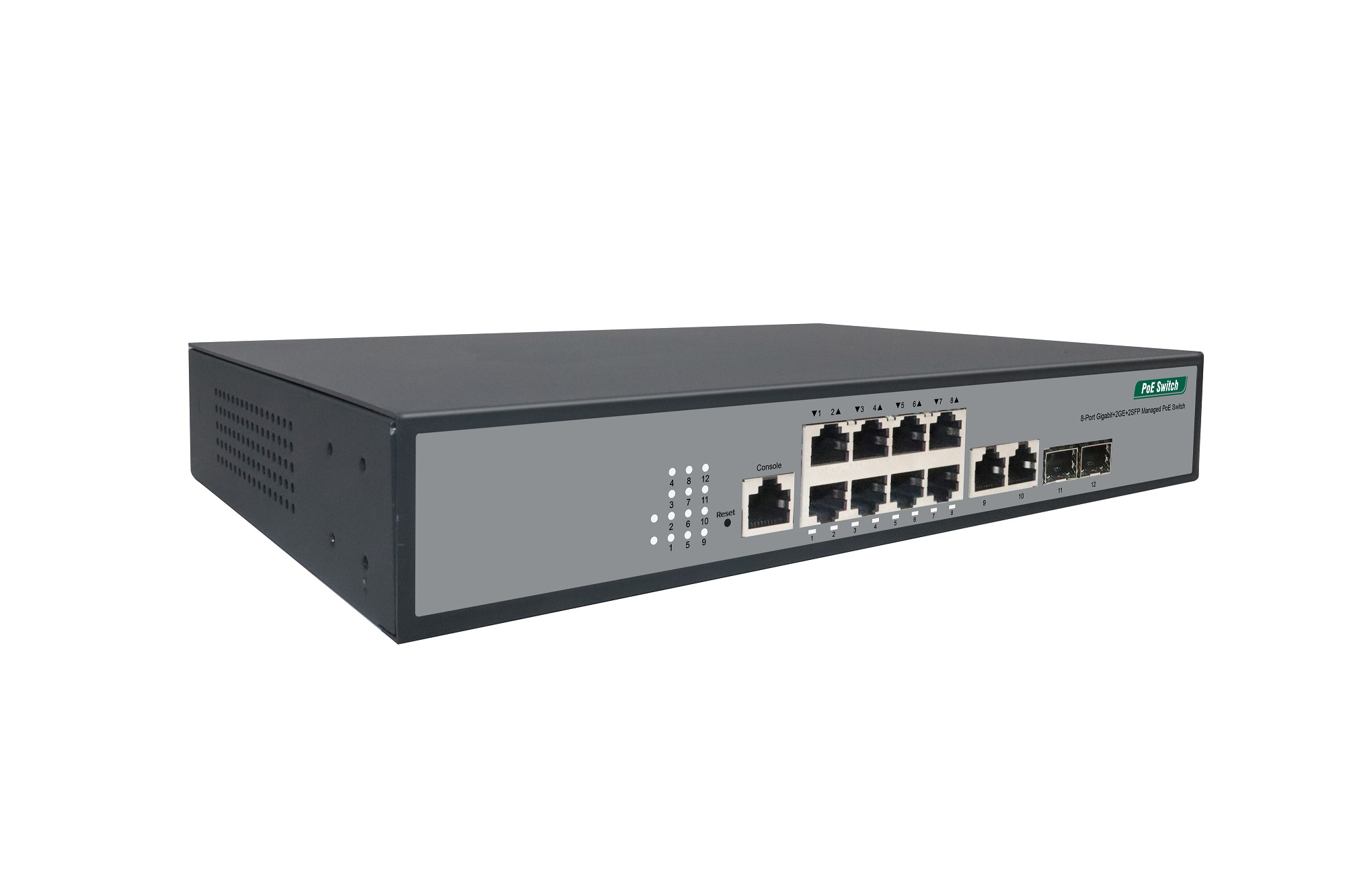

PM3012GSM V3 is a management Ethernet PoE switch independently developed by UNIPOE. It provides eight 10/100/1000M adaptive RJ45 ports and two 10/100/1000M + two SFP optical fibers for communication. All RJ45 ports support PoE power supply. Each port can be up to 32W. Supports static routing, complete security policies, QoS policies, and rich VLAN functions. It is easy to manage and maintain, and meets the networking and access requirements of enterprises, residential areas, Internet cafes, hotels, office networks, and campus networks.


Product Features
  • Support IEEE802.3 at standard, compatible with IEEE802.3 af electrical equipment (PD);
  • RJ45 support port auto flip (Auto MDI/MDIX);
  • Each port output power up to 32W;
  • Data transmission and power supply distance up to 100 meters:
  • Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Panel lights to monitor working state and help fault analysis;
  • Perfect security mechanism:
  • Galvanized steel metal shell design, excellent heat dissipation, to ensure the stable operation of products;
  • Support L2 STP/RSTP link protection technology;
  • Support manual convergence and dynamic convergence of two convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and can achieve load balancing, link backup;
  • Support Console, Telnet, SSH grade many management methods;
  • Support WEB and file upload and download management in TFTP mode;
  • Supports the watchdog function. When a PoE camera is disconnected, the system automatically detects and restarts, effectively reducing system maintenance costs:
  • Mainboard, Power supply, PoE (three in one)


Product Specifications
Hardware Specification

ModelPM3012GSM V3
Network media10BASE-T:    UTP category 3, 4, 5 cable(≤100m)
100BASE-TX:  UTP category 5, 5e cable(≤100m)
1000BASE-T:  UTP category 5e, 5 cable(≤100m)
1000BASE-X:  MMF, SMF
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at
Interface8 *10/100/1000Mbps PoE RJ45 port
2 *10/100/1000Mbps RJ45 port +2 * SFP port
1 *Console port
PoE portPort 1 ~ 8
PoE Power on RJ45Mode A  1/2(+), 3/6(-)
IndicatorPWR(Green) , LNK/ACT(Green) , PoE(Orange)
MAC Address Table8K, Auto-learning, Auto-aging
Jumbo frame10K Bytes
Transfer ModeStore-and-forward
Packet Forward Speed17.85Mpps
Packet buffer 4.1Mbit
Switching Capacity24Gbps
Dimensions(L*W*H)280*180*44mm
PoE Power OutputDC 55V  32W(MAX)
PoE total power130W
Power supply150W
Green energy savingIEEE 802.3az

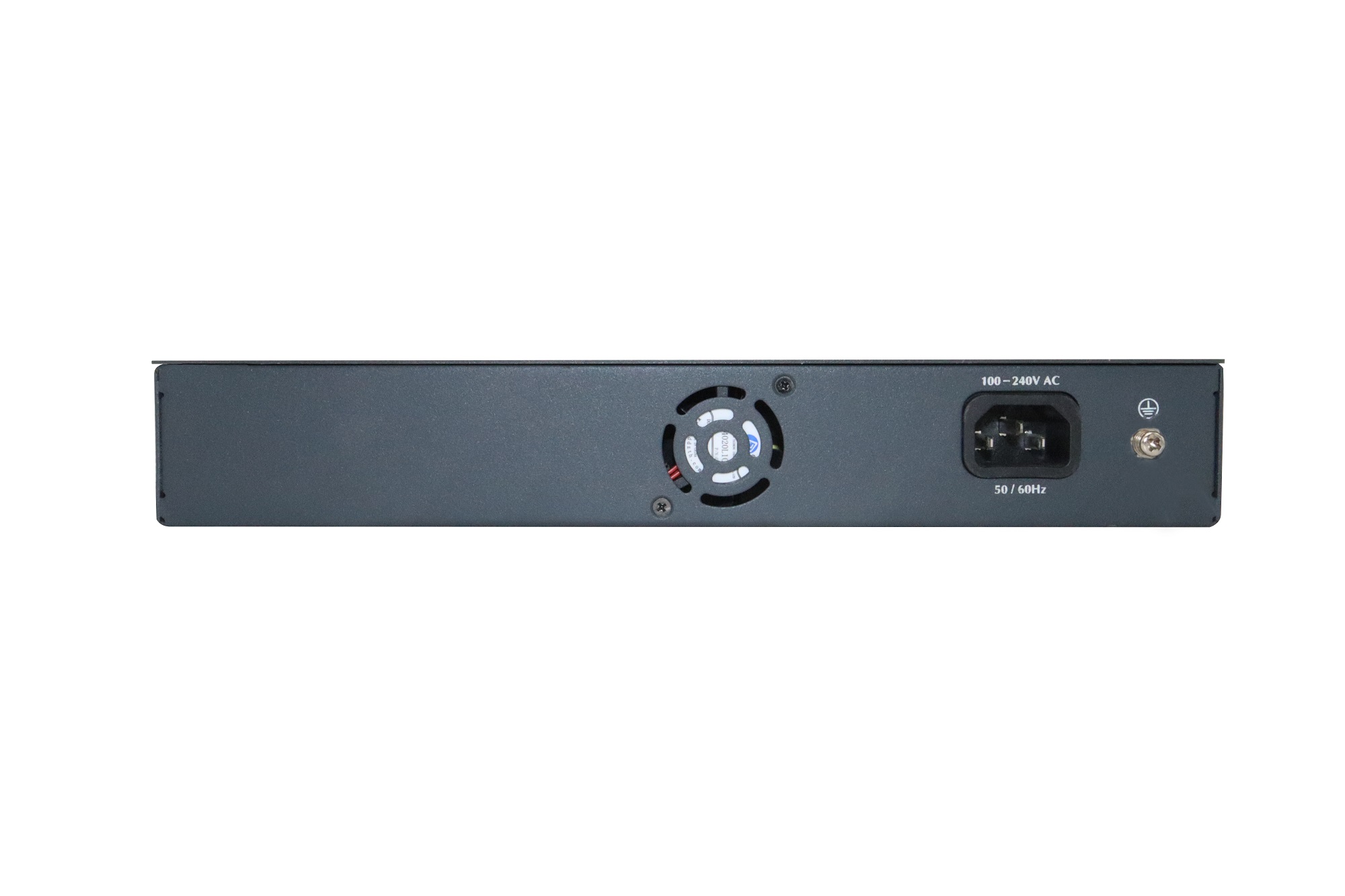

Input Power SupplyAC 100-240V 50/60Hz
Operating Temperature0°C ~ +40°C
Storage Temperature-40 °C ~ +70 °C
Operating Humidity10% ~ +90% non-condensing
Storage Humidity5% ~ +90% non-condensing
Surge ProtectionDifferential mode ±2KV  Common mode ±4KV
MTBF>50000 hours
Electrostatic standardContact±6KV, Air±8KV

Software Specification
Spanning TreeIEEE  802.1d -Spanning Tree
IEEE  802.1w -Rapid SpanningTree
IEEE  802.1s -Multiple Spanning Tree
BPDU Guard
STP Root Guard
Loop Detection
VLANManagement VLAN
Private VLAN
Voice VLAN
Surveillance-VLAN
Q-in-Q (Double Tag)
802.1v Protocol VLAN
MAC-Based  VLAN
PortIEEE 802.3ad witch LACP(Dynamic)
Static Trunk
EEE
Jumbo Frame
Error-Disable
IGMP SnoopingIGMP  Snooping v1/v2/v3
MLD Snooping v1/v2
MVR
L3Static Route
Static ARP
DHCP Server
QoS FeaturesHardware Queues
Class Of ServicePort Based
802.1p
CoS
DSCP
IP Precedence
TCP/UDP (IPv4/IPv6)
Rate LimitingIngress
Egress
Priority Queue SchedulingWRR
Strict Priority
DSCP & CS
IPv4 QoS (QCEs)
IPv6 QoS (QCEs)
SecurityPort Security
Port Isolation
IEEE802.1x AAA
ACLsL2+/L3/L4
IPv6 Support
Management Access List
Management ACL/Management ACE
IP Source Guard (IP-MAC-Port-VALN Binding)
IP Source Guard (IP-MAC-Port Binding)
Dynamic ARP Inspection
Storm Control
RADIUS/TACACS+
RADIUS Authentication (RFC2138)
DDoS Prevention
HTTPs and SSL (Secured Web)
SSH v1.5/v2.0 (Secured Telnet Session)
DHCP Snooping
DHCP Relay
ManagementSNMP (v1, v2c, v3)
RMON ( 1, 2, 3 & 9 groups)
Software Upgrade
Configuration Export/Import
DHCPClient
Option 82
Option 66
Option 67
Event/Error LogSyslog
Management Access FilteringConsole
SNMP
HTTP/HTTPS
Telnet
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED
UDLD
DNS Client
Traceroute
Ping
Cable Test
DDMI
NTP/ SNTP (RFC2030)
IPv6 SupportDual IPv6/IPv4 stack
IPv6 Web/SSL
IPv6 SNTP (Simple Network Time Protocol)
IPv6 Telnet / SSH
IPv6 Ping/Traceroute
IPv6 TFTP
IPv6 RADIUS/TACACS+
IPv6 SNMP
PoE ManagementPort Config
Alive Checking for PD
PoE Delay
PoE Schedule
ONVIFONVIF Deteciton
ONVIF Server(NLM)



Ordering information
ModelProduct information
PM3012GSM V38GE(PoE)+ 2GE+2*SFP Ethernet Managed PoE Switch (8-port PoE, 802.3af/at)
