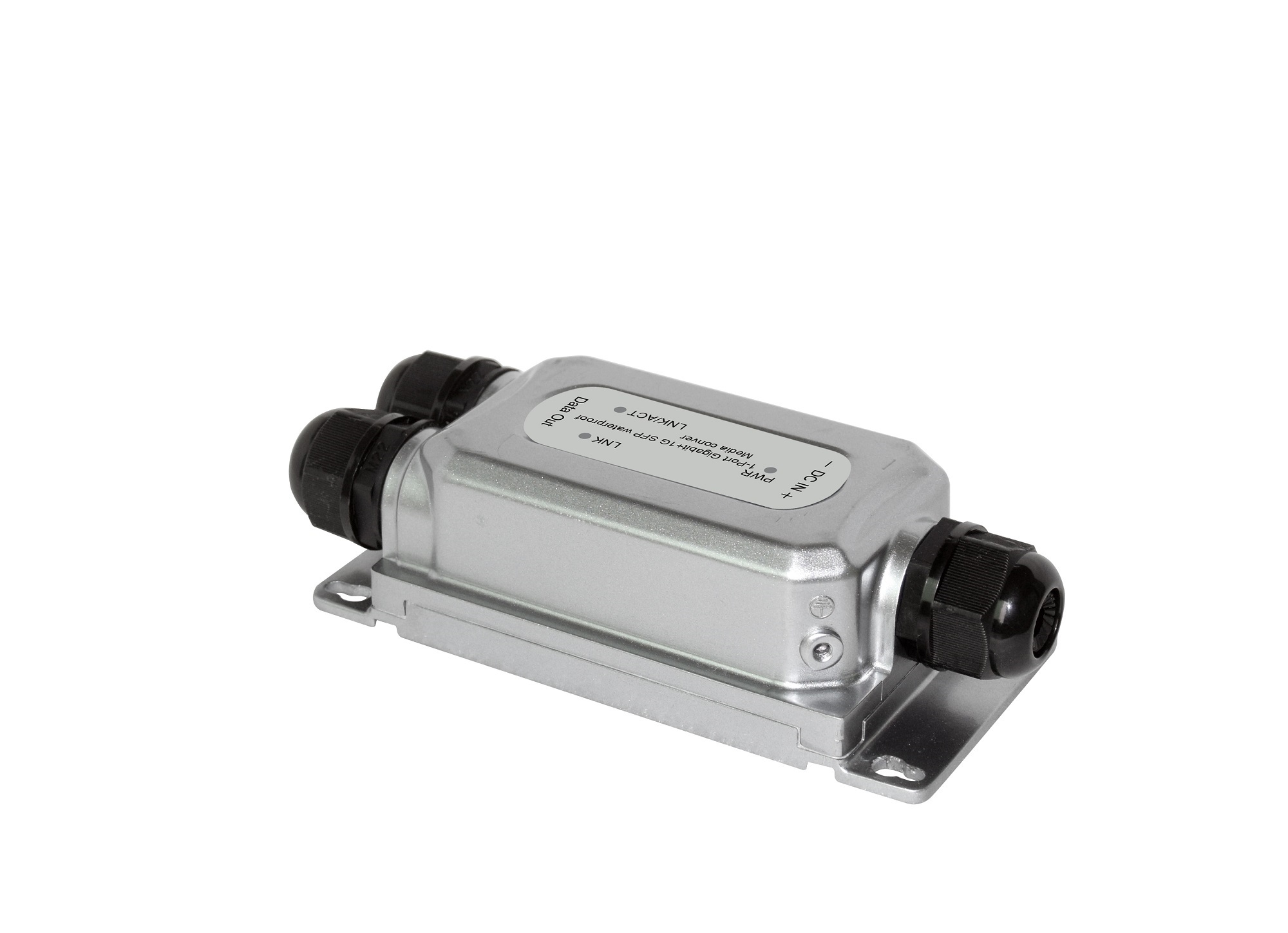

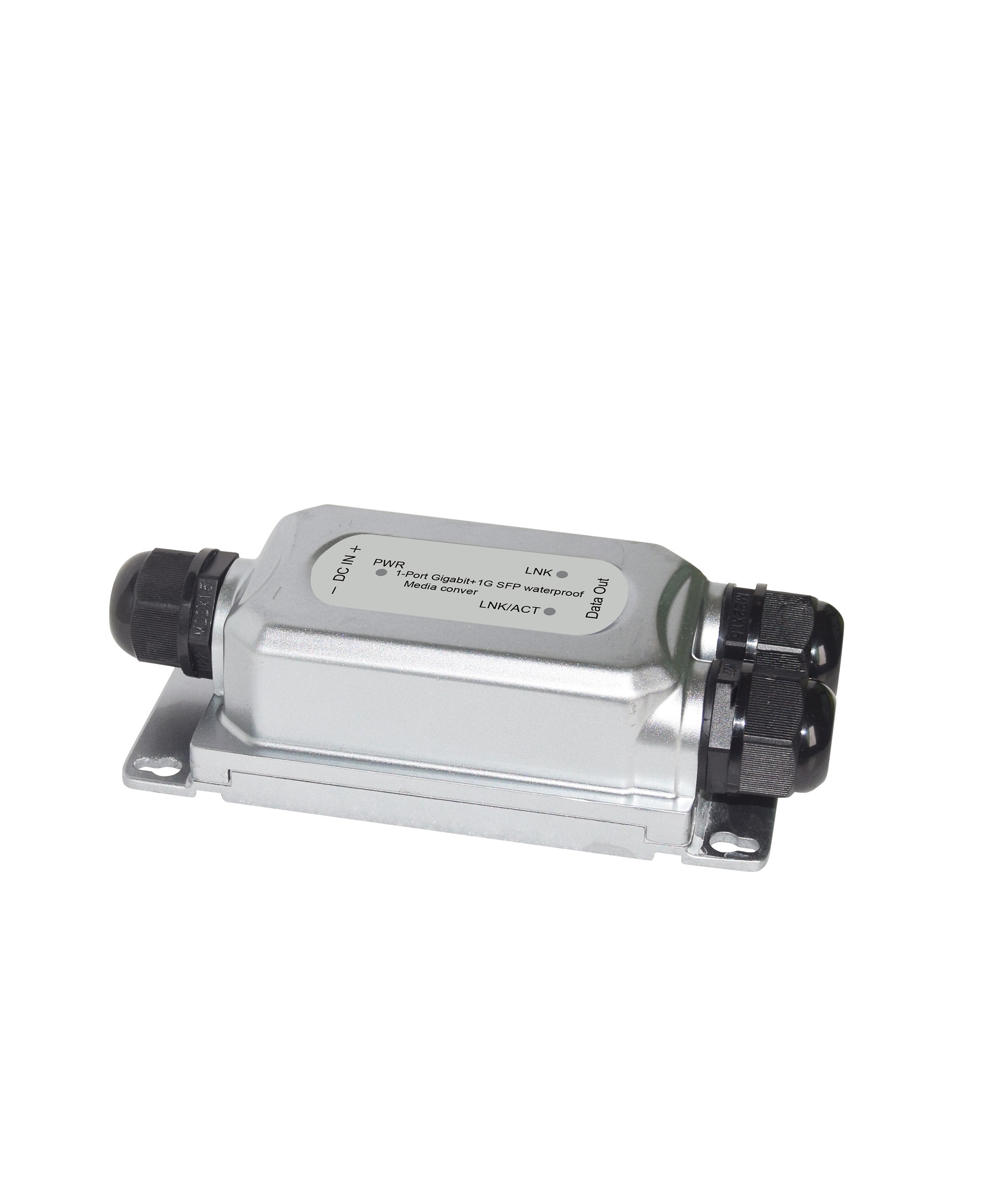

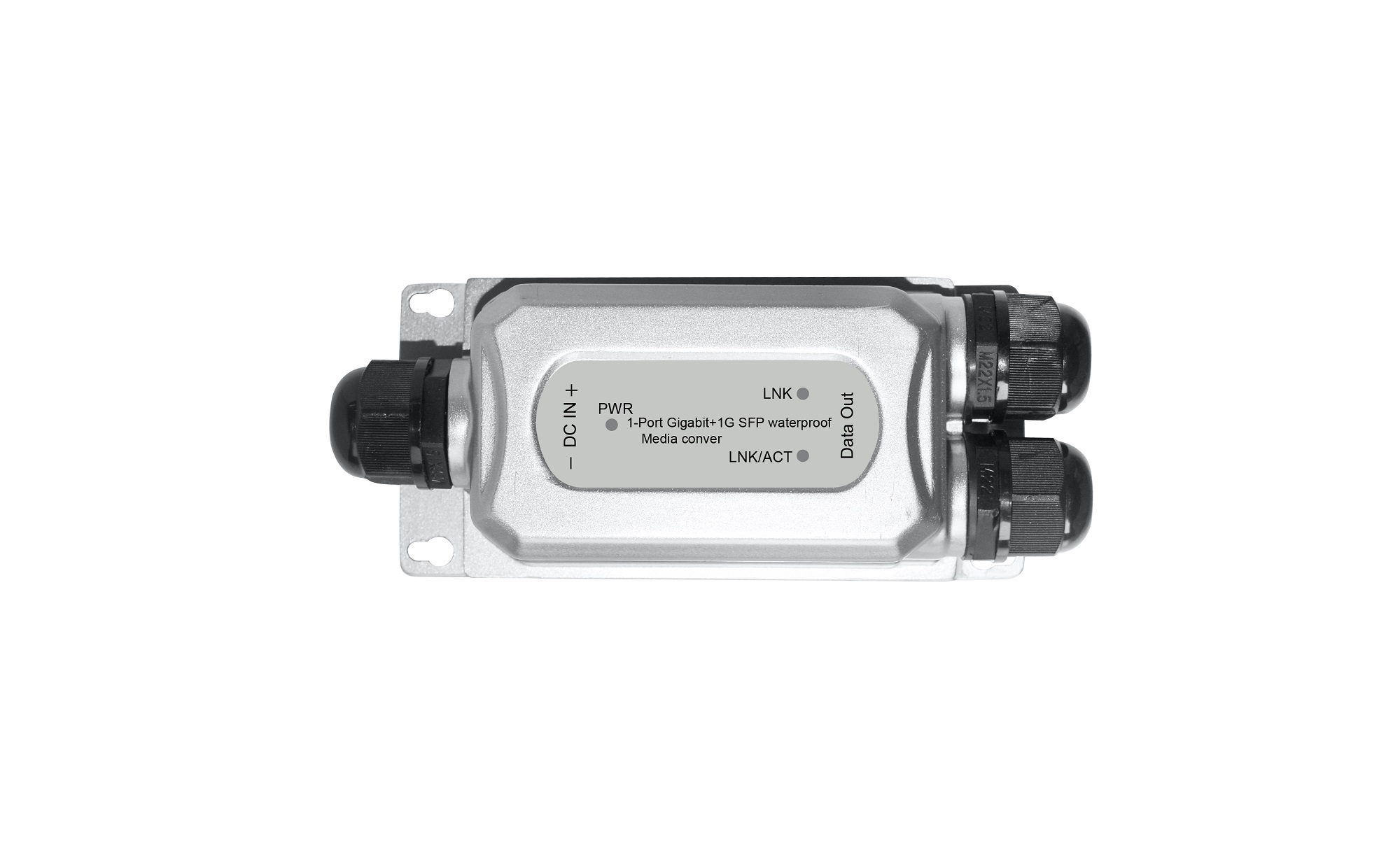

1-Port Gigabit+1G SFP waterproof Media conver
1-Port Gigabit+1G SFP waterproof Media conver
1-Port Gigabit+1G SFP waterproof Media conver
1-Port Gigabit+1G SFP waterproof Media conver

1-Port Gigabit+1G SFP waterproof Media conver

Model NO.:
PM3002GSF-W V1
Delivery:

Product Overview

PM3002GSF-W V1 contains 1x10/100/1000Mbps RJ45 ports and 1x1000Mbps SFP,  RJ45 port support PoE functions. The PoE ports can automatically detect and supply power to IEEE802.3af/at compliant Powered Devices (PD). The electrical power and data transmission on the same cable can expand your network to the places where no power lines or outlets,  where you can install devices such as APs,  IP cameras,  or IP phones etc.

Professional outdoor shell design,  adapt to a variety of harsh environment,  with high stability,  reliability,  industrial level,  wide temperature. The whole machine does not need power adapter,  convenient outdoor environment and indoor monitoring equipment is not easy to take electricity.

Product Features

  • Support IEEE802.3 at standard,  compatible with IEEE802.3 af by electrical equipment (PD);
  • Stand-up output power up to 30 W;
  • Support IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
  • Panel lights to monitor working state and help fault analysis;
  • Perfect security mechanism;
  • Line-speed forwarding intelligent identification;
  • Intelligent protection and power supply;
  • Working temperature:  -20 ℃ to 60℃;
  • Professional outdoor shell design,  adapt to a variety of harsh environment;

Product Specifications

Model

PM3002GSF-W V1

Interface

1*10/100/1000Mbps The RJ45 port through consultation

1x1000Mbps SFP

1DC IN

PoE stand

IEEE802.3af/at

PoE port

1

PoE port output

Max 30W

RJ45 PoE power supply

Mode A  Anode1/2   Cathode3/6

Indicator

PWR(Green), LNK/ACT(Green), LNK(Green)

Network media

10BASE-T:    UTP category 3, 4, 5 cable (≤100m)

100BASE-TX:  UTP category 5,  5e cable (≤100m)

1000BASE-T:  UTP category 5,  5e cable (≤100m)

1000BASE-X;  UTP category 5,  5e cable (≤100m)

MAC Address Table

2K, Automatic study,  automatic updates

jumbo frame

9216Bytes

Packet buffer

2M bit

Transfer Mode

Store-and-forward

Packet forwarding rate

2.98Mpps

Bandwidth

4Gbps

Device Dimension

150*73*44MM

Input voltage

DC 24-56V(With boost module)

Input Current

2Amax, @24VDC , (Full Load)

Operating Temperature

-20℃~60℃

Storage Temperature

-40℃~80℃

Operating Humidity

10% ~ 90%  non-condensing

Storage Humidity

5% ~ 90%  non-condensing

Surge Protection

Common mode ±6KV,  differential mode ±4KV

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, air 8KV

Weather Rating

IP67

Vandal Proof

IK10

Ordering information

Model

product information

PM3002GSF-W V1

1-Port Gigabit+1G SFP waterproof Media conver
