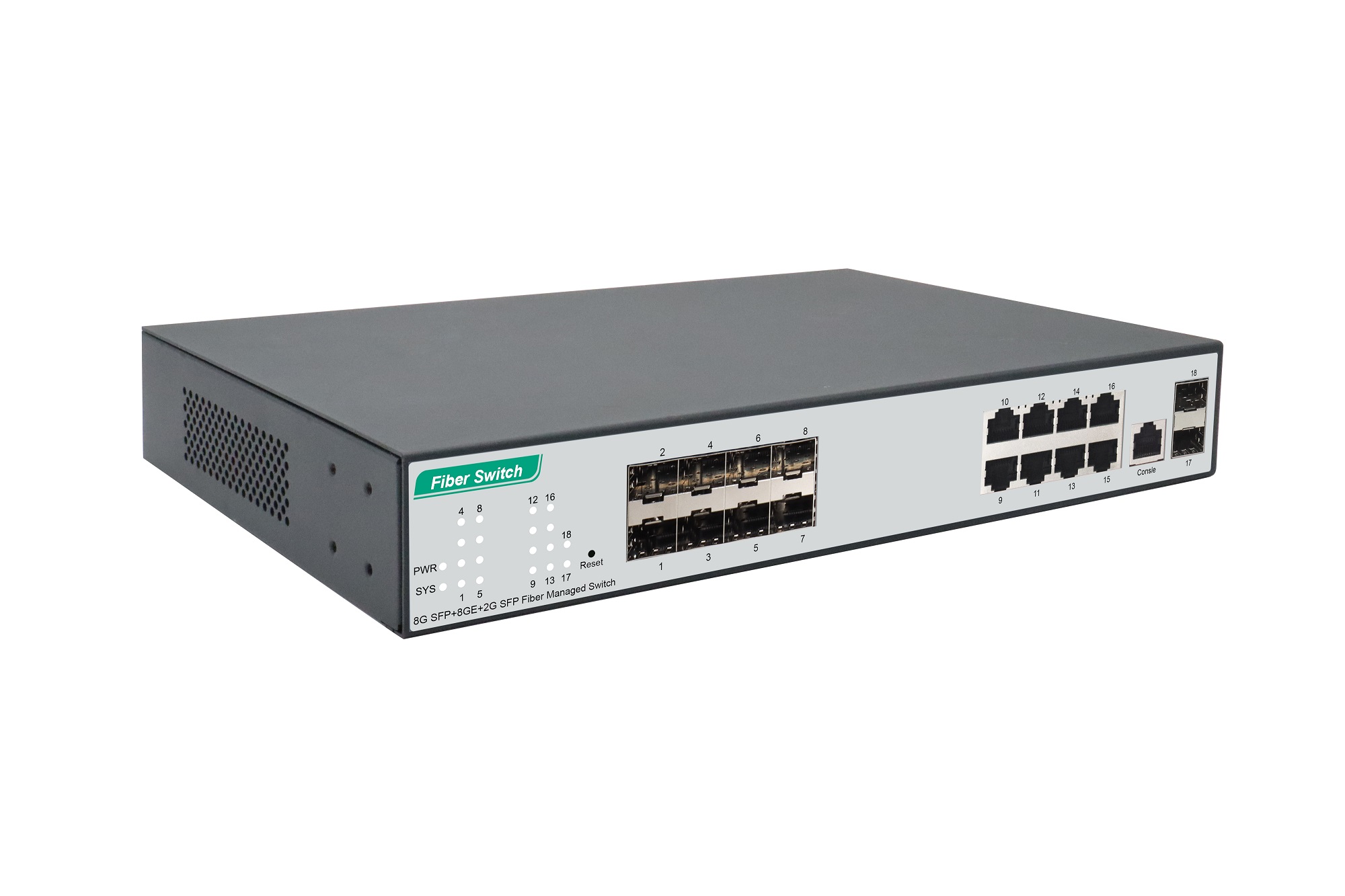

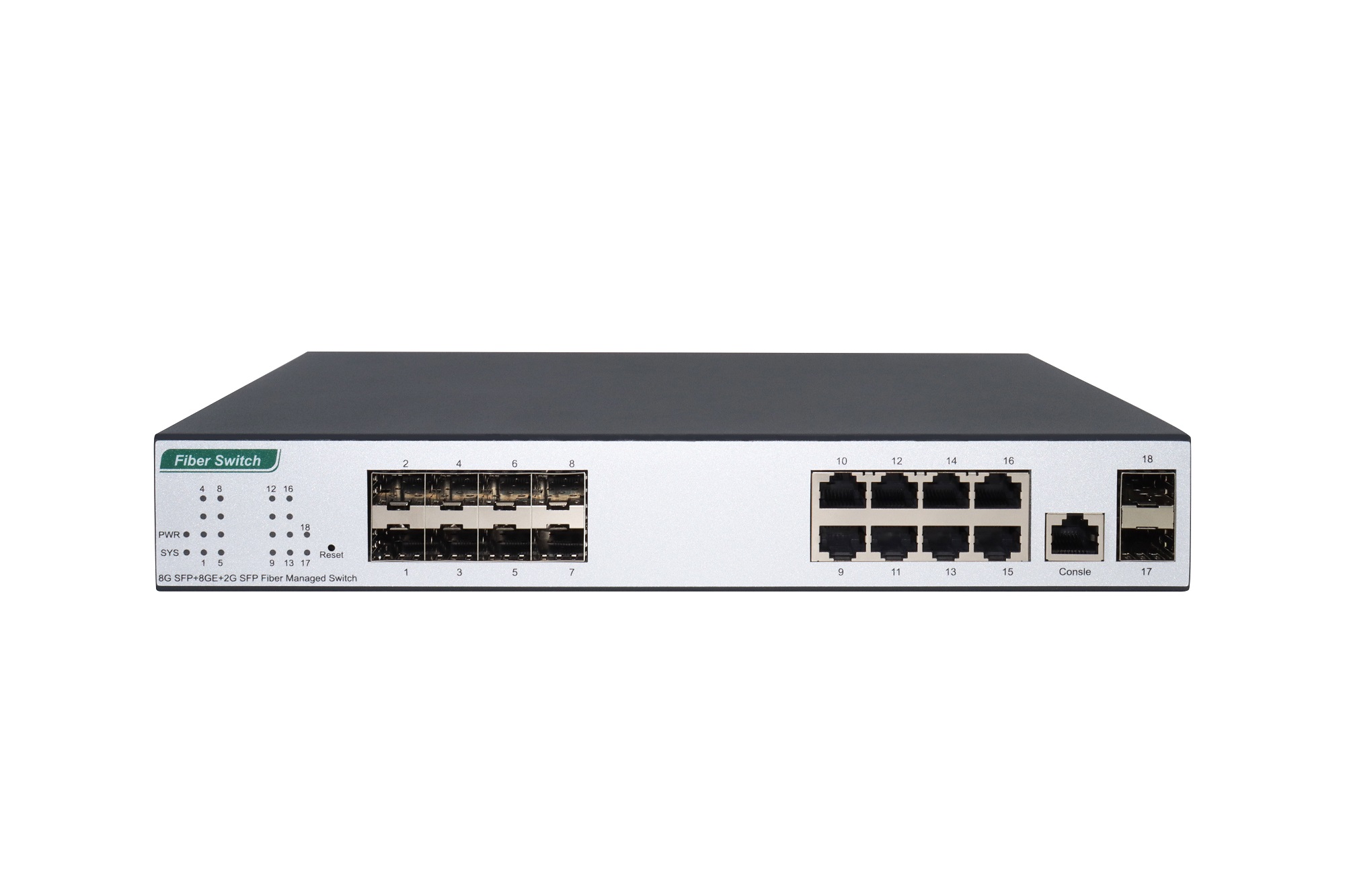

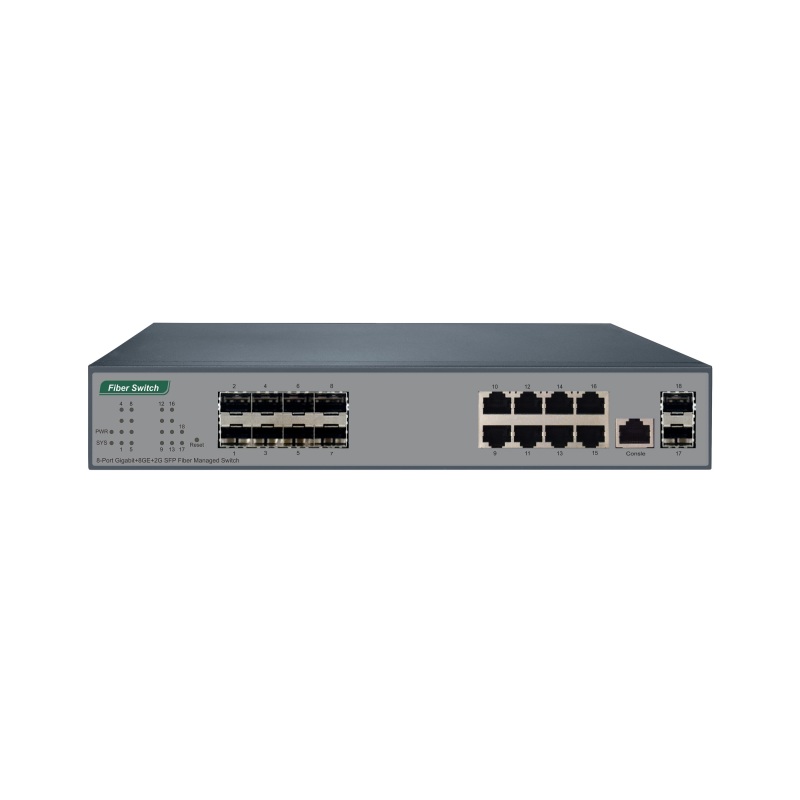

8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch
8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch
8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch
8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch
8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch
8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch
8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch

8-Port Gigabit+ 8GE + 2G SFP Fiber Managed Switch

Model NO.
PM218GM V1
Quantity:

 Product Overview

The PM218GM V1 provides 8*1000Mbps SFP Slot and 2G SFP Slots+ 8*10/100/1000Mbps RJ45 ports, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 2G SFP+ slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the Switch is an ideal choice for WIFI coverage, Internet cafes, computer rooms, and so on.

Product Features

  • Conform to the IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3x standard;
  • RJ45 supports automatic port rollover (Auto MDI/MDIX) ;
  • Panel lights to monitor working state and help fault analysis;
  • Supports IEEE802.3x full duplex flow control and Backpressure half duplex flow control;
  • Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;
  • Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring,
         STP/RSTP/MSTP,Link Aggregation Control Protocol and 802.3x Flow Control function;
  • Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;
  • Data exchange adopts store-and-forward mode and line speed forwarding can be intelligently identified;


Product Specifications

Hardware Specification

ModelPM218GM V1
StandardIEEE 802.3,  IEEE 802.3u,  IEEE 802.3ab ,  IEEE 802.3z,   IEEE 802.3x,    IEEE 802.1X,  IEEE 802.1q ,  IEEE 802.1p,  IEEE 802.1d ,  IEEE 802.1w,  IEEE 802.3ad
Interface8*1000Mbps SFP Slots
8*10/100/1000Mbps RJ45 Ports
2*1000 SFP Slots
1*Console Port
IndicatorPWR(GREEN),   LNK/ACT(GREEN),   SYS(GREEN)
Network media10BASE-T: UTP category 3,       4,       5 cable(≤100m)
100BASE-TX: UTP category 5,        5e cable(≤100m)
1000BASE-T: UTP category 5e,        5 cable(≤100m)
1000BASE-X: MMF,        SMF
MAC Address Table8K,        Auto-learning,        Auto-aging
Jumbo frame10000Bytes
Transfer ModeStore-and-forward
Packet Forward Speed26.78Mpps
Switching Capacity36Gbps
Packet Buffer4.1Mbit
Dimensions(L*W*H)280*180*44mm
Fan QuantityOne
Green energy savingIEEE 802.3az
Surge ProtectionCommon mode±4KV Different mode±2KV
Electrostatic standardContact±6KV,        air±8KV

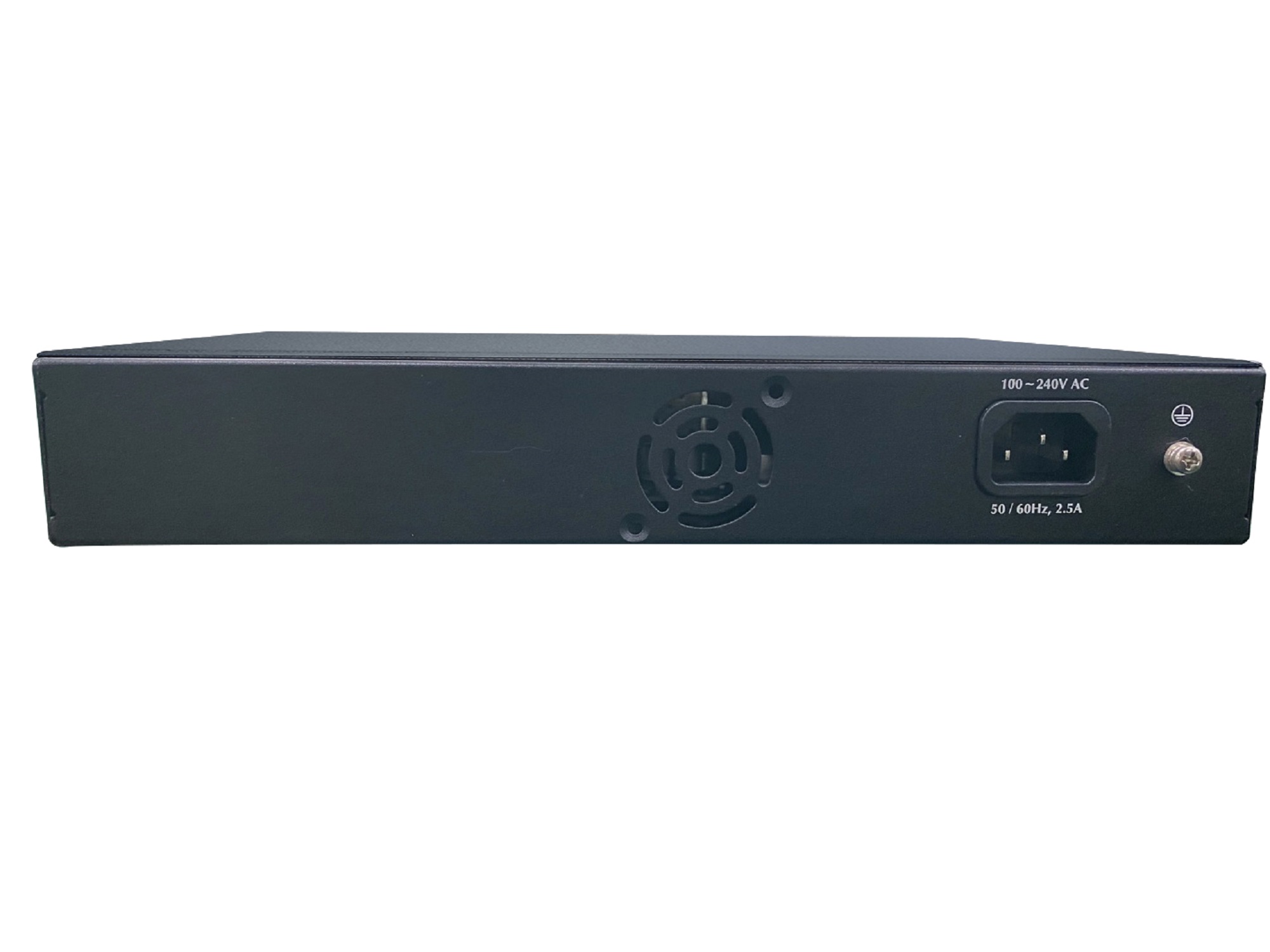

Input Power Supply100-240V/AC 50/60Hz
Operating Temperature0°C ~+ 40 °C
Storage Temperature-40 °C ~ +70 °C
Operating Humidity10% ~ 90% non-condensing
Storage Humidity5% ~ 90% non-condensing
MTBF>100000 hour


Software Function List
L2 Features


MAC Address Table
MAC Address Size
MAC Aging Time
MAC Filter
MAC Notification





Basic Management
Console/Telnet/SSH
Http/Https,   SSL/TLS
FTP/TFTP
Syslog
SNMP(v1/v2c/v3),   SNMP Trap
SNTP/NTP
CPU protect
Software/Hardware watchdog
Firmware Upgrade/Backup
Ping/Traceroute






Port Config
Bandwidth Control
Flow Control
EEE
MTU
CFM(802.1ag)
EFM OAM(802.3ah)
DDM
Storm Control
Port Isolation
Port Security
Virtual Cable Test
ULDP/Cisco UDLD
DiscoveryLLDP(802.1ab)
LLDP-MED
Link AggregationStatic
LACP(802.3ad)
Load Balance(src-mac/dst-mac/src-ip/dst-ip)
Max groups and ports per group
VLANVLAN(802.1Q 4K)
Access/Trunk/Hybrid
Private VLAN
VLAN Filter
MAC-based VLAN
Protocol-based VLAN
IP Subnet-based VLAN
Voice VLAN
GVRP/GMRP
QinQ/Selective-QinQ/Flexible QinQ
VLAN Translation/N:1 VLAN Translation
Guest VLAN
Network Loop DetectionLoopback Detection
ERPS
Spanning TreeSTP/RSTP/MSTP
MSTP Support 64 instance
BPDU Guard/Root Guard/BPDU Tunnel
ARPStatic ARP
ARP Scanning Prevention
ARP Spoofing Prevention
ARP Guard
Gratuitous ARP
Dynamic ARP Inspection
ARP Quantity Control
IPv4 Related Function
ICMPAnti ICMP Attack
ICMP Rate Limit
ICMP Unreachable Drop
IP ForwardStatic Route
Route Aggregation
Control MulticastDCSCM
Multicast VALNMulticast VALN
IGMPIGMP SNOOPING V1/V2/V3
Fast Leave
IGMP Proxy
DHCPDHCP Server
DHCP Client/BOOTP
DHCP Relay
DHCP Snooping
DHCP Option 82/43/60/61/67
IPv6 Related Function
IPv6 BasicIPv6 ND Snooping


DHCPv6
DHCPv6 Server
DHCPv6 Relay
DHCPv6 Snooping
IPv6 SAVI
Security RA
IPv6 Unicast RoutingStatic Route
IPv6 Multicast RoutingMLD v1/V2 Snooping
IPv6 FeaturesSNMP over IPv6 Support
HTTP over IPv6 Support
SSH over IPv6 Support
DNS over IPv6 Support
IPv6 ping/traceroute Support
IPv6 Telnet Support
IPv6 Radius+ Support
IPv6 Tacacs+ Support
IPv6 SNTP/NTP Support
IPv6 FTP/TFTP Support
IPv6 IPSec Support
IPv6 ACL
QoS(Quality Of Service)
BasicTrust COS/DSCP
Trust Port
SchedulingSP
WRR
WDRR
PolicyMap StreamBased on VLAN
Based on COS/DSCP
Aggregate PolicyMap
Ingress PolicyMap
PolicingCAR Stream Shaping(leak algorithm)
Ingress Policing
RewriteCOS/802.1p Priority
IP Precedence
IPv4 DSCP/IPv6 DSCP
drop-precedence
internal-priority
Ingress/Egress Rewrite
QueuingDSCP to DSCP mapping
DSCP to DP mapping
DSCP to Queue mapping
COS to DP mapping
COS to Queue mapping
ACL

IP-ACL
SIP/DIP
IP Protocol
IP Priority(DSCP,       TOS,        Precedence)
TCP,       UDP src,       dst Port
MAC-ACLSRC/DST MAC
VLAN
COS
Tag/Untag
IP-MAC ACLMAC-ACL and IP-ACL
User-defined ACLBase on user defined profile
ACL FeaturesBased on time period ACL
ACL on VLAN
Based on ACL Stream
Security
802.1xPort Based Authentication
Support EAPoR
MAC based Authentication
Guest VLAN
MABBased on Port Authentication
Based on MAC Authentication
MAC Address Count LimitBased on Port
Based on VLAN
IP Address Count LimitBased on Port
Based on VLAN
Access ManagementBased on source mac and IP address
Deny DoS AttackTCP Flag
TCP Flagment
IP Segment
ICMP
TACACS+Standard Support
RadiusStandard Support
Client,        Support MD5
SSLOpenssl 1.1.0
Redundancy Related Function
MRPPCompatiable ERRP
ULPPUplink Protection Protocol
Smart Link/Monitor Link
ULSMUplink State Monitor
Flow Monitor Function


Mirror
Support one to one,        multi to one
Port based mirror,        support ingress,        egress,        and both
CPU based mirror
Flow based mirror
RSPAN

Ordering information

Model

product information

PM218GM V1

8G SFP + 8GE + 2G SFP Fiber Managed Switch
