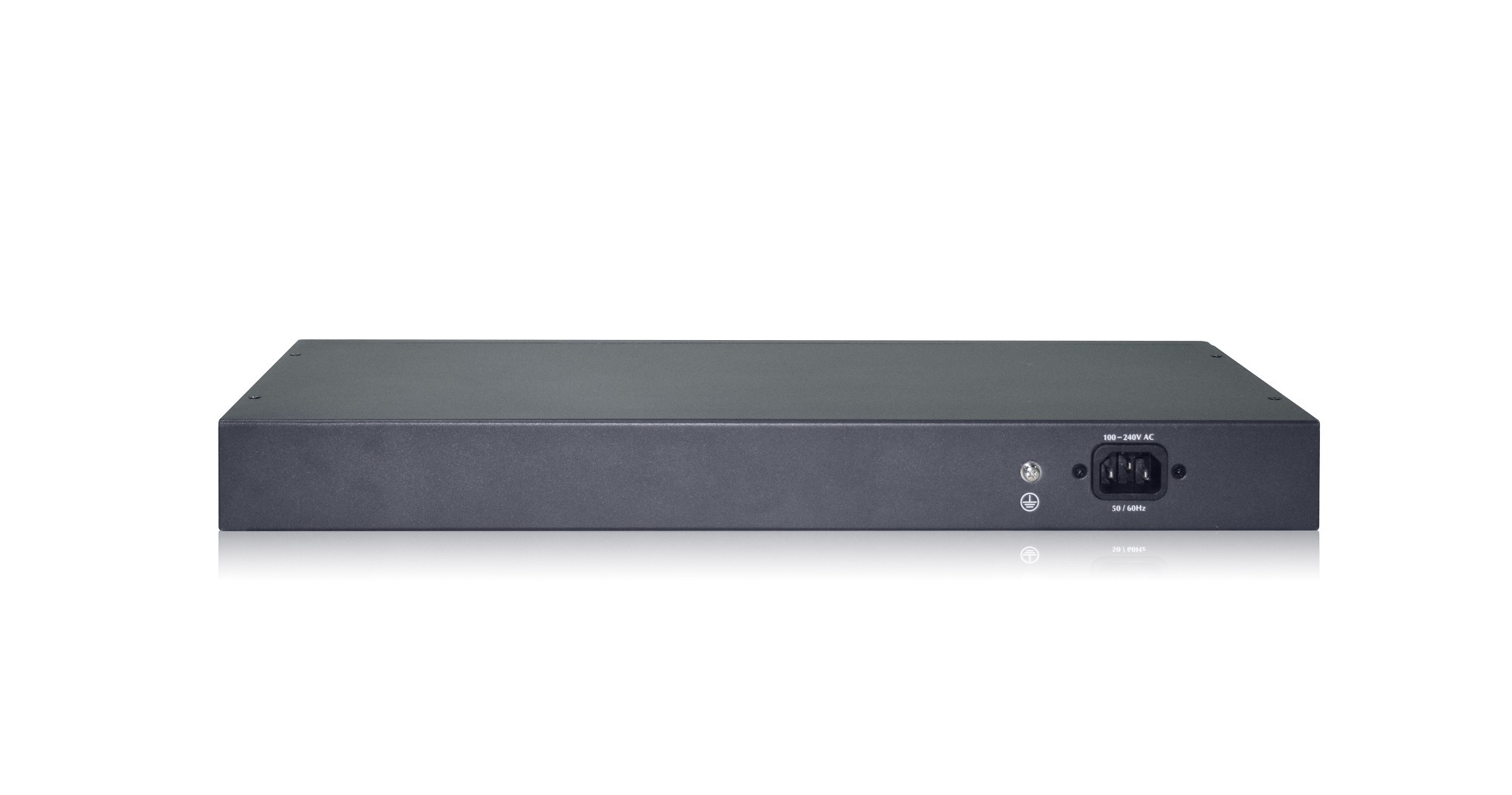

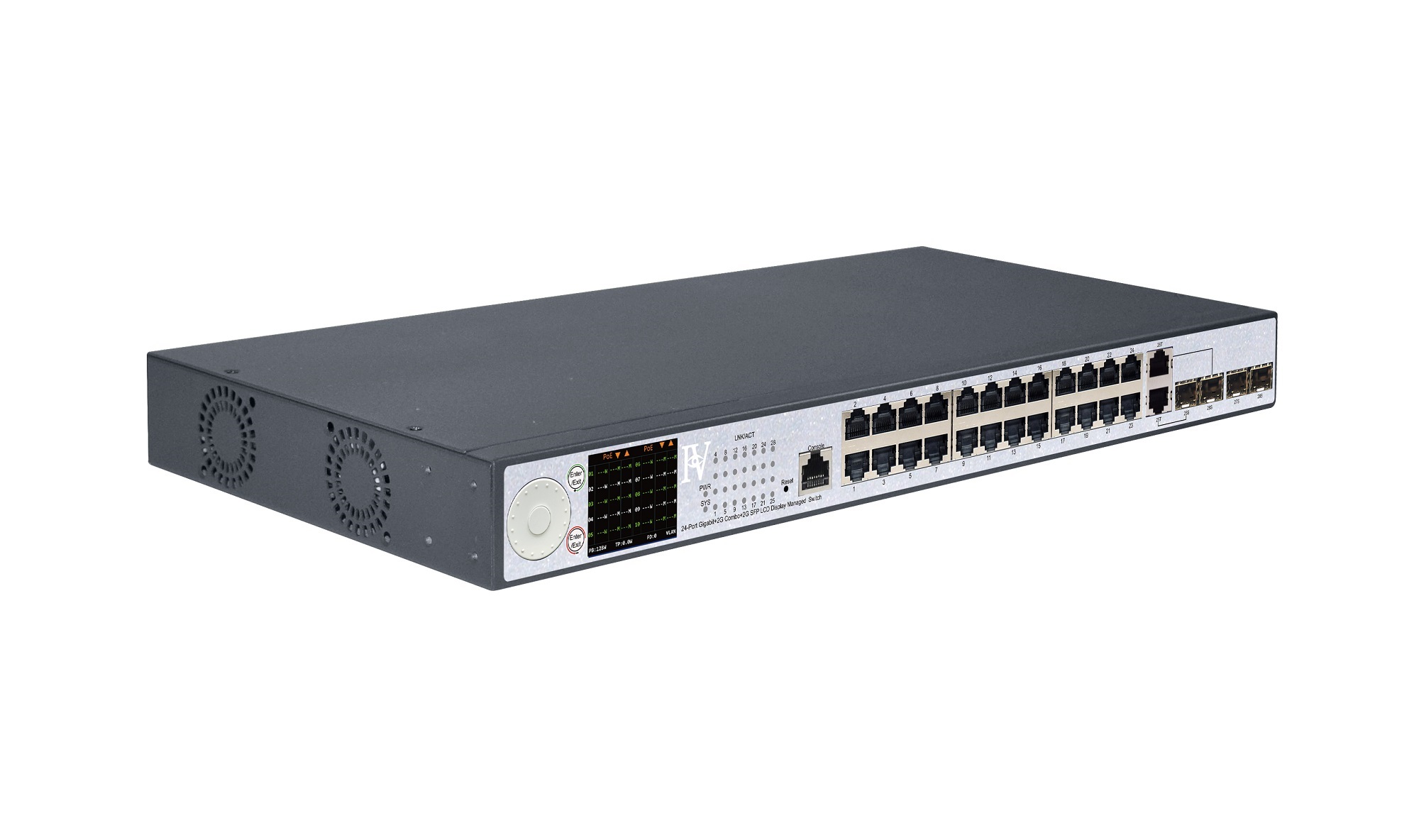

24-Port Gigabit+2G Combo+2G SFP+1Console LCD Display Managed Switch

Model NO.
PM130GML V1
Minimum order quantity:
1
Quantity:

Product Overview

The PM130GML V1 provides 24 10/100/1000Mbps RJ45 ports, 2G Combo ports and 2G SFP ports, The switch also comes equipped with 2 SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. With all these advanced features, the Switch is an ideal choice for small and medium business networking.

LCD can display the color screen logo, increase the bandwidth display, display the working status, accurately judge the port working condition and load condition, so as to help customers and wiring engineers find and solve problems in time, eliminate network faults, improve work efficiency and engineering quality.



Product Features

  • Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x Standard;
  • Support RJ45 Auto-MDI/MDIX;
  • LCD to monitor working state and help fault analysis;
  • Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
  • Supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function;
  • Web, CLI (Console Port, Telnet, SSH), SNMP and RMON bring abundant management policies;

Product Specifications

Hardware Specification

Model

PM130GML V1

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad

Interface

24*10/100/1000Mbps RJ45 Port (Auto Negotiation/Auto MDI/MDIX)

2*10/100/1000Mbps Combo ports
2* 100/1000Mbps SFP Slots
1 Console Port

Indicator

PWR, LNK/ACT, SYS

Network media

10BASE-T: UTP category 3, 4, 5 cable(≤100m)

100BASE-TX: UTP category 5, 5e cable(≤100m)

1000BASE-T: UTP category 5e, 5 cable(≤100m)
1000BASE-X: MMF, SMF

MAC Address Table

8K, Auto-learning, Auto-aging

jumbo frame

9216Bytes

Transfer Mode

Store-and-forward

Packet Forward Speed

41.66Mpps

Switching Capacity

56Gbps

Packet Buffer

4.1Mbit

Dimensions(L*W*H)

440*207*45mm

Fan Quantity

Fanless

Input Power Supply

100~240V AC, 50/60Hz

Operating Temperature

0°C ~ 40 °C

Storage Temperature

-40 °C ~ 70 °C

Operating Humidity

10% ~ 90% non-condensing

Storage Humidity

5% ~ 90% non-condensing

Surge Protection

Common mode ±6KV  Differential mode ±4KV:

MTBF

>50000 hour

Electrostatic standard

Contact 6KV, Air 8KV

Green energy saving

Support IEEE 802.3az

Software Specification

spanning  Tree

IEEE  802.1D -Spanning Tree

IEEE  802.1w -Rapid SpanningTree

IEEE  802.1s -Multiple Spanning Tree

BPDU Guard

STP Root Guard

Loop Detection

VLAN

Management VLAN

Private VLAN

Voice VLAN

Surveillance-VLAN

Q-in-Q (Double Tag)

802.1v Protocol VLAN

MAC-Based  VLAN

Port

IEEE 802.3ad witch LACP(Dynamic)

Static Trunk

EEE

Jumbo Frame

Error-Disable

IGMP  Snooping

IGMP  Snooping v1/v2/v3

MLD Snooping v1/v2

MVR

L3

Static Route

Static ARP

DHCP Server

QoS Features

Hardware Queues

Class Of Service

Port Based

802.1p

CoS

DSCP

IP Precedence

TCP/UDP (IPv4/IPv6)

Rate Limiting

Ingress

Egress

Priority Queue Scheduling

WRR

Strict Priority

DSCP & CS

IPv4 QoS (QCEs)

IPv6 QoS (QCEs)

Security

Port Security

Port Isolation

IEEE802.1x AAA

ACLs

L2+/L3/L4

IPv6 Support

Management Access List

Management ACL/Management ACE

IP Source Guard (IP-MAC-Port-VALN Binding)

IP Source Guard (IP-MAC-Port Binding)

Dynamic ARP Inspection

Storm Control

RADIUS/TACACS+

RADIUS Authentication (RFC2138)

DDoS Prevention

HTTPs and SSL (Secured Web)

SSH v1.5/v2.0 (Secured Telnet Session)

DHCP Snooping

DHCP Relay

Management

SNMP (v1, v2c, v3)

RMON ( 1, 2, 3 & 9 groups)

Software Upgrade

Configuration Export/Import

DHCP

Client

Option 82

Option 66

Option 67

Event/Error Log

Syslog

Management Access Filtering

Console

SNMP

HTTP/HTTPS

Telnet

Port Mirroring

LLDP (IEEE802.1AB)

LLDP-MED

UDLD

DNS Client

Traceroute

Ping

Cable Test

DDMI

NTP/ SNTP (RFC2030)

IPv6 Support

Dual IPv6/IPv4 stack

IPv6 Web/SSL

IPv6 SNTP (Simple Network Time Protocol)

IPv6 Telnet / SSH

IPv6 Ping/Traceroute

IPv6 TFTP

IPv6 RADIUS/TACACS+

IPv6 SNMP

ONVIF

ONVIF Deteciton

ONVIF Server(NLM)

Ordering information

Model

product information

PM130GML V1

24-Port Gigabit+2G Combo+2G SFP+1Console LCD Display Managed switch
