Model NO.
PM112GM-V1
Quantity:
Product Overview
PM112GM V1 is a management switch independently developed by Uniop, with 8 10/100/1000Mbps adaptive RJ45 ports and 2 optical multiplexing ports. Supports static routing, provides complete security policies, QoS policies, and diversified VLAN functions, and is easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, Internet cafes, hotels, office networks, and campus networks.


Product Features
  •  Complies with IEEE802.3, IEEE802.3U, IEEE802.3AB, IEEE802.3Z, IEEE802.3X standards:
  •  RJ45 supports automatic port flip (Auto MDI/MDIX):
  •  Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control:
  •  Panel indicators monitor working status and assist in fault analysis:
  •  Perfect security mechanism:
  •  Galvanized steel metal shell design, excellent heat dissipation, to ensure stable operation of products:
  •  High reliability design, supporting traditional STP/RSTP layer 2 link protection technology;
  •  Supports manual aggregation and dynamic aggregation, which increases link bandwidth, improves link reliability, and implements load balancing and link backup.
  •  Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH.
  •  Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel. Supports file upload and download management through TFTP.

Product Specifications
Hardware Specification
ModelPM112GM V1
StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3z, IEEE 802.3x, IEEE 802.1X, IEEE 802.1q , IEEE 802.1p, IEEE 802.1d , IEEE 802.1w, IEEE 802.3ad

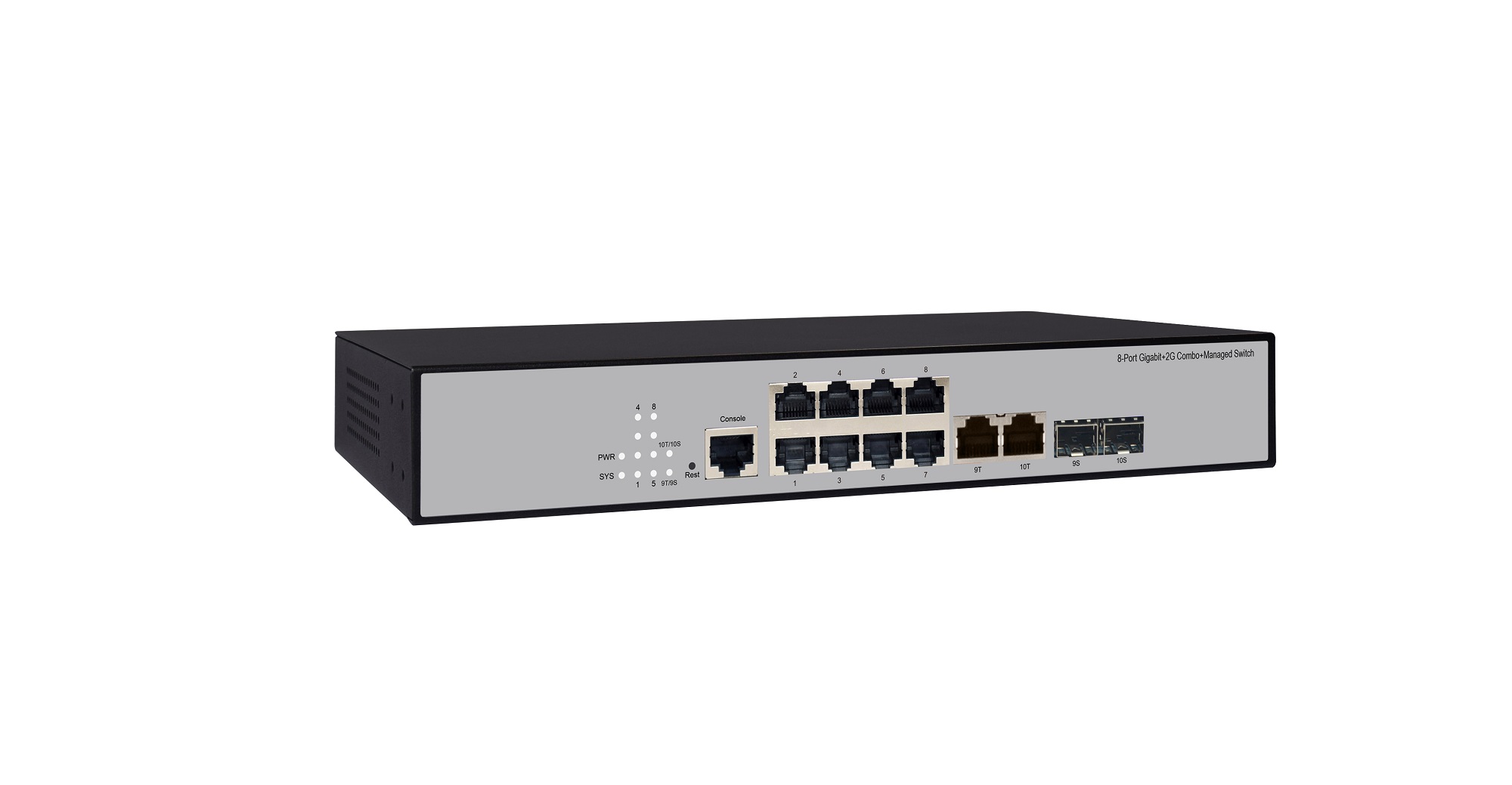

Interface8*10/100/1000Mbps RJ45 Ports
2*10/100/1000Mbps Combo ports
1*Console Port
IndicatorPWR,  LNK/ACT
Network media10BASE-T:    UTP category 3, 4, 5 cable(≤100m)
100BASE-TX:  UTP category 5, 5e cable(≤100m)
1000BASE-T:  UTP category 5e, 5 cable(≤100m)
1000BASE-X:  MMF, SMF
MAC Address Table8K, Auto-learning, Auto-aging
Jumbo frame10000Bytes
Packet buffer4.1Mbit
Transfer ModeStore-and-forward
Packet Forward Speed14.88Mpps
Switching Capacity24Gbps
Dimensions(L*W*H)280*180*44mm
  Power supply130W
Green energy savingIEEE 802.3az

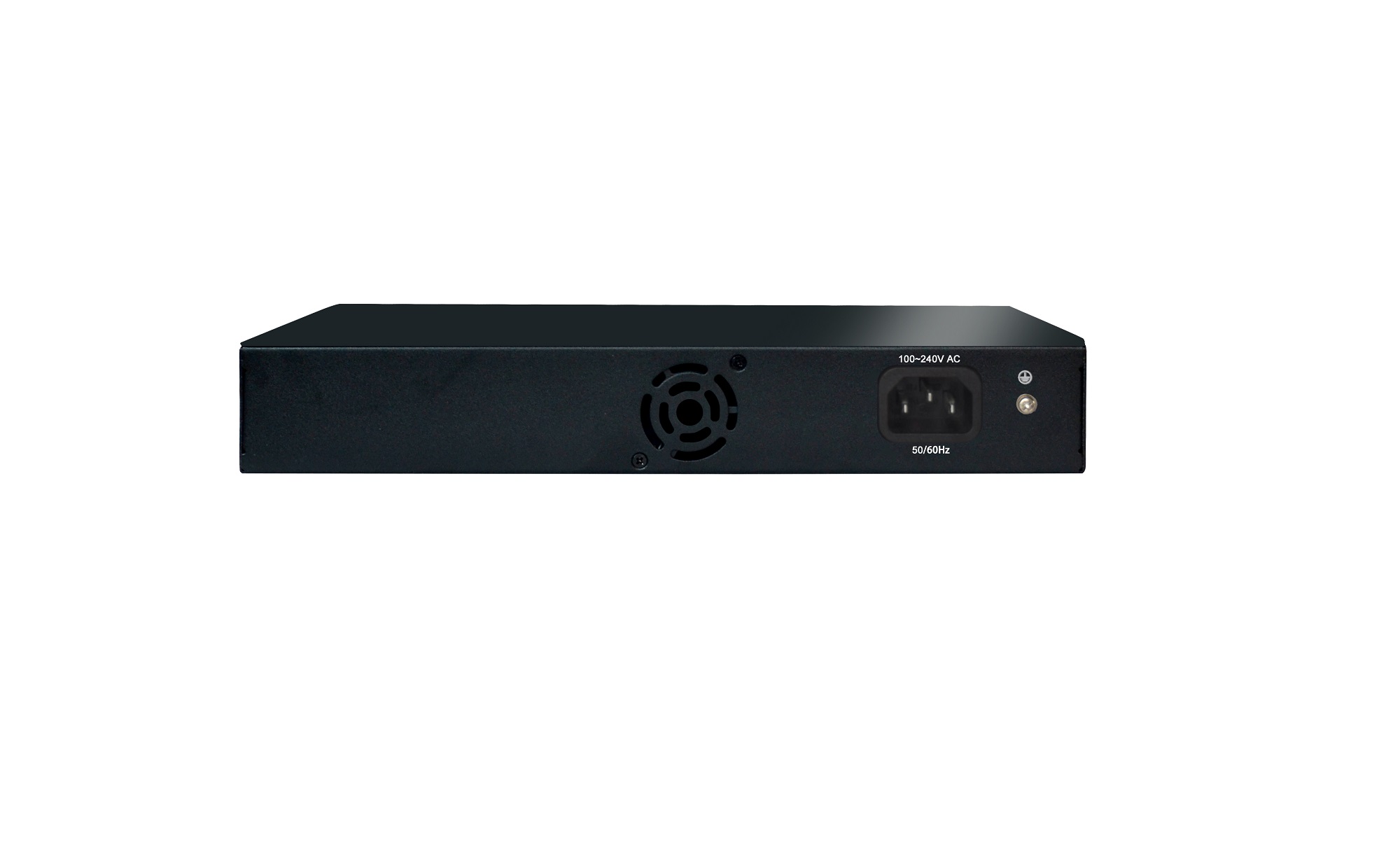

Input Power SupplyAC 100-240V 50/60Hz
Operating Temperature0°C ~ +40°C
Storage Temperature-40 °C ~ +70 °C
Operating Humidity10% ~ +90%  non-condensing
Storage Humidity5% ~ +90%  non-condensing
Surge ProtectionDifferential mode ±2KV  Common mode ±4KV
MTBF>50000 hours
Electrostatic standardContact±6KV, Air±8KV

Software Specification
Spanning TreeIEEE 802.1D -STP
IEEE 802.1w -RSTP
IEEE 802.1s -MSTP
BPDU Guard
STP Root Guard
Loop Detection
VLANManagement VLAN
Private VLAN
Voice VLAN
Surveillance-VLAN
Q-in-Q (Double Tag)
802.1v Protocol VLAN
MAC-Based  VLAN
PortLACP
Static
EEE
Jumbo Frame
Error-Disable
IGMP SnoopingIGMP Snooping v1/v2/v3
MLD Snooping v1/v2
MVR
L3Static Route
Static ARP
DHCP Server
Qos FeaturesHardware Queues
Class of ServicePort Based
802.1p
CoS
DSCP
IP Precedence
TCP/UDP (IPv4/IPv6)
Rate LimitingIngress
Egress
Priority Queue SchedulingWRR
Strict Priority
DSCP & CS
IPv4 QoS (QCEs)
IPv6 QoS (QCEs)
SecurityPort Security
Port Isolation
IEEE802.1x AAA
ACLsL2+/L3/L4
IPv6 ACL
Management Access List
Management ACL/Management ACE
IP Source Guard (IP-MAC-Port-VALN Binding)
IP Source Guard (IP-MAC-Port Binding)
Dynamic ARP Inspection
Storm Control
RADIUS/TACACS+
RADIUS Authentication (RFC2138)
DDoS Prevention
HTTPs and SSL (Secured Web)
SSH v1.5/v2.0 (Secured Telnet Session)
DHCP Snooping
DHCP Relay
ManagementSNMP (v1, v2c, v3)
RMON ( 1, 2, 3 & 9 groups)
Software Upgrade
Configuration Export/Import
DHCPClient
Option 82
Option 66
Option 67
Event/Error LogSyslog
Management Access FilteringConsole
SNMP
HTTP/HTTPS
Telnet
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED
UDLD
DNS Client
Traceroute
Ping
Cable Test
DDMI
NTP/ SNTP (RFC2030)
IPv6IPv6/IPv4
IPv6 Web/SSL
IPv6 SNTP
IPv6 Telnet/SSH
IPv6 Ping/Traceroute
IPv6 TFTP
IPv6 RADIUS/TACACS+
IPv6 SNMP
ONVIFONVIF Deteciton
ONVIF Server(NLM)


Ordering information
ModelProduct information
PM112GM V18GE+2G Combo+1Console Ethernet Managed Switch
