Product Overview
The PoE Injector PM9501TIN V2 fully complies with IEEE 802.3af/at/bt standard, and can work with all IEEE 802.3af /at /bt PoE compliant PD(Powered Devices) or PoE Receiver Adapters or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
This Injector has Legacy bt, bt, UPoE three levels can be toggle Switch.high-power power supply, which mainly solves the problems of high deployment cost, long construction period, unstable power supply, difficult operation and maintenance management, low safety factor caused by the power supply system that needs to be deployed separately for high-power terminal power supply.It can be widely used in the new and reconstruction scenes of weak current to meet the power supply demand of high-power terminal in monitoring, access control, information release, parking lot, DDC and other systems.
Product Features
- Complies with IEEE802.3af/at/bt Standard;
- Use 4 pairs of power supply, and output power more;
- Auto detect power device;
- Support PoE power up to 95W ;
- Remote power and Data feeding up to 100m;
- 10 Gigabit Internet port;
- built-in Power，Plug-and-play, requires no configuration;
- Intelligent protection and power supply;
- Working temperature： 0 ℃ to 40 ℃;

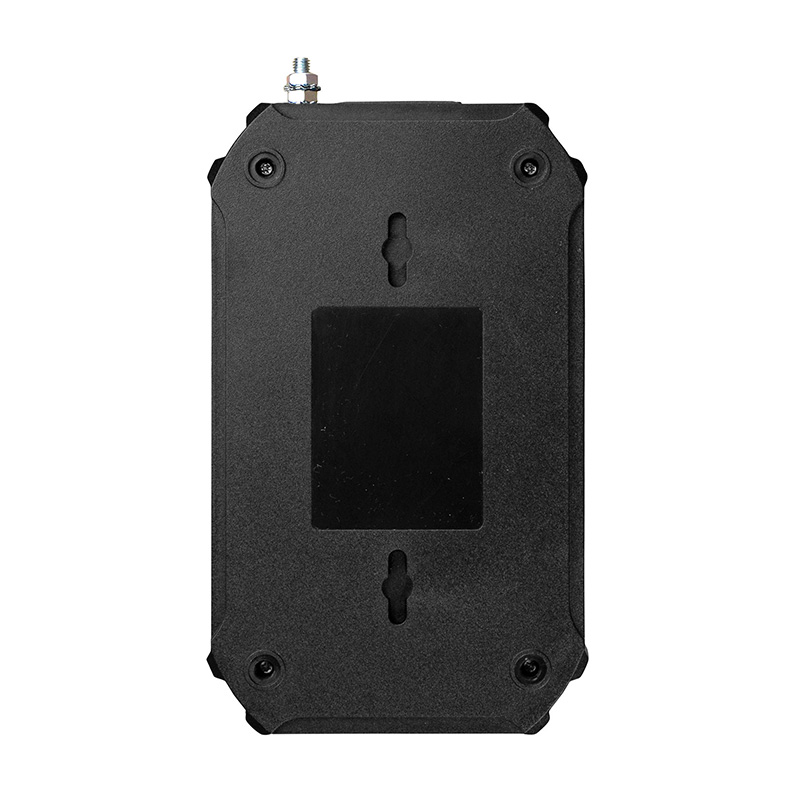

- Up to 4 installation methods;
- This Switch has Legacy bt, bt, UPoE three levels can be toggle Switch;
Product SpecificationsModel | PM9501TIN V2 |
Port | Data in: 1x10/100/1000/10000Mbps RJ45 Port PoE Out: 1x10/100/1000/10000Mbps RJ45 Port |
PoE Standard | IEEE802.3af/at/bt |
PSE Power on RJ-45 | 1/2(-),3/6(+) 4/5(+),7/8(-) |
Key function | Legacy bt/bt/UPoE |
PoE Power Output | 54V DC, 95W Max |
Power supply | 100W |
Input Power Supply | AC 100-240V 50/60Hz |
Operation Temperature | 0℃ ~ 40℃ |
Storage Temperature | -40℃ ~ 70℃ |
Operation Humidity | 10%~90% RH non-condensing |
Storage Humidity | 5%~90% RH non-condensing |
Dimensions(L*W*H) | 172 *100*40mm |

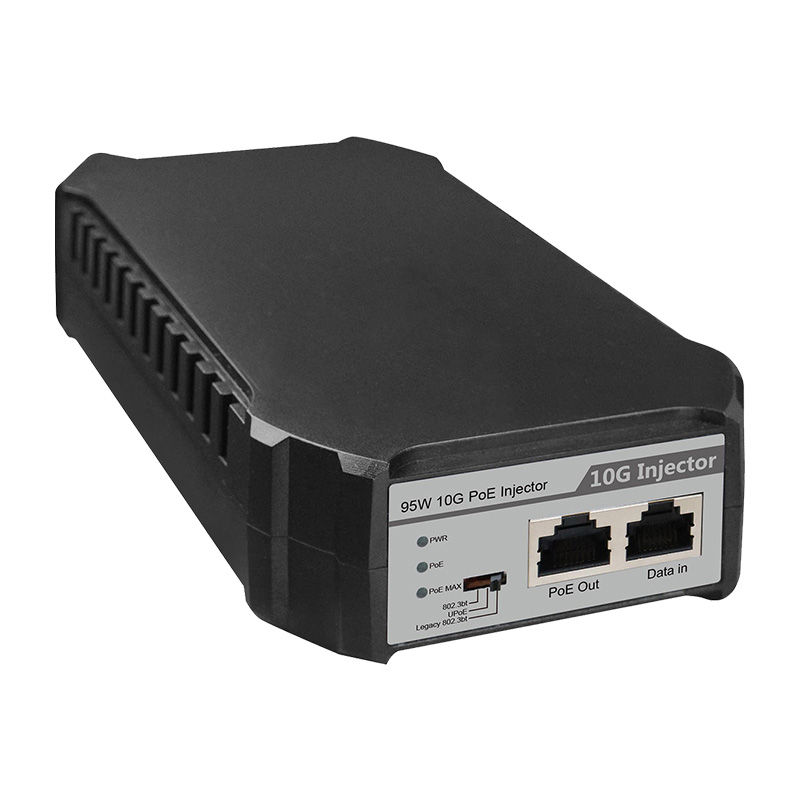

LED Indicator | PWR(Green) , PoE（Green）,PoE Max（Green） |
Network Media(Cable) | 10BASE-T: UTP category 3, 5 cable (≤100m)
100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable(≤100m) 10000BASE-T: UTP category 6,6e cable(≤100m) |
Surge Protection | Ethernet: Difference Mode：±1KV , Common mode：±2KV
Power: Difference Mode：±4KV , Common mode：±6KV |
MTBF | >50000 hours |
Electrostatic standard | Contact ±6KV, Air ±8KV |
Ordering Information
Model | Product Information |
PM9501TIN V2 | 95W 10G PoE Injector |
