Product Overview PM124GMC V1 is a Web Smart Switch independently developed by UNIPOE, with 24*10/100/1000Mbps adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX automatic turn-over and wire-speed forwarding, which is easy to use and can flexibly expand home and office networks without limitation of power line layout, easy to manage and maintain, and can meet the requirements of different scenarios.
Product Features
Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control, and storm suppression
Supports port traffic statistics, port monitoring, cable detection, and loopback protection
Panel indicators monitor working status and assist in fault analysis;
Intelligent identification of wire speed forwarding;
Data exchange adopts store-and-forward mode;
Operating temperature: 0°C ~ 40 °C;
Product Specifications Hardware Specification
Software Specification
Function menu
Functional description
Added
Basic
Login authentication and logout
Bilingual (Chinese-English Switching)
Port panel (dual color rate differentiator)
1000 m green
100 m / 10 m orange yellow
System configuration
Equipment information
Device name
Device contact
Location of equipment
IP Address Setting
Static
DHCP Client
Support the DNS
Web configuration
Web Timeout Setting
User management
The password must contain at least six letters and digits
PM124GMC V1 is a Web Smart Switch independently developed by UNIPOE, with 24*10/100/1000Mbps adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX automatic turn-over and wire-speed forwarding, which is easy to use and can flexibly expand home and office networks without limitation of power line layout, easy to manage and maintain, and can meet the requirements of different scenarios.

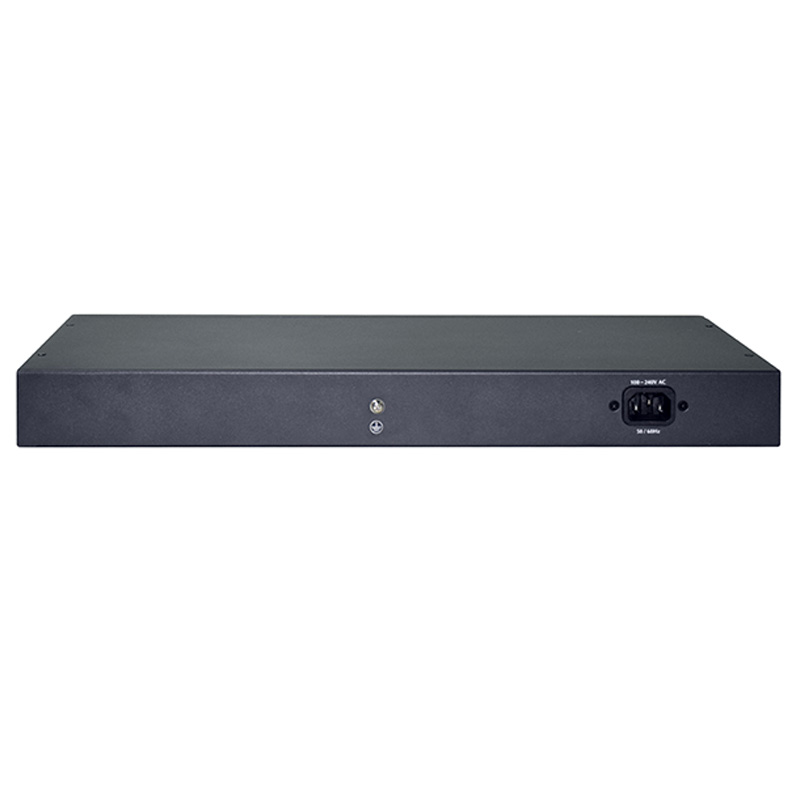

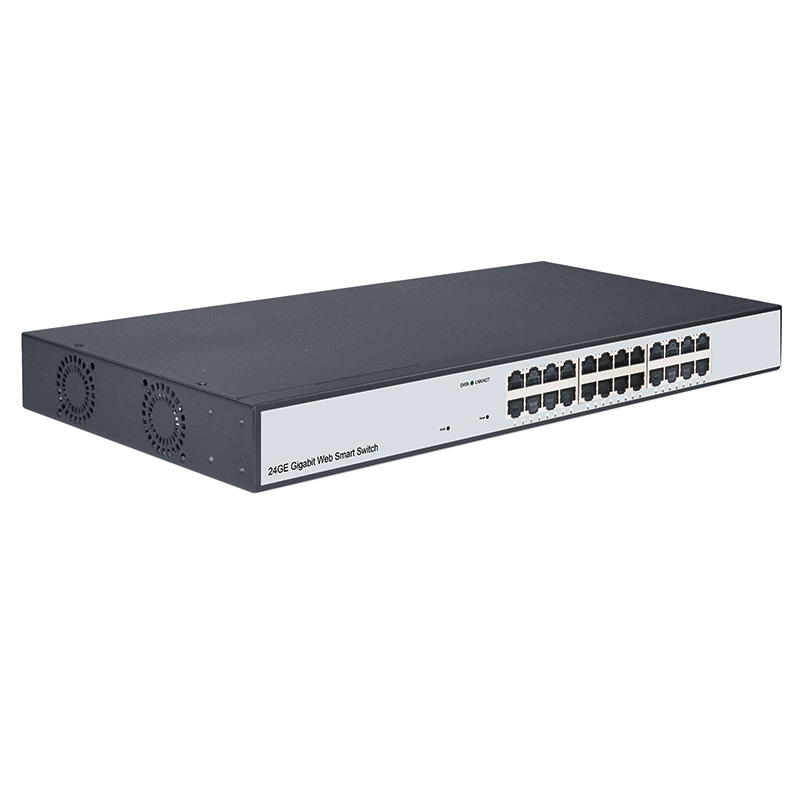

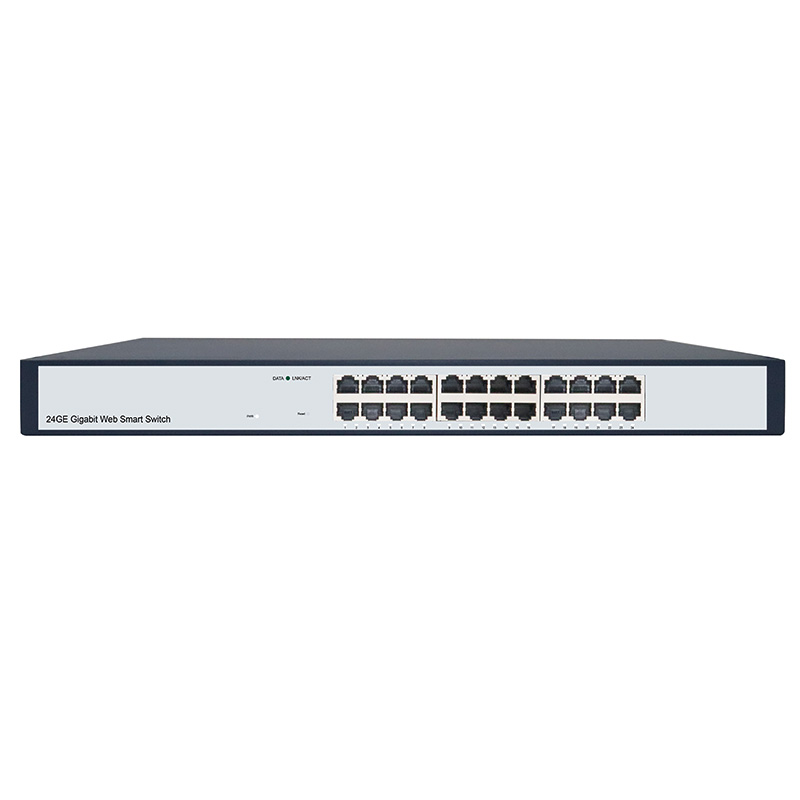

24-Port Gigabit Web Smart Switch
PM124GMC V1
PM124GMC V1 is a Web Smart Switch independently developed by UNIPOE, with 24*10/100/1000Mbps adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX automatic turn-over and wire-speed forwarding, which is easy to use and can flexibly expand home and office networks without limitation of power line layout, easy to manage and maintain, and can meet the requirements of different scenarios.
